Why Do so Many Foundries Use Investment Casting?

Investment casting has become the preferred manufacturing method for foundries worldwide due to its unmatched ability to produce complex, high-precision metal components with exceptional surface finishes. This ancient process, also known as the lost wax method, allows foundries to achieve tight dimensional tolerances while working with virtually any metal alloy. The precision and repeatability of investment casting enable manufacturers to meet stringent quality requirements across aerospace, medical device, automotive, and industrial applications, making it an indispensable solution for modern foundry operations.

Understanding Investment Casting and Its Core Advantages

Investment casting is an advanced way to make things that turns centuries-old artistry into modern, precise manufacturing. Using this method, foundries can make complicated metal parts that would be impossible or too expensive to make with standard casting methods.

The Investment Casting Process Explained

The first step in the lost wax casting method is to make an exact wax pattern that matches the end shape of the part. These designs are made by skilled workers either injecting molten wax into metal dies or using 3D printing. Then, several wax models are put together on a central tube system to make what foundries call a "tree" shape.

The put-together wax tree goes through a process of making a ceramic shell by being dipped in ceramic slurry several times and then being covered with fine refractory sand. This makes many layers of clay that come together to make a strong mold that can handle pouring metal at high temperatures. In the dewaxing step, the wax designs are melted out in an autoclave, leaving behind precise clay holes.

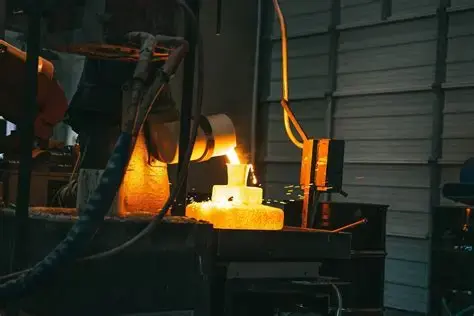

Temperatures are carefully controlled during molten metal drilling to make sure that all holes are filled and the metal has the best mechanical qualities. This method works well for casting many metals, such as stainless steel, carbon steel, aluminum, and superalloys. In the last step, called "knockout," the ceramic shell is removed by shaking or water blasting. This leaves behind net-shaped or nearly net-shaped parts that need only a few finishing operations.

Key Technical Advantages for Modern Manufacturing

The precision casting method has many great advantages that help solve important problems in industry. Dimensional accuracy is usually within ±0.005 inches (±0.13mm) for most features, which is much better than options like sand casting. The quality of the surface finish is at least 125 micro-inches RMS, which means that extra cutting is often not needed.

When you use investment casting, you can make parts with complicated internal shapes, like undercuts, thin walls, and complicated cooling tunnels, that would normally need expensive cutting. Without splitting lines and flash, there is no need for time-consuming finishing work. This also makes sure that the quality of the parts is the same across production runs.

Why Foundries Prefer Investment Casting: Problem-Solving Perspective

Traditional casting methods have a lot of problems that affect both the foundry's ability to make money and the happiness of its customers. Investment casting solves these problems in a planned way because of the way it works.

Overcoming Traditional Casting Limitations

Dimensional uniformity is often a problem in sand casting because the sand grains aren't all the same size, and the mold bends when metal pressure is applied. Because of these problems, parts need a lot of cutting to meet final requirements, which raises production costs and wait times overall.

When turbulent metal flow catches gases during mold filling, it leads to porosity flaws in traditional casting methods. These problems are kept to a minimum in the investment casting process by using controlled filling methods and better mold permeability properties. When proper process controls are put in place, foundries report defect rates below 2%. In contrast, sand casting operations usually have defect rates between 8 and 12%.

Die casting has some problems, like not being able to use all kinds of alloys and having trouble making thick pieces without internal flaws. Through controlled solidification patterns, investment casting can be used with almost any metal that can be cast. Even in heavy parts, the alloy stays very strong on the inside.

Enhanced Production Flexibility and Quality Control

Modern foundries are under more and more pressure to make smaller batches while keeping prices low. Investment casting works well in this setting because the tools are less expensive than those used for permanent mold methods. Wax injection dies are easier to change than steel die casting tools, which lets you make changes to the design without having to pay a lot of money for new tools.

The process reliability of ceramic mold systems makes quality control easier to plan for when you use investment casting. Temperature differences stay the same all the way through the mold, which helps keep the grain structure and mechanical features regular. Statistical process control data show that investment casting keeps property distributions tighter than other casting methods.

Comparing Investment Casting with Other Manufacturing Processes

To choose the best manufacturing method, you need to carefully consider a lot of things, such as cost, wait time, material choices, and the complexity of the geometry. Investment casting is in a special place in this choice grid.

Investment Casting vs. Sand Casting Analysis

For very big parts, sand casting is cheaper per piece, but it's hard to get the right size and finish on the surface. For medium to small parts that are made in middling quantities, investment casting offers better accuracy and end quality at a lower cost.

When comparing lead times, sand casting is better for simple shapes, but investment casting is better when secondary cutting is needed. Precision casting can make shapes that are very close to net shapes, which often means that total production cycles are shorter, even though the casting process takes longer at first.

Investment casting is the best way to make things because the materials are flexible. This is especially true for high-performance metals that are hard to machine. Superalloys, titanium, and some types of stainless steel are easier to cast than to machine, which is why investment casting is the best way to make things for medical and aircraft uses.

Comparison with Machining and Additive Manufacturing

While CNC machining is very accurate in terms of size, it becomes too expensive for complex interior features or rare materials. In machining, materials are usually only used 20 to 30 percent of the time. But in investment casting, where materials are used 85 to 90 percent of the time, near-net-shape production makes this possible.

Additive manufacturing gives you about the same amount of physical freedom as investment casting, but you can't choose the material, finish the surface, or make as many things at once. Investment casting is a tried-and-true method of making metals with known qualities, which is important for uses that need to follow rules or get performance certification.

When making more than 50 to 100 pieces a year, based on how complicated the part is, investment casting is the most cost-effective way to do it. Costs for machining go up linearly with production volume, but costs for casting go down a lot as production volume goes up because tools wear out over time.

Practical Considerations When Procuring Investment Casting Services

To successfully buy precision casting services, you need to know how to evaluate suppliers and what they can do. Foundry partners in modern supply chains need to be able to consistently perform high-quality work while keeping costs and lead times under control.

Supplier Evaluation and Certification Requirements

For real investment casting suppliers, ISO 9001:2015 certification is the bare requirement for quality control. AS9100 certification is needed for aerospace uses, while ISO 13485 compliance is needed for medical device makers. These standards make sure that providers keep written records of their quality control, traceability, and improvement methods all the time.

Different sources have very different foundry skills. The equipment's capacity, the knowledge of the alloys used, the availability of secondary activities, and the ability to provide technical help should all be taken into account. Modern foundries offer services for design improvement that can lower costs and make the casting easier and better at its job.

Cost management and supply chain risk management are both affected by geography. Chinese foundries often offer competitive prices and higher quality standards. On the other hand, European and North American sources are closer and have a history of following the rules. To find a balance between these factors, you need to look at the total cost of ownership carefully instead of just comparing piece prices.

Understanding Pricing Models and Lead Time Factors

The prices for investment casting usually include the cost of the tools, the cost of setting up the casting, and the price per piece. Tooling costs can be anywhere from $2,000 to $15,000, based on the size and complexity of the part. For most commercial uses, the cost is between $3,000 and $8,000. The prices of setup include putting together patterns, making shells, and testing the process.

Lead times depend on the supply of materials, the need for tools, and the foundry's schedule. New molding projects usually take between 4 and 6 weeks to finish, while production runs using current tools can be finished in 2 to 3 weeks. It is possible to place an order quickly, but the prices are generally 25–50% higher than normal.

Depending on the size and complexity of the part, volume breaks happen at different levels. Most foundries offer better prices when you buy 25, 50, 100, or 500 pieces at a time. Annual blanket orders with planned drops get you the best prices and make sure that capacity is used during times of high demand.

Technical Guidelines and Best Practices for Successful Investment Casting

For the best results, designers, buying teams, and manufacturing partners must work together. Understanding design issues and the limits of the process helps people make better decisions and get better results.

Design Optimization for Investment Casting

Minimum wall thickness guidelines call for sections of 0.040 to 0.060 inches (1.0 to 1.5 mm), based on the type of metal and the size of the casting. Different cooling rates can lead to stress clusters or dimensional warping if the wall thickness is not the same. Moving from thick to thin parts gradually makes the metal run better and lowers the stress inside it.

Draft angles between 1-2 degrees make it easier to get rid of patterns and improve the quality of the surface finish. Instead of sharp edges, you should use large radii that help the metal move smoothly and spread out stress. Core placement and removal methods need to be carefully thought out for internal features.

Tolerance standards should be based on what is actually possible, without being too precise, which would add to the cost. Tolerances of ±0.005-0.010 inches (±0.13-0.25mm) are standard and easy to meet. Tighter tolerances may need extra work or higher prices.

Quality Assurance and Defect Prevention

Porosity, inclusions, physical changes, and surface imperfections are all common flaws. The right design of gates keeps the metal at the right temperature during the casting process and prevents turbulence during mold filling. Simulation software is used by foundries to make sure that these factors are just right before production starts.

When certain mechanical qualities or chemical composition limits are needed, material approval is very important. The chemistry and properties of a material are written down in certified mill test records. Other tests that may be done include tensile testing, hardness proof, or non-destructive examination.

During the quote process, inspection plans should be made to make sure that the right quality control measures are put in place. To avoid confusion or poor quality control, it is important to make sure that everyone knows what needs to be done for dimensional checking, visual examination, and specialized testing.

Conclusion

Foundries are becoming more and more interested in investment casting because it offers a unique mix of accuracy, material freedom, and physical flexibility. Traditional casting methods have some major flaws that this process fixes while also offering cost-effective solutions for complicated manufacturing needs. As businesses need more complex parts with better surface finishes and tighter standards, investment casting technology becomes a must-have skill for foundries that want to stay competitive. This process has been used successfully in many fields, including aerospace, medicine, cars, and industry. It is reliable and flexible, which makes it very useful for modern manufacturing supply lines.

FAQWhat materials can be used in investment casting?

Investment casting can be used with almost any metal combination that can be melted and poured, such as titanium, superalloys, stainless steels, carbon steels, and unique materials. The clay mold system can handle temperatures of up to 3000°F (1650°C), which lets it make materials with high melting points that are hard to work with in other ways.

How does investment casting compare cost-wise to other processes?

Most of the time, investment casting costs more per piece than sand casting but less than a lot of milling. Depending on how complicated the part is, the break-even point is usually between 50 and 100 pieces per year. Higher starting costs for tools are balanced out by lower costs for secondary processes and better rates of material utilization.

What tolerances can investment casting achieve?

Standard deviations vary with the size and shape of the casting and run from ±0.005 to ±0.010 inches (±0.13 to ±0.25mm). Tighter standards are possible, but they might need extra work or cost more. A surface finish of at least 125 micro-inches RMS is often reached.

How long does the investment casting process take?

New tasks that need tools usually take between 4 and 6 weeks to finish. Using current tools, production runs can be finished in two to three weeks. Lead times depend on how complicated the part is, what material is chosen, and how the factory needs to schedule its work.

Partner with Welong for Your Investment Casting Needs

Welong is a reliable investment casting source that has worked with top companies in the aircraft, automotive, oil drilling, and medical device industries for more than 20 years. Our plant is ISO 9001:2015 certified and makes unique metal parts from your drawings and samples. Our engineering team uses AutoCAD, Pro-Engineering, and SolidWorks to help you improve your designs. We know how important quality, dependability, and on-time delivery are because we've shipped precision castings to more than 100 customers in the UK, Germany, France, the USA, Canada, and other countries around the world. Email our team at info@welongpost.com to talk about your investment casting needs and find out how our proven supply chain knowledge can help you lower your sourcing risks and keep quality standards high.
