Cold Forging Parts: Applications, Benefits, and Manufacturing Process

Cold forging is a metal forming process in which a metal blank is shaped at or near room temperature by applying controlled compressive force through dies and tooling. Unlike machining, which removes material to create the final geometry, cold forging redistributes material into the required shape. This makes the process particularly suitable for high-volume production of components that require repeatable dimensions, good material utilization, and reliable mechanical performance. For manufacturers, choosing cold forging parts is not simply a matter of selecting a lower-cost production method. The decision depends on material, component geometry, production volume, dimensional requirements, tooling investment, and whether secondary operations are required. When these factors are properly evaluated, cold forging can provide an efficient route for producing fasteners, shafts, pins, bushings, gears, fittings, electrical components, and other precision metal parts.

What Are Cold Forging Parts?

Cold forged parts are metal parts manufactured by deforming a preformed billet, slug or wire section at room temperature or under conditions where the material remains well below its recrystallisation temperature. Operations such as upsetting, forward extrusion, backward extrusion, heading, or combinations of these forming methods force material into the die cavity.

The procedure varies from traditional machining in that the material is not removed so that it can reach the desired shape. Instead, it flows under pressure. This can lead to better material utilisation and, depending on the material and the manner of deformation, result in a favourable grain flow and work-hardened surface or zones.

Typical instances are:

• Automotive fasteners and pins

• Shafts and sleeves

• Bushings and spacers

• Gears and splined parts

• Rivets and headed components

• Electrical Terminals and Electrical Connectors

• Hydraulic and pneumatic connectors

• Small structural and gearbox parts

• Aluminium heat sinks and thermal management parts

Much of the component appropriateness is related to its geometry. Cold forging is often best suited to pieces which are efficiently formed by controlled material flow and which can be produced repeatedly by stable tooling.

How Does the Cold Forging Process Works?

Cold-forging parts are produced by a process that is more than just pressing a piece of metal into a die. The last component is influenced by material preparation, tooling design, lubrication, forming sequence, inspection and finishing.

1. Material Selection and Billet Preparation

The first stage is selecting the material with the needed ductility and forming properties for the desired deformation. Manufacturers may deal with carbon steels, alloy steels, stainless steels, aluminium, copper and other suitable non-ferrous alloys depending on the application.

Incoming material can be in the form of wire, bar, rod, or cut blanks. The stock is then chopped to specified lengths or weights so each forming cycle receives a consistent amount of material.

Material traceability is equally vital for industrial applications. Depending on the customer's request, chemical composition, mechanical qualities, heat number and related material certificate documentation may be required.

2. Surface Preparation and Lubrication

Cold forging causes very high friction between the workpiece and tools; therefore, surface preparation and lubrication are important.

The blank may be cleaned, coated, phosphated or otherwise surface prepared before forming, depending on the material and method. Lubrication minimises the amount of friction, limits tool wear and helps the metal flow more consistently through the die.

Poor lubrication can lead to such problems as galling, surface damage, excessive forming force and premature die wear. Therefore lubrication should be considered as part of process engineering and not as a minor manufacturing item.

3. Die and Tooling Design

Tooling controls the flow of material in the shaping process. Engineers will examine the shape of the part to determine whether one forming process will be sufficient or whether there will have to be several phases.

Operations such as the following may gradually alter the initial blank through a multi-step process:

• Heading / upsetting

• Extrusion, forward

• Extrusion in reverse

• Reduce

• Piercings

• Sizing or calibration

You want to spread the deformation out rather than trying to cram too much material into one process.

Tool design must also include forming loads, die strength, material flow, lubrication, estimated production volume, and tool life. The initial investment in tooling for high-volume programmes can be substantial, but this expense can be spread over a large number of pieces.

4. Cold Forming

The prepared blank is inserted into the tooling and subjected to strong compressive force. The material is then plastically flowing into the die cavity and gradually taking up the desired geometry.

Since the material is produced without typical hot-forging temperatures, it is not necessary to heat every blank to a high forging temperature. This may simplify certain production routes and lessen temperature effects on dimensional stability.

Cold forging parts can, however, generate large forming forces. Thus, the chosen equipment and tooling should be appropriate to the material, part geometry, deformation ratio and production needs.

5. Intermediate and Secondary Operations

Not all components can be fully formed using cold forging. Some other operations may be required depending on the design.

These could include:

• Drilling

• Turning,

• Grinding,

• Deburring

• Threading

• Heat treat

• Surface coating

• Plating

• Final sizing

The benefit of cold forging is often that it minimises the quantity of material that must be removed later, rather than eliminating machining in every case.

A well-designed near-net-shape method can thus combine cold forming and little secondary machining to provide the desired final dimensions and functional attributes.

6. Inspection and Quality Control

After shaping, the pieces are finished and checked according to the customer's drawings and technical specifications.

Typical inspection activities could include:

• Dimensional testing

• Visual Observation

• Surface defect inspection

• Testing Hardness

• Chemical composition analyses

• Mechanical testing as needed

• Thread gauge or functional gauge checking

• Non-destructive examination of relevant members

For manufacturing projects with stringent dimensional constraints, process capabilities and statistical monitoring can also help to discover dimensional drift before it causes a large batch to be affected.

Why Manufacturers Choose Cold Forging Parts?

Efficient Material Utilisation

One of the biggest benefits of cold forging is the efficient utilisation of raw material. Machining is the removal of material from a bigger stock to make the final part, whereas cold forging shapes most of the available material into the final geometry.

This difference might be very relevant when you are manufacturing thousands or millions of components. Even a little savings on material waste per part can make a big difference in the entire cost of production.

Material usage should be considered on a total process basis, however. Flash, trimming, rejected parts, secondary machining and tooling requirements all affect the real material cost.

Work Hardening and Mechanical Performance

Many metals can be work-hardened by cold deformation to increase strength and hardness. The degree of the effect is dependent on the material, the amount of deformation and the conditions of forming.

Controlled material flow can also contribute to a continuous grain structure in appropriate forged geometries. This can be useful for components subjected to repetitive mechanical loading.

Cold forging, however, should not be automatically defined as producing better mechanical qualities in all applications. The ultimate performance of the component depends on material choice, degree of deformation, heat treatment, geometry and future processing.

Repeatable Dimensions

A properly developed cold forging technique can generate very repeatable components in large production runs.

Dimensional consistency is achieved by manufacturers through controlled volume of billet, precision tooling, steady forming settings and inspection methods.

This repeatability can be a big advantage for components that need to fit into assemblies with tight dimensional variation.

Reduced Machining Requirements

Near-net-shape shaping can minimise the machining required after forging.

An appropriate design could, for instance, allow a shaft, pin, sleeve or other component to be produced near to its final geometry before just chosen surfaces are machined.

This method may reduce the production routes and the usage of cutting tools. However, the actual machining requirement should always be ascertained from the component drawing and not presumed from the fact that the part is cold forged.

High Production Efficiency

Cold forging is particularly attractive for medium- and high-volume production because automated forming equipment can produce large numbers of repeatable components.

Once the tooling and process parameters have been validated, production can be organised around stable cycle times and controlled material flow.

This makes the process especially useful for automotive, industrial equipment, electronics, fastening, and other markets where component demand is relatively high and consistency is important.

Where Are Cold Forging Parts Used?

Automotive Components

Automotive manufacturing is one of the major application areas for cold-formed components. The process is suitable for producing numerous small and medium-sized parts that require repeatable dimensions and efficient material utilisation.

Examples can include:

• Fasteners

• Pins

• Bushings

• Shafts

• Sleeves

• Gear-related components

• Steering and suspension hardware

• Transmission components

• Electrical terminals

For automotive applications, engineers typically evaluate fatigue loading, dimensional stability, corrosion requirements, material grade, and production volume before selecting cold forging.

Industrial Machinery

Industrial equipment uses a broad range of precision metal components, including shafts, spacers, bushings, fittings, pins, and drive components.

Cold forging can be useful when these parts must be produced consistently over long production runs. Components can then undergo machining or surface treatment where the application requires additional dimensional or functional characteristics.

The final process should be selected according to load, wear, geometry, operating environment, and required service life rather than simply choosing the lowest-cost forming method.

Electrical and Electronic Components

Cold forming is also suitable for certain electrical and electronic components, particularly when conductive metals such as copper or aluminium are required.

Examples include:

• Terminals

• Connectors

• Contact components

• Busbar-related parts

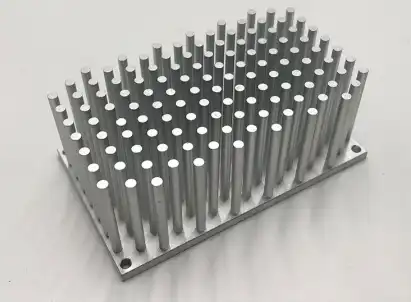

• Heat sinks

• Small conductive fittings

Welong currently highlights cold forging for customised non-ferrous metal heat sinks, including high-density fin structures designed for thermal management applications.

Fasteners and Hardware

Fasteners are one of the most established applications for cold forming because products such as bolts, screws, rivets, pins, and similar cold forging parts can be produced efficiently in large quantities.

The process can form heads and shank features with high repeatability while minimising unnecessary material removal.

Depending on the product, subsequent operations such as thread rolling, heat treatment, plating, or coating may be incorporated into the overall production route.

Hydraulic and Pneumatic Components

Hydraulic and pneumatic systems require components with controlled dimensions and reliable sealing interfaces.

Cold forging may be considered for suitable fittings, sleeves, pins, valve-related components, and other small precision parts.

For these applications, manufacturers must pay particular attention to dimensional tolerances, surface condition, material compatibility, pressure requirements, and any subsequent machining or finishing operations.

Which Materials Can Be Used for Cold Forging?

The choice of material has a direct impact on formability, required force, tooling life, surface quality, and final mechanical performance.

Carbon and Alloy Steels

Carbon and alloy steels are widely used for cold-formed components that require strength and wear resistance.

The appropriate grade depends on the application and forming ratio. Some grades may require specific surface preparation or intermediate processing to achieve reliable forming results.

Stainless Steel

Stainless steel can be used for cold forming when corrosion resistance is important. However, different stainless grades behave differently during deformation.

Some grades exhibit significant work hardening, which can increase forming forces and affect tooling requirements. Process design therefore needs to consider the selected grade rather than treating stainless steel as a single material category.

Aluminium and Copper Alloys

Aluminium and copper alloys are attractive for applications where low weight, electrical conductivity, thermal conductivity, or corrosion resistance is important.

Their forming behaviour differs substantially from that of steel. Tooling, lubrication, deformation level, and surface preparation should therefore be adapted to the specific alloy.

What Are the Limitations of Cold Forging?

Cold forging is not the ideal solution for every component.

High Initial Tooling Investment

Precision dies and forming tools can require significant upfront investment. For low-volume projects, this cost may outweigh the per-part savings achieved during production.

Cold forging therefore becomes more economically attractive as production volume increases.

Geometry Constraints

Complex or highly undercut geometries may be difficult to produce directly through cold forming.

In such cases, a manufacturer may use multiple forming stages or combine forging with machining and other processes.

High Forming Loads

Because the material is deformed without being heated to conventional hot-forging temperatures, forming forces can be high.

This places demands on the press, dies, punches, fixtures, and overall tooling system for cold forging parts.

Work Hardening

Work hardening can be beneficial because it may increase strength, but excessive deformation can also make further forming more difficult.

For complex parts, engineers must carefully plan the sequence of operations to avoid cracking, dimensional instability, or excessive forming loads.

How to Choose a Cold Forging Supplier?

Selecting the right supplier is as important as selecting the forming process itself. Buyers should evaluate several factors before approving a production source.

Engineering and Tooling Capability

A capable supplier should be able to review drawings, assess material flow, recommend an appropriate forming sequence, and identify potential manufacturing risks before tooling begins.

Early engineering review can prevent expensive die modifications later.

Quality Control and Traceability

Ask how the supplier controls raw materials, tooling, forming parameters, dimensional inspection, and final release.

For industrial components, documentation such as material certificates, inspection reports, dimensional records, and certificates of conformity may be required.

Secondary Manufacturing Capability

A supplier that can coordinate forging, machining, heat treatment, finishing, inspection, and packaging can simplify the supply chain.

This is particularly useful when the final component requires several manufacturing stages rather than cold forming alone.

Production Volume and Delivery Capacity

The supplier should have equipment and production capacity appropriate for the expected annual volume.

Buyers should also evaluate lead times for tooling, prototype production, sample approval, mass production, inspection, and delivery.

Conclusion

If a component is required to have reproducible dimensions, great production efficiency, optimal material utilisation and appropriate mechanical performance, cold forging parts might be an effective manufacturing solution. The procedure is especially helpful when dealing with high-volume components such as fasteners, pins, shafts, bushings, connectors, fittings and other precision metal parts.

But cold forging should not be viewed as a cure-all for machining, hot forging, casting or other manufacturing processes. The optimal way to make it is determined by material, geometry, tolerance, volume, tooling investment, and end performance requirements. A well engineered process will use cold forging in conjunction with machining, heat treating, surface finishing and inspection to produce a finished part to the customer’s specification.

Shaanxi Welong Int’l Supply Chain Mgt Co., Ltd. was established in 2001, it is a professional manufacturer of bespoke metal parts for industrial application. Welong currently has the capability in forging, casting and machining, supported by its ISO 9001:2015 certified quality system. Its technical and manufacturing capabilities can support customers from process assessment and production planning to quality assurance and delivery.

For projects using cold forging parts, presenting a thorough drawing, material specification, projected annual volume, tolerance requirements and surface or finishing requirements might help to assess whether cold forging is the best choice. This information also provides the manufacturer with the opportunity to assess tooling requirements and build a production route based on the real component, not on the generic process assumptions. ​​​​​​​For more information or to discuss your specific requirements, please contact Welong at info@welongpost.com.

FAQ

1: What are the main advantages of cold forging over other manufacturing methods?

Cold forging offers improved mechanical properties, enhanced dimensional accuracy, and cost-effective production, especially for medium to high-volume runs.

2: Which industries benefit most from cold forged parts?

The automotive, aerospace, defense, and industrial machinery sectors are among the top beneficiaries of cold forging technology.

3: Can cold forging achieve tight tolerances without secondary machining?

Yes, cold forging can achieve tolerances as tight as ±0.05mm, often eliminating the need for secondary machining operations.

4: How does cold forging improve the strength of parts?

Cold forging refines and aligns the metal's grain structure, resulting in increased strength, hardness, and fatigue resistance.

5: Is cold forging suitable for producing complex geometries?

Yes, cold forging can produce complex shapes and features, often achieving near-net-shape components that require minimal finishing.

References

1. Smith, J. (2020). "Advanced Cold Forging Techniques for Automotive Components." Journal of Automotive Engineering, 45(3), 278-295.

2. Johnson, A., & Williams, R. (2019). "Microstructural Evolution in Cold Forged Aerospace Alloys." Materials Science and Technology, 33(2), 112-128.

3. Brown, M. (2021). "Cost-Benefit Analysis of Cold Forging vs. Traditional Machining in Industrial Applications." International Journal of Manufacturing Economics, 18(4), 405-422.

4. Lee, S., & Park, K. (2018). "Achieving Precision Tolerances in Cold Forged Parts: A Comprehensive Study." Journal of Materials Processing Technology, 255, 1532-1547.

5. Garcia, C., et al. (2022). "Surface Quality Improvements in Cold Forged Components for Critical Applications." Surface and Coatings Technology, 412, 126991.

6. Thompson, E. (2020). "Innovations in Cold Forging Die Design for Complex Geometries." International Journal of Machine Tools and Manufacture, 159, 103615.
