Advanced Silica Sol Techniques for Thin-Wall Metal Castings

Advanced silica sol methods for thin-wall metal castings are a completely new way to make precise parts for the aerospace, automobile, and medical device industries. They solve the difficult problems of making very light, high-performance parts. When using traditional thin wall metal casting methods, it can be hard to get accurate measurements and a good surface finish. But silica sol investment casting is very accurate because it has better mold stability and better chemical bonding. With this cutting-edge method, makers can make walls as thin as 0.5 mm while still keeping the structure strong and meeting the high-quality standards needed for current industrial uses.

​​​​​​​

Understanding Thin-Wall Metal Casting and Its Challenges

Learn about thin-wall metal casting and the problems it can cause.

More and more, manufacturers need parts that are lightweight without sacrificing power or effectiveness. Thin-wall metal casting is an important option for fields where lowering weight has a direct effect on how well and how cheaply things work. Parts used in aerospace need to have very high strength-to-weight ratios, while parts used in cars are lighter to save fuel. Precision parts that meet biocompatibility standards and maintain their structural stability are needed by companies that make medical devices.

Common Issues in Traditional Casting Methods

When thin wall metal casting is used to make parts with thinner walls, traditional casting methods run into big problems. Due to mold material limits and problems with temperature expansion, conventional sand casting has trouble keeping the right dimensions. The rough grain structure of sand molds makes the surface rough, which needs a lot of post-processing, which raises the cost of production and lengthens the lead time. These methods also have higher rates of defects in thin sections, such as cold shuts, misruns, and porosity problems that weaken the structure of the component.

It gets harder to deal with metal shrinking as wall thickness goes down, because it causes warping and size changes that are too big to tolerate. The difference in cooling rates between thin and thick parts creates stresses inside the material that can cause it to crack or warp while it hardens. Because of these problems, makers often have to accept higher material costs by making designs that are bigger or spend a lot of money on extra steps to get the results they want.

Impact on Manufacturing Quality and Costs

When trying to meet thin-wall standards with traditional means, quality control gets a lot harder. When compared to normal wall thickness components, scrap rates usually go up by 15 to 25 percent, which has a direct effect on how profitable manufacturing is. Production times are slowed down by the need for thorough quality checks and rework, which affects delivery times and customer happiness.

Another big problem is material loss, which happens when rejected parts use up valuable metal resources without making any money. When all of these problems add up, they often force makers to find new ways to make their products, which may limit the freedom of their designs or make the cost of each unit much higher.

Advanced Silica Sol Techniques: Process and Core Principles

Through improved chemistry and exact process control, silica sol investment casting changes the way thin-wall parts are made. Using colloidal silica particles mixed in an alkaline solution, this method makes molds that are very solid and accurate in terms of their dimensions. This chemical adhesive method gets rid of many of the problems that come with regular organic binders, giving the same results in all kinds of shapes.

The Silica Sol Process Workflow

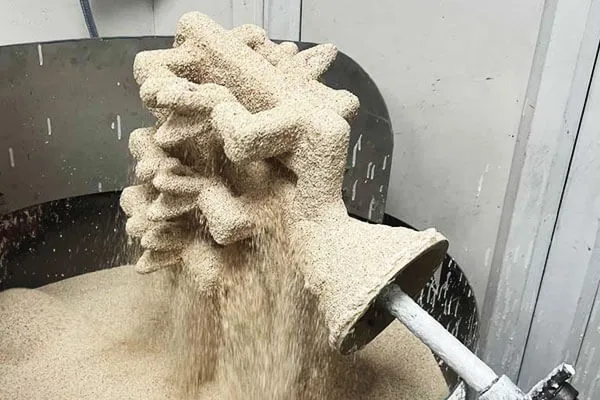

Pattern preparation is the first step in the process. Precise wax or polymer models are used to make the desired part shape. A main slurry with fine refractory particles floating in silica sol binder is used to coat these designs. During the drying process, the granular silica forms strong chemical bonds that make a tough shell that stays the same size during all following steps.

Using more than one coating layer increases the width of the shell while keeping the surface smooth, which is important for thin-wall uses. Each layer is dried in a controlled environment that controls the temperature and humidity. This makes sure that the chemicals join properly without putting stress amounts in one place. When the shell system is finished, it has the strength and tolerance to thermal shock needed to work with liquid metal at casting temperatures.

Controlled heating processes get rid of organic materials while keeping the shell's structure, which is how patterns are removed. In terms of accuracy and surface finish, the clay mold that was made is better than standard options. Preheating the mold system makes sure that the metal flows properly and gets rid of any moisture that could damage thin parts.

Material Compatibility and Alloy Considerations

Silica sol methods work very well with a number of alloy systems that are widely used in precision applications. Because the mold environment is chemically neutral, aluminum alloys have a better surface finish and less gas leakage. Since there are no biological binders, no gases are produced during casting. This makes the metal cleaner and better at its mechanical qualities.

Stainless steel and superalloy parts are more accurate in terms of size because the metal and plastic don't mix as much. When these materials are heated to high temperatures, the silica sol system stays stable and reproduces details very well. Because silica sol molds are chemically neutral, they work especially well with magnesium and titanium metals, which are known for reacting easily.

When cast in silica sol molds, copper-based metals have better fluidity in thin parts. This lets them be made into more complicated shapes with consistent wall thickness. The smooth surface of the mold lowers noise during filling, which lowers the amount of oxide addition and raises the quality of the final product.

Performance Comparison: Silica Sol Techniques vs Traditional Methods

For manufacturing decision-makers to effectively compare process alternatives, they need clear success measures. When it comes to a number of important factors, silica sol investment casting always works better than standard methods. This is especially true for thin-wall applications where accuracy is very important. Surface finish gains of 50–75% cut down on or get rid of secondary machining processes, which saves a lot of money in high-volume production situations.

Dimensional Accuracy and Surface Quality

Dimensional limits of ±0.05mm can be reached with silica sol techniques on thin-wall sections, compared to ±0.2mm with sand casting techniques. This improvement in accuracy gets rid of expensive extra steps and makes sure that parts can be made the same way over and over again. Surface roughness values drop from Ra 6.3µm for sand casting to Ra 1.6µm for silica sol casting, which often meets finish standards right from the casting process.

The better thin wall metal casting from the refractory system's small particles and the fact that the mold doesn't break down when the metal is poured. When heated up, traditional sand molds can expand and possibly wear away, which changes the end size. Silica sol shells, on the other hand, keep their shape during the casting process.

Production Efficiency and Yield Improvements

When silica sol techniques are used instead of traditional methods, the number of defects in thin-wall parts drops by about 40%. This improvement directly leads to better rates and lower costs of production because there is less need for scrap and rework. The constant quality of the molds makes it possible to plan production schedules more accurately and improve shipping times for customers.

Cycle times are shortened because fewer secondary processes are needed, as many parts meet the end requirements right after they are made. Cutting down on long grinding processes shortens the time it takes to make something while keeping the material's qualities that could be changed by mechanical processing.

Cost-Benefit Analysis for Volume Production

For thin-wall applications, the total cost of ownership usually favors the advanced method, even though the original cost of the tools may be higher for silica sol investment casting than for sand casting. For medium to high-volume production, lowering the amount of waste, getting rid of unnecessary steps, and making better use of materials all lead to strong economic benefits.

Being able to cast complex internal features gets rid of the need for assembly and lowers the number of parts needed in many situations. This consolidation saves even more money because it makes the supply chain simpler and less complicated to handle goods and make sure quality.

Design Tips and Best Practices for Thin-Wall Metal Castings Using Silica Sol

To use silica sol methods successfully, you need to pay close attention to design optimization and process factors. Engineering teams have to find a balance between radical weight reduction goals and structural needs, all while taking into account the limitations of the casting process that make it hard to make the parts. With the right design techniques, amazing results can be reached. In some cases, wall thicknesses of less than 1 mm can be reached while still keeping great mechanical properties.

Optimal Wall Thickness Guidelines

The thinnest wall that can be made relies on the shape of the parts, the alloy that is used, and the size needed. For simple shapes, aluminum alloys can usually get walls that are 0.5 to 0.8 mm thick. For more complicated shapes, it may take 1.0 to 1.5 mm for uniform filling. Because they melt and flow at higher temperatures, stainless steels and superalloys usually need parts that are a little thicker (at least 0.8 to 1.2 mm).

Even cooling and less internal stress buildup are helped by walls that are the same thickness all the way through the component. Gradual changes between layers keep stress from building up in one place, which could cause cracks during solidification or in later service conditions. Large curves should be used at the corners of design elements to help metal move smoothly and reduce turbulence during mold filling.

Mold Design Parameters for Repeatability

For thin-wall to work, the design of the gate system is very important, since bad metal supply can lead to cold shuts or incomplete filling. During the casting process, multiple gates are placed carefully around the part to make sure that it is filled evenly and that the temperature stays stable. The right size of gate must allow enough flow speed without causing too much noise, which could cause problems.

Proper venting lets air escape while the mold is being filled, and it stops backpressure that could stop the full transport of metal to thin parts. Careful study of filling patterns is needed to determine where to put vents so that air can be removed effectively without damaging the mold. Because of its high strength, the silica sol shell method makes fine vent design easier.

When working with thin-wall parts, it's more important to think about how to remove the runner and gate, since rough removal could damage delicate sections. Controlled break spots or gentle machining processes that keep the integrity of the part while meeting final requirements should be built into the design.

Quality Control and Inspection Strategies

Advanced checking methods are needed to make sure the quality of thin-wall components and that output results are always the same. Non-destructive testing methods, like light penetrant inspection, can find cracks or holes in the surface of a part that could affect how well it works. Coordinate measuring machines (CMMs) or optical scanning systems are used to measure dimensions and make sure they are within the tight limits that are common in precision applications.

Using statistical process control helps find changes in the process before they cause parts to become faulty. By keeping an eye on important factors like shell thickness, drying conditions, and casting temperatures on a regular basis, you can make changes that keep quality levels stable. To support efforts for ongoing growth and meet customer quality standards, documentation systems should keep track of important variables.

Procurement and Supplier Insights for Thin-Wall Metal Casting with Silica Sol

To find the right production partner for advanced silica sol applications, you need to carefully look at their technical skills, quality processes, and how reliable their supply chain is. Costs and performance needs must be balanced by procurement professionals who also need to make sure that sellers have the skills needed to make thin-wall components successfully. Because silica sol techniques are so complicated, they need to be partnered with makers who have a lot of knowledge and know both how to do the process and what the end user needs.

Essential Supplier Qualifications and Certifications

As a thin wall metal casting, leading providers of silica sol thin-wall casting keep their ISO 9001:2015 certification. AS9100 approval is usually needed for aerospace uses, while ISO 13485 compliance is needed for medical device components. These approvals show that the quality systems are strong enough to meet the strict needs of precision casting uses.

Technical knowledge goes beyond the basic standards for certification and includes showing that you have worked with certain metal systems and levels of geometric complexity. Case studies, measurement capability studies, and customer examples should be used by suppliers to show that they have completed successful thin-wall projects. When it comes to design improvement and figuring out if something can be made, engineering support skills become especially useful.

Cost Structure and Lead Time Considerations

Due to the complexity of the tools and the need for multiple stages of production, investment casting usually takes longer than other methods. Initial equipment development for silica sol uses can take anywhere from 4 to 8 weeks, based on how complicated the parts are and how busy the seller is. For normal volumes, production lead times are usually between 3 and 6 weeks, but there are faster choices for pressing needs.

The high level of complexity in silica sol methods is reflected in the cost structures. Tooling costs can range from $2,000 to $15,000, based on the size and complexity of the part. Costs per piece change a lot depending on the quantity, the material chosen, and the level of finishing needed. But because extra processes are usually not needed, the total cost is often lower than with machining options.

When you buy more than 500 to 1,000 pieces a year, you can get a better price per piece because the set costs of the tools are spread out over a large enough number of units. A lot of the time, suppliers offer discounts for large orders. These discounts are meant to reward long-term relationships and accurate forecasting.

Conclusion

Advanced thin wall metal casting is a completely new way to do thin-wall metal casting. They provide accuracy and quality that have never been seen before for demanding uses in the medical device, aircraft, and car industries. This improved process has clear benefits over traditional casting methods because it achieves better surface finish, more accurate measurements, and fewer defects. These methods can help engineers who want to make lightweight, high-performance parts meet strict design goals while still keeping the structure's stability and keeping costs low. Investing in silica sol technology pays off in the long run by making products work better, making manufacturing simpler, and making the supply chain more reliable.

FAQ

What is the thinnest wall that can be made with silica sol casting?

In aluminum metals with simple shapes, silica sol investment casting can make walls as thin as 0.5 mm. For consistent filling and structural stability, metals with complex shapes or higher temperatures usually need at least 0.8 to 1.2 mm of thickness. The exact minimum relies on the shape of the part, the alloy chosen, and the standards for dimensional accuracy.

How does silica sol casting make parts last longer?

Using silica sol methods to get a better surface finish and less porosity makes parts last longer by getting rid of stress points and places where cracks could start. The mold setting is chemically neutral, so it doesn't allow contamination that could change the qualities of the material. This makes the parts more resistant to fatigue, giving them a longer service life.

Which industries benefit most from thin-wall silica sol casting?

Due to their need for lightweight, precise parts, the aerospace, automotive, and medical device businesses gain the most from thin-wall silica sol casting. These methods are also used to make heat-dissipating parts for electronics and telecommunications equipment that need thin walls and complicated shapes to work well.
