What is the open die forging process?

The open die casting method has been used for hundreds of years to create strong metal parts of any shape. Working with metal in this way is important and helpful. Two or more dies that don't go all the way around a hot piece of metal press it between them. As opposed to closed die forging, where the metal can't move past the sides of the die, open die forging lets it do so. By using this method, the best parts to make are big, difficult ones that work well physically. OPEN DIE FORGING is used by people who work in many areas, such as making big tools, making ships, and making power. Because of this method's many benefits, you can make parts with unique forms and better grain structure. Opening die casting changes as technology gets better. When new materials, methods, and tools are needed for creation, they are added.

What are the Key Steps in the Open Die Forging Process?

Material Selection and Preparation

Carefully choosing and preparing the material is the first step in the open die casting process. Engineers pick the right metal or combination based on the qualities they want the end product to have. Carbon steel, special steel, stainless steel, aluminum, and titanium are all common metals used in open die forging. After the material is chosen, it is cut to the right size and shape. This is usually done with ingots, billets, or bars. The part is heated to the right temperature for forging, which is different for each material. This heating process, which is usually done in big ovens, makes sure that the metal is soft enough to shape. In open die forging, choosing the right materials and getting them ready are very important because they have a direct effect on the quality and features of the final product.

Forging Operation and Shaping

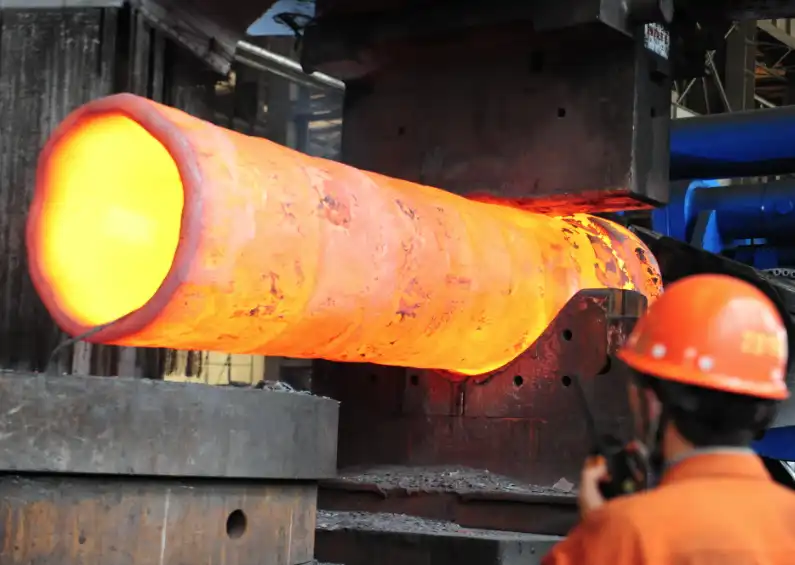

The piece of work is moved to the shaping press or hammer after it has been fired to the right temperature. In open die forging, the hot metal is put between two dies that don't fully surround the piece being forged. Controlled pressure is applied to the material during the shaping process, which makes it bend and move into the desired shape. To get the shape you want, this process may need more than one strike or compression. In between hits, the part needs to be moved around. Skilled workers move the metal around by upsetting, drawing, and cogging, among other things. The material's grain structure is fine-tuned during the casting process, which improves its dynamic qualities. When compared to closed die forging, open die forging gives you more freedom in making big or complicated parts.

Post-Forging Treatment and Quality Control

After the open die forging process is done, the part goes through a number of post-forging processes to improve its quality and features. Some of these processes are controlled cooling, heat treatment, and finishing the surface. Controlled cooling helps keep the part's microstructure and mechanical traits just the way you want them. To make the material even stronger, more flexible, and tougher, heat treatments like leveling, annealing, or cooling and tempering can be used. To get the needed level of accuracy in measurements and surface quality, surface finishing processes like shot blasting, grinding, or cutting are carried out. Strict quality control measures are used throughout the whole process, such as measuring, non-destructive testing, and testing of mechanical properties, to make sure that the made parts meet the requirements and industry standards.

How Does Open Die Forging Compare to Other Forging Methods?

Open Die Forging vs. Closed Die Forging

There are two different ways to shape metal: open die forging and closed die forging. Each has its own benefits and uses. In open die forging, the metal piece is not limited by the dies. This lets more metal flow and gives the shaper more freedom when making big or complicated parts. This method works best for making long, unique parts in small quantities or big things like rods, rings, and discs. With open die casting, you have more control over the structure of the grains and can get higher strength-to-weight ratios. Closed die forging, on the other hand, uses dies that fully surround the body. This makes the finished form more accurate and requires less material to be removed during finishing. Most of the time, closed die forging is better for making a lot of smaller, more complicated items. Operators may need more skill to use open die forging, but it gives them more options for part size and shape.

Advantages of Open Die Forging over Casting

For many reasons, open die forging is better than casting for making strong metal parts. Open die casting is good because it improves the grain structure of the material. The process of casting evens out the grain structure and lines it up in a way that makes the physical properties of the part better. Compared to cast parts, this one is harder, tougher, and less likely to break down over time. Open die-forged parts usually havea  more even grain structure throughout, which makes it less likely that they will have flaws or holes inside, like cast parts can. Additionally, open die forging lets you have more control over the material's properties, which lets you create parts that are stronger in some areas. As an example, companies that make airplanes or big tools and need high-performance parts can really benefit from this method.

Limitations and Considerations of Open Die Forging

There are many good things about open die forging, but it's important to know what the bad things are, too. One of the hardest things about open die casting is that the people who do it need to be skilled so they can move the metal around to get the shape and qualities they want. The process might also need more than one heating cycle and shaping step, which could make it take longer to make and use more energy. When compared to other ways of making things, open die forging usually has higher original equipment costs. However, these costs can be balanced out by the fact that the same set of dies can be used to make a lot of different part sizes and shapes. It's also possible that this method will lose more materials than near-net-shape manufacturing methods. Also, open die forging might not be the most cost-effective way to make a lot of smaller, more complicated items. Even with these things in mind, open die forging is still an important process for many tasks because it has better mechanical qualities and can be used in many different ways.

What are the Future Trends and Innovations in Open Die Forging?

Advanced Materials and Alloys

The open die forging business is always changing to keep up with new tech needs. One of the most important trends is new metals and materials being made and used in the shaping process. As a result of their work, scientists and engineers are creating new metals that are stronger, lighter, less likely to rust, and better able to perform at both high and low temperatures. It is very important to make these changes in areas like energy and airplanes, where parts have to work in tougher conditions. The open die forging process is being made to work with these new materials, like high-performance steels, titanium alloys, and superalloys. Because of this, cast parts are getting stronger, lighter, and last longer. This means they can be used and made in more places.

Automation and Digital Technologies

Bots and computers are being added to the open die casting process, which is changing it. New robots and computer-controlled tools are being used to make the casting process more exact, uniform, and quick. These automatic systems can handle bigger jobs and more difficult forging tasks with little help from people. This makes things safer and less reliant on skilled workers. Digital models and modeling tools can also be used by engineers to make the forging process better online before it is made. With this technology, it is easier to guess how the material will move, how the stress will be spread, and what the final part will look like. This means there is less need to waste time and money on mistakes. With AI and machine learning tools, it's also easier to keep an eye on the open die forging process and ensure the quality of the work. This makes the things that are fake more regular and of better quality.

Sustainable Practices and Energy Efficiency

In order to be more eco-friendly and use less energy, the open die forging business tries to be more eco-friendly. A lot of money is being spent on making stoves and heating systems that are cleaner and use less energy. Process control systems that are being updated and made better are being put in place to make heating cycles work better and waste less heat. More and more people are also making their forges out of recycled materials. This way, getting raw materials hurts the land less. Some forges want to run their businesses with green energy. This would help them leave even less of a carbon trail. The way dies are made and cleaned is also getting better, which makes them last longer and waste less material. These green ways help the earth and save money at the same time. They also make the open die forging business better.

Conclusion

Open die forging remains a critical manufacturing process, offering unparalleled advantages in producing high-strength, custom-shaped metal components. Its ability to enhance material properties, accommodate large and complex parts, and provide flexibility in production makes it indispensable in various industries. As the field continues to evolve with advanced materials, automation, and sustainable practices, open die forging is poised to meet the challenges of modern manufacturing. The ongoing innovations in this process ensure that it will continue to play a vital role in creating high-performance components for critical applications across multiple sectors, from aerospace to energy production.

Shaanxi Welong Int'l Supply Chain Mgt Co.,Ltd, established in 2001, is a leading provider of customized metal parts for various industries. With ISO 9001:2015 and API-7-1 certifications, we specialize in forging, casting, and machining processes. Our experienced team offers comprehensive solutions, from design to delivery, ensuring cost-effective, high-quality products that meet international standards. With a global customer base spanning over 100 clients in 20+ countries, we are committed to driving intelligent manufacturing and supply chain excellence. Our diverse range of products and materials, coupled with state-of-the-art engineering capabilities, positions us as a reliable partner for all your metal component needs. Experience the Welong difference in quality, service, and innovation. Contact us at info@welongpost.com to discover how we can support your success.

FAQ

Q: What are the main advantages of open die forging?

A: Open die forging offers improved grain structure, enhanced strength-to-weight ratio, flexibility in producing large or complex parts, and superior mechanical properties compared to other manufacturing methods.

Q: What types of materials can be used in open die forging?

A: Common materials used in open die forging include carbon steel, alloy steel, stainless steel, aluminum, titanium, and various other metals and alloys.

Q: How does open die forging differ from closed die forging?

A: Open die forging allows the metal to flow beyond the die surfaces, offering greater flexibility for large parts, while closed die forging confines the metal within the die cavity, producing more precise shapes.

Q: What industries commonly use open-die forged components?

A: Open die forged components are widely used in aerospace, power generation, oil and gas, heavy machinery, and other industries requiring high-strength, custom-shaped metal parts.

Q: How is quality control ensured in the open die forging process?

A: Quality control in open die forging involves rigorous inspections, non-destructive testing, and mechanical property testing to ensure parts meet specified requirements and industry standards.
