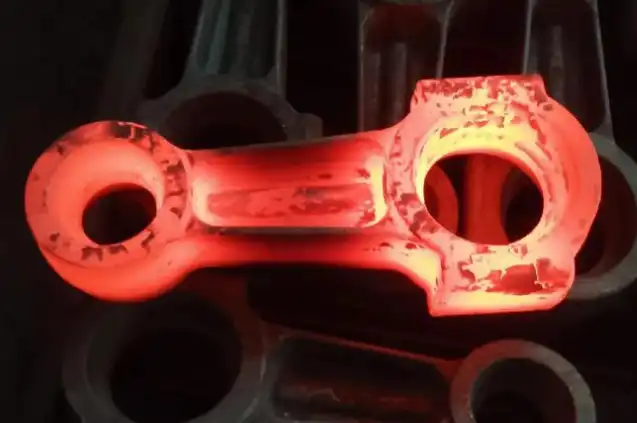

Closed Die Forging is frequently used to produce metal parts that require a regulated balance of strength, dimensional consistency and material efficiency. These requirements are significant in aircraft production, where structural and engine-related components might be subjected to cyclic loads, vibration, variations in temperature and harsh operating conditions during their life. The method involves inserting a heated metal billet or preform between shaped dies and exerting a compressive force until the material fills the die cavity. Unlike simple free forging, the final shape is controlled by the die cavity and also serves to guide the flow of material to the appropriate shape. With the right control of the tooling, temperature, deformation sequence and heat treatment, the technique can yield forgings with desirable grain flow and repeatable mechanical properties. The importance of Closed Die Forging to aerospace manufacturers is more than merely shaping metal. It helps engineers to balance structural performance against weight, material efficiency, dimensional specifications and manufacturing consistency. The final result, however, is dependent on the alloy selected, the design of the forging, the process parameters, the heat treatment, the machining allowance and inspection requirements. Closed die forging has five major advantages that can make it a viable manufacturing alternative for demanding aircraft components.
1. Higher Strength and Fatigue Performance for Load-Bearing Components
Grain Flow Supports Structural Performance
One of the key reasons aerospace manufacturers utilise forging is the ability to generate a favourable grain flow during controlled deformation. When the metal is squeezed and formed by the dies, the grain structure of the metal can be aligned with the geometry of the part.
This is especially important for components that are subject to repeated mechanical loads. For aerospace applications, components such as structural fittings, brackets, landing gear components, engine components, and other load-bearing hardware may encounter tens of thousands or millions of stress cycles in service. The grain-flow pattern of a well-designed forging can follow the load path of the completed part.
The Forging Industry Association says forging often creates a grain structure that is orientated to the geometry of the component, which can add to strength, ductility, impact resistance and fatigue resistance.
Grain flow, however, should not be taken as a replacement for engineering validation. Actual fatigue performance is also dependent on alloy chemistry, heat treatment, surface condition, residual stresses, geometry, and operating conditions.
Reduced Risk of Internal Discontinuities
Controlled forging can also assist in the formation of a thick material structure. Where the process is appropriately designed and regulated, deformation may reduce the voids and other discontinuities present in the beginning material.
This is significant for aerospace applications because interior material conditions might affect fatigue performance and fracture behaviour. Thus a forged component is generally considered with the material certification, heat-treatment documentation, dimensional inspection and necessary non-destructive testing standards.
The aim is not just to get the portion stronger. This is to build a repeatable production process where the material condition can be regulated and validated from the incoming stock to the completed forging.
Suitable for Cyclically Loaded Aerospace Parts
Many aeronautical components do not experience one-time static loads. They are subjected to repeated stress, vibration, temperature cycling or any combination of these factors. For such applications the fatigue performance may be as critical as the ultimate tensile strength.
Closed die forging can be an effective manufacturing approach when the component geometry and alloy are suitable with the process. Parts for severe service applications may be produced by controlled deformation, followed by appropriate heat treatment and inspection.
The crucial issue for engineers and consumers is that the forging process should be examined as part of the total manufacturing system and not in isolation.
2. Controlled Grain Structure and Material Integrity
Grain Flow Can Follow the Component Geometry
A fundamental difference between forging and techniques mostly based on material removal is the way the material structure develops during forming. In a properly designed forging operation, the deformation can be regulated to make the grain flow follow the critical sections of the part.
This is especially advantageous when a part has transitions between thicker and thinner sections or locations where mechanical loads are concentrated. The die design and preform sequence can be devised to promote the proper metal flow, instead of depending on machining for the final geometry.
This capacity is a significant design factor for aerospace components. Engineers can examine not only the exterior dimensions of a product but also how the manufacturing process impacts its internal material structure.
Improved Material Consistency
In aerospace production, precise control of material qualities is necessary. Components may have particular mechanical and chemical requirements. Although forging cannot ensure uniform characteristics, a controlled procedure can yield a more homogeneous material condition between production batches.
Important variables in the process may be:
-
temperature of the billet or preform;
-
temperature of the die;
-
sequence of deformation;
-
forging reduction;
-
conditions of cooling;
-
heat treatment;
-
machining allowance;
-
and requirements for final inspection.
By controlling these variables, producers may minimise undesirable variation and develop a reproducible production process.
Compatibility With High-Performance Alloys
Closed die forging can be used for a wide variety of engineering alloys, such as appropriate aluminium, titanium, steel and nickel-based alloys. The component material must be selected based on the required strength, temperature capacity, corrosion resistance, manufacturability and appropriate material specification.
Titanium alloys are most often linked with aircraft applications where excellent strength-to-weight performance is critical. For high-temperature-demanding applications, a nickel-based alloy may be used. Aluminium alloys are also desirable if low density is an important design element.
The forging temperature and the process window have to be suited to the alloy. “A process that works well for one material cannot just be transferred to another without engineering validation.”
3. Better Material Utilisation and Lightweight Component Design
Near-Net-Shape Production Reduces Machining Allowance
Weight is an important design consideration in aircraft manufacturing, but reducing weight does not mean removing material indiscriminately. Aerospace engineers must maintain sufficient structural capacity while minimising unnecessary mass.
Closed die forging can contribute to this objective by producing components closer to their final geometry than processes that begin with oversized blocks or plates. Near-net-shape forging can reduce the amount of material that must subsequently be removed during machining.
The Forging Industry Association identifies improved material utilisation and reduced secondary operations as important advantages of forging, particularly when near-net-shape processes are used.
This can be valuable for expensive aerospace alloys. When the starting material has a high unit cost, reducing machining stock can lower material waste and improve manufacturing efficiency.
Strategic Material Distribution
Closed die forging also allows engineers to control where material is placed within the general shape of a component. Instead of producing a simple block and removing large quantities of material, the forging can be designed around the required load paths.
This approach does not automatically make every forged component lighter. Rather, it provides engineers with another method for optimising the relationship between material distribution, structural requirements, and machining requirements.
The final weight reduction depends on the part design and the performance requirements. In many cases, the most effective result comes from combining forging with CAD-based design optimisation and carefully planned machining.
Lower Waste for Expensive Aerospace Alloys
Material utilisation becomes especially important when manufacturing components from titanium, nickel-based alloys, or other relatively expensive materials.
If a machining-intensive manufacturing route starts with a large billet and removes most of that billet to create the final component, a significant amount of material may become machining waste. A properly engineered near-net-shape forging can reduce the starting volume and leave less material for subsequent machining.
This can improve both cost efficiency and production sustainability while maintaining the required component geometry.
4. Accurate Geometry and Near-Net-Shape Manufacturing
Controlled Die Geometry
Another important advantage of closed die forging is its ability to repeatedly form components using dedicated die cavities. The die defines key geometric features and provides a controlled forming environment.
This makes the process particularly useful for production programmes in which multiple components must meet the same dimensional requirements.
However, closed die forging should not be described as a process that produces every aerospace component to final machining tolerances. Depending on the alloy, component geometry, forging method, and specification, additional machining may still be required.
The most practical benefit is often the reduction of machining stock and the ability to establish a repeatable near-net-shape starting point.
Efficient Production of Repeated Geometries
Tooling investment is an important consideration in closed die forging. Dies must be designed and manufactured for the specific component, which means the process is generally more attractive when the production quantity and component value justify the tooling cost.
Once the tooling has been validated, however, the repeatability of the die cavity can provide significant advantages for production runs.
This is particularly relevant to aerospace supply chains where dimensional consistency and repeatability are important. Instead of individually machining every major feature from a solid block, manufacturers can use a controlled forging operation to establish the basic geometry before final machining and inspection.
Fewer Secondary Machining Operations
Near-net-shape forging can reduce the amount of material removed during machining. This can shorten machining cycles, lower tool consumption, and reduce material waste.
The benefit becomes more significant when the component contains a complex three-dimensional profile. A forging can establish much of the external form before CNC machining is used for critical interfaces, holes, surfaces, and other features requiring tighter tolerances.
The result is not necessarily a completely finished component directly from the forging press. Instead, forging and machining work together, with each process performing the operations for which it is best suited.
5. Stronger Quality Control, Traceability, and Inspection Capability
Controlled Manufacturing Records
Aerospace manufacturing places significant emphasis on process control and traceability. A Closed Die Forging component may need to be linked to information such as the material heat or batch, forging process, heat-treatment condition, inspection results, and dimensional measurements.
This traceability gives manufacturers and buyers a clearer record of how the component was produced.
For suppliers, maintaining these records is also important when investigating nonconformities or reviewing production history. Instead of treating quality inspection as a final-stage activity, a stronger quality system tracks the product throughout the manufacturing process.
Non-Destructive Testing Supports Verification
NDT can provide another layer of verification for aerospace forgings. Depending on the material, component geometry, defect type, and applicable specification, methods may include ultrasonic testing, magnetic particle inspection, penetrant testing, eddy-current inspection, or radiographic testing.
FAA documentation for aircraft components references several of these methods, including magnetic particle, ultrasonic, and fluorescent penetrant inspection, while FAA guidance for titanium engine components specifically addresses ultrasonic inspection of forgings.
The appropriate inspection method should therefore be determined from the component specification rather than applying the same NDT method to every forged part.
More Predictable Production Quality
Aerospace customers typically need more than a single acceptable component. They need a manufacturing process capable of producing repeatable results across batches.
Closed die forging can support this objective when the tooling, material preparation, forging parameters, heat treatment, machining, and inspection procedures are properly controlled.
For procurement teams, this means supplier evaluation should extend beyond the forging press itself. It is useful to review the supplier's engineering capabilities, quality system, inspection equipment, material traceability, process documentation, and experience with the required alloy and component geometry.
What Should Aerospace Buyers Consider Before Choosing Closed Die Forging?
Although closed die forging offers important advantages, it is not automatically the best manufacturing method for every aerospace component.
Before selecting the process, engineers and procurement teams should evaluate several factors.
Component Geometry and Production Volume
The complexity and size of the component influence die design, forging sequence, and tooling cost. Production quantity is also important because dedicated tooling represents an upfront investment.
For relatively high-volume production or high-value components, the repeatability and material-efficiency benefits can justify this investment more readily.
Material and Heat Treatment
The alloy determines the appropriate forging temperature, deformation range, heat-treatment cycle, and inspection requirements. Titanium, aluminium, steel, and nickel-based alloys each require process-specific controls.
The final mechanical properties should therefore be evaluated after the complete manufacturing route rather than judged solely from the forging operation.
Machining and Inspection Requirements
Aerospace forgings commonly require additional machining and inspection. Buyers should define dimensional tolerances, surface requirements, NDT requirements, material certification, and documentation before production begins.
A supplier that can coordinate forging, heat treatment, machining, inspection, and documentation can simplify the manufacturing chain and improve production control.
Supplier Engineering and Quality Capability
The supplier's ability to interpret drawings, optimise forging designs, control tooling, inspect parts, and maintain traceability is as important as the forming equipment itself.
Welong states that it provides customised metal components based on drawings and samples and offers forging, casting, machining, engineering, and quality-control capabilities. Its official company information also lists ISO 9001:2015 certification and aerospace among the industries it serves.
Conclusion
Closed die forging provides aerospace manufacturers with a combination of material performance, controlled grain flow, efficient material utilisation, repeatable geometry, and structured quality control. These advantages make the process well suited to many components where strength, fatigue performance, weight, and manufacturing consistency are important.
Its value is greatest when the forging design is developed around the material, load requirements, production volume, machining strategy, and applicable inspection specifications. Near-net-shape production can reduce machining stock and material waste, while controlled deformation can produce a favourable grain structure for demanding mechanical applications. At the same time, traceability and NDT can strengthen the verification process required for critical aerospace components.
For aerospace manufacturers, the best results come from treating forging as part of an integrated production route rather than as an isolated forming operation. Proper tooling design, material control, heat treatment, machining, inspection, and documentation all contribute to the final performance of the component.
For companies evaluating closed die forging for customised aerospace components, Shaanxi Welong Int'l Supply Chain Mgt Co., Ltd. provides customised metal-part manufacturing and engineering support. Welong was established in 2001 and states that it provides forging, casting, machining, quality control, and supply chain services for customised metal products. Its current company information lists ISO 9001:2015 certification and aerospace among its served industries.
When requesting a quotation, buyers can improve project efficiency by providing the component drawing, material specification, expected production quantity, dimensional requirements, heat-treatment requirements, NDT requirements, and applicable customer or industry standards. This allows the supplier to evaluate tooling, forging feasibility, machining requirements, inspection procedures, and delivery expectations before production begins.Get in touch with Welong at info@welongpost.com if you have any questions or would like to talk about your aerospace manufacturing requirements.
