The Role of Hot Forging in Heavy Machinery Manufacturing

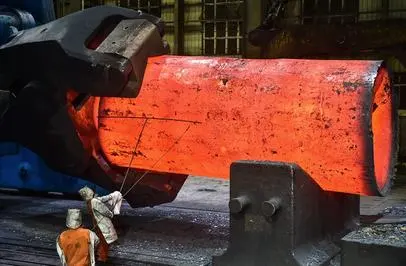

Hot forging is used extensively for the fabrication of heavy-duty metal parts which are expected to carry heavy loads, repetitive impacts, vibration and severe working conditions. If you heat the metal to the proper forging temperature and then apply regulated compressive forces , manufacturers can form the material while controlling the grain flow and microstructure . This makes forging very suitable for load bearing items such as shafts, gears, connecting rods, axles, hooks and other important elements. But for makers of heavy machinery, the benefit of hot forging is more than just a ‘stronger’ forged component. The real performance of a part hinges on the selection of materials, the forging reduction, the design of the die or tooling, temperature management, heat treatment, machining, inspection and the operating conditions of the finished component. If these elements are well coordinated, hot forging may be a dependable manufacturing technique for components where the structural integrity and predictable mechanical properties are critical .

Why Does Hot Forging Fit Heavy Machinery Components?

Metal parts are under great stress in heavy machines. Mining equipment is subjected to abrasive materials and repetitive impact. Excavators, loaders, cranes, and industrial machinery subject shafts, gears, pins, and structural sections to cyclic loads and shock forces.

Hot forging is well suited for many of these applications, as plastic deformation occurs while the material is heated to an adequate temperature. Reduced deformation resistance helps manufacturers to produce large sections and intricate shapes that would need much greater force at lower temperatures.

More crucially, the controlled deformation can refine the grain structure and provide a grain flow following the geometry of the forged component. The Forging Industry Association lists grain refinement and optimized grain flow as major contributions to tensile strength, ductility, impact toughness, fracture toughness, and fatigue strength.

That is not to say that every piece of heavy gear should be forged. Casting, machining, fabrication, and other manufacturing procedures may be better for some geometries or production quantities. The secret is to tailor the procedure to the performance needs of the part.

Matching Forging to Component Design

When engineers choose hot forging, they often evaluate several factors:

• Mechanical properties necessarily

• Weight and part dimensions

• Material quality

• Geometry of components

• Production volume

• Dimensional tolerances required

• Allowance for machining

• Heat treatment requirements

• Inspection requirements

• Anticipated service loads

The forging method is well suited for large shafts, gears, axles, and other load-bearing parts provided their design and fabrication requirements warrant the process.

How Does Grain Flow Support Mechanical Performance?

The regulation of material flow during deformation is one of the most important technological benefits of forging.

The grain structure is distorted during the forging of a billet into a component and might be oriented along critical parts of the part. Proper grain flow design can help the component withstand loads that follow the functional geometry.

This is especially true of components for large machinery where stress concentrations occur near changes in section, gear teeth, fillets, or load-bearing transitions.

Grain Refinement and Strength

If the procedure is well managed, hot deformation can refine the microstructure. Following proper heat treatment, a refined and reasonably homogeneous microstructure allows for more consistent mechanical behavior.

But forging alone does not define ultimate strength. The grade of the material and the following heat treatment are also important.

For example, a forged alloy steel part may be normalized, quenched and tempered, or otherwise heat treated as necessary to get the desired mechanical qualities. Therefore, the end tensile strength, yield strength, hardness, and toughness are a result of the entire manufacturing path and not only forging.

Grain Flow and Fatigue Loading

Many large equipment components are not subject to a single static stress, but rather to repeated loading. Shafts twist, gears deliver torque, and connecting parts are subjected to repeated strain and compression.

In many applications, fatigue resistance is an essential design issue.

By a highly regulated forging process, the grain flow can be designed to support the functional geometry of the component. Thus, forged components are often chosen for applications where cyclic loading is high. Fatigue strength and directional characteristics are also cited as performance benefits linked with regulated grain flow by sources from the forging industry.

However, fatigue performance also varies on surface finish, inclusions, heat treatment, geometry, residual stresses, and operating loads. A forged part is NOT automatically fatigue-resistant.

Improving Structural Integrity in Heavy-Duty Parts

Heavy machinery parts, by contrast, are rarely tolerant of inherent irregularities in the material. When a large shaft or gear is running under a high load, a major internal discontinuity that becomes a crack initiation point might have serious repercussions.

Hot forging can also be used to increase structural integrity by plastically deforming the material and, when conditions are right, to help close internal spaces or porosity inherited from the starting material.

The Forging Industry Association has recognized the closure of voids and control of internal defects as key topics for research and quality control in forging.

Reducing Internal Voids and Porosity

Forging deformation may lower the size of some internal discontinuities and increase the soundness of material. But “hot forging will automatically eliminate all defects” is not a correct statement.

The result is sensitive to:

• Quality of raw material

• “Smithing temperature”

• Deformation amount

• Sequence of deformations

• Direction of forging

• Part geometry

• Control of the process

Thus, for essential components, producers should not depend just on the forming process but instead combine forging with adequate inspection techniques.

Inspection can be ultrasonic, magnetic particle, dimensional, hardness, tensile, and metallographic tests as per the component and specification.

Maintaining Consistent Material Properties

Larger heavy equipment parts can have large cross-sections, which can make consistent processing more challenging.

By controlling the forging and heat treating, manufacturers can obtain more uniform characteristics across the part. This uniformity is important because a component can be subjected to various stresses across its cross-section in service.

That’s why process documentation is often as crucial to procurement teams as the end part dimensions. A quality-regulated forging provider should be able to show how material selection, forging, heat treatment, machining, and inspection are carried out.

Where Is Hot Forging Used in Heavy Machinery?

Hot forging is used according to the component geometry and performance requirements. This is especially true for portions that experience large mechanical loads.

Shafts, Axles, and Rotating Components

Shafts and axles are exposed to torsion, bending, impact, and cyclic loads.

These components can be produced by a forged route, which provides desirable grain flow and material integrity. After forging, machining is usually employed to obtain the final dimensions, bearing surfaces, keyways, splines, or other needed features.

Gears and Transmission Components

Gears that can transmit a great amount of torque are needed in the gearboxes of heavy machinery.

Gear blanks and other gearbox components can be made by forging before later machining and heat treatment. The final performance of gear applications is based on not only forging quality but also tooth geometry, surface hardness, heat treatment, and machining accuracy.

The Forging Industry Association cites a huge swing ring gear for mining equipment as an example. In this instance the component was changed from a casting to a hot-press-forged blank in an effort to improve fatigue life and impact toughness through continuous grain flow.

This example makes a crucial point: the choice of casting versus forging should be based on the actual failure modes and performance needs of the component.

Pins, Hooks, and Load-Bearing Hardware

Pins, hooks, linkages, and other load-bearing hardware can be subjected to repetitive impact and tensile loading.

Forged steel is selected for these parts by producers because of its strength and toughness. The choice of the material and heat treatment should be made according to the predicted load, service environment, and applicable design criteria.

Hot Forging Compared with Casting and Machining

Hot forging is not the solution to all other manufacturing processes.

Casting is typically desirable for components with complex geometries, big cavities, or shapes that would be difficult to produce inexpensively by forging. Machining is useful for very tight dimensional tolerances or complicated details.

Forging is a good choice when you need a part to have good mechanical qualities and controlled grain flow.

According to the Forging Industry Association, forging can offer more uniform strength qualities than casting and can improve the grain structure and some blemishes in the beginning material.

When Forging Is the Better Choice？

Hot forging is worth considering when the component has:

• High structural loads

• Significant cyclic loading

• Impact or shock loading

• Critical fatigue requirements

• A geometry suitable for controlled material flow

• Sufficient production volume to justify tooling

• Mechanical property requirements that favor forged construction

When Another Process May Be More Suitable

Forging may not be the most economical option when:

• Production quantities are very low.

• The component has extremely complex internal cavities.

• Very small dimensions require minimal material removal.

• Tooling costs cannot be justified.

• The required performance does not justify forged construction.

For this reason, experienced manufacturers evaluate the complete production route rather than recommending forging simply because it offers high strength.

The Role of Heat Treatment After Forging

Forging is only one stage of manufacturing. For many heavy machinery components, heat treatment is essential for achieving the required combination of hardness, strength, toughness, and dimensional stability.

Depending on the material and specification, post-forging operations may include normalizing, annealing, quenching and tempering, or other controlled thermal treatments.

Controlling Mechanical Properties

Heat treatment can adjust the microstructure developed during forging and produce the required mechanical properties.

For example, a component may need high strength while retaining sufficient toughness to withstand impact. Simply maximizing hardness may not produce the best service performance.

The correct treatment therefore needs to be based on the material grade, component geometry, mechanical property requirements, and service conditions.

Managing Distortion and Machining Allowance

Large forged components can experience dimensional changes during cooling and heat treatment.

Manufacturers therefore need to consider:

• Forging tolerances

• Cooling conditions

• Heat-treatment distortion

• Machining allowance

• Final dimensional requirements

Close coordination between forging and machining is particularly important for large components where even relatively small dimensional deviations can affect assembly.

Quality Control for Heavy Machinery Forgings

A high-quality forged component requires more than visual inspection.

A robust quality program should cover the entire manufacturing chain, beginning with raw material verification and continuing through hot forging, forging, heat treatment, machining, and final inspection.

Material and Process Verification

Typical controls may include verification of:

• Material certificates

• Chemical composition

• Forging parameters

• Heat-treatment records

• Mechanical properties

• Hardness

• Dimensional accuracy

• Surface condition

For critical applications, non-destructive testing may also be specified.

The Forging Industry Association maintains technical resources covering forging defects, temperature measurement, fracture prevention, internal defect characterization, and quality control, demonstrating the importance of process monitoring throughout forging production.

Documentation for Procurement Teams

When sourcing custom forged parts, buyers should ask suppliers for documentation appropriate to the application.

Depending on project requirements, this may include the following:

1. Material certificates

2. Mechanical test reports

3. Heat-treatment records

4. Dimensional inspection reports

5. Non-destructive testing reports

6. Forging process information

7. Traceability records

8. Applicable quality certifications

This documentation helps procurement teams evaluate whether a supplier can consistently manufacture parts to the required specification rather than judging quality only from a sample component.

How to Select a Hot Forging Supplier？

Choosing the right supplier is an important part of reducing manufacturing risk.

A supplier should ideally demonstrate experience with the required material, component size, forging method, machining requirements, and inspection standards.

Evaluate Engineering Capability

Heavy machinery components are rarely off-the-shelf products. Many are manufactured according to drawings, samples, technical specifications, or customer-developed designs.

An experienced supplier should be able to review the design, identify manufacturing concerns, and coordinate forging with machining and inspection.

Check Quality and Production Management

Certification is useful, but buyers should also evaluate how quality control is implemented in practice.

Relevant questions include:

• How is incoming material verified?

• How are forging temperatures monitored?

• How is heat treatment controlled?

• What inspection equipment is available?

• Can the supplier provide traceability?

• Can machining be completed in-house or coordinated?

• How are nonconforming parts handled?

• Can inspection reports be provided with each batch?

These questions provide a more meaningful evaluation than simply comparing quoted prices.

Why Does Custom Forging Capability Matter for Heavy Machinery?

Heavy machinery manufacturers often require components with unusual dimensions, specific material grades, or application-specific mechanical properties.

China Welong states that it was founded in 2001 and provides customized metal parts based on customer drawings and samples. Its official company profile also identifies forging, casting, and machining capabilities and ISO 9001:2015 certification.

This integrated capability can be useful when a project requires multiple manufacturing processes. Instead of treating forging, machining, and quality control as completely separate activities, an integrated supplier can coordinate the manufacturing route from the initial drawing through final delivery.

For OEMs and engineering teams, this can simplify supplier management and make communication about tolerances, material specifications, inspection requirements, and production changes more efficient.

Conclusion

Hot forging remains an important manufacturing process for heavy machinery components that require a combination of strength, toughness, fatigue resistance, and structural integrity. Its primary value comes from controlled plastic deformation, favorable grain flow, microstructural refinement, and the ability to produce robust components from suitable metal alloys.

However, the performance of a forged component does not depend on forging alone. Material selection, forging temperature, deformation, die or tooling design, heat treatment, machining, and inspection all influence the final result. For this reason, engineers and procurement teams should evaluate the complete manufacturing process rather than viewing hot forging as a standalone solution.

For heavy machinery applications, the best manufacturing choice depends on the component's geometry, loading conditions, production volume, material requirements, dimensional tolerances, and quality standards. When these factors align with the advantages of forging, hot-forged components can provide a reliable foundation for demanding mining, construction, industrial, and material-handling equipment.

Shaanxi Welong Int'l Supply Chain Mgt. Co., Ltd., established in 2001, provides customized metal components and supports forging, casting, and machining projects. Welong's official profile states that the company is ISO 9001:2015 certified and provides customized production based on customer drawings and samples, with engineering support for customized metal products. For buyers seeking custom forged components, this combination of engineering coordination, manufacturing capability, quality management, and international supply-chain experience can help simplify the sourcing process and align the final parts with project requirements. For more information, please contact us at info@welongpost.com.

FAQ

1: What is hot forging, and how does it differ from cold forging?

Hot forging is a metalworking process where metal is heated above its recrystallization temperature and then shaped under pressure. Unlike cold forging, which occurs below the recrystallization temperature, hot forging allows for greater deformation and shaping of the metal, resulting in improved grain structure and mechanical properties.

2: Why is hot forging preferred for heavy machinery components?

Hot forging is preferred for heavy machinery components due to its ability to produce parts with superior strength, durability, and reliability. The process results in improved grain structure, enhanced mechanical properties, and better overall performance in high-stress applications.

3: How does hot forging improve the wear resistance of components?

Hot forging improves wear resistance by creating a more refined and uniform grain structure, which increases the material's ability to withstand abrasive environments. The process also allows for the incorporation of wear-resistant alloys and surface treatments.

4: Can hot forging eliminate internal defects in metal components?

Yes, hot forging is highly effective in eliminating internal defects such as voids and porosity. The high temperature and pressure during the forging process help to close these defects and create a more uniform internal structure.
