How Closed Die Forging Ensures High Precision in Automotive Parts?

In automotive manufacturing, dimensional accuracy is only one part of component quality. Forged parts must also withstand repeated loads, maintain consistent geometry across production batches, and provide enough material for subsequent machining where required.​​​​​​​ Closed die forging addresses these requirements by forming heated metal inside matched dies that contain the required component geometry. The regulated cavity, repeatable press movement, well prepared billet and finishing processes all add up to the consistent automobile forgings. The method is especially well suited to components such as connecting rods, steering knuckles, yokes, hubs and other structural or drivetrain components where strength and repeatability are crucial. But the dice itself does not give any precision. It is the whole production chain, from the selection of materials and preparation of the billet to die design, temperature control, forging pressure, trimming, heat treatment and dimensional inspection. By understanding these parameters, automotive engineers and procurement teams may determine whether Closed die forging is the correct process for a certain component, and what production restrictions should be expected from a competent supplier.

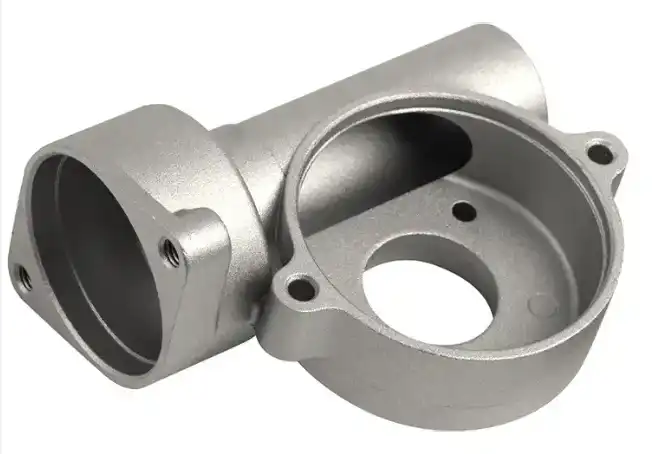

How Does Closed Die Forging Control Automotive Part Dimensions?

Accurate Die Cavities Establish the Basic Geometry

The die is one of the most essential variables impacting the dimensional accuracy. In closed-die forging, the heated billet is placed between two matching dies. The dies compress the material and fill the cavity. The hollow thus affects many of the outward aspects of the finished forging.

This enables the engineers to specify the component shape in 3D CAD models and include crucial forging factors such as material shrinkage, draft angles, flash formation, and machining allowances prior to the manufacture of the production dies. Such a simulation can also be used to estimate the probable movement of the material through the cavity.

The production die is subsequently machined to the appropriate geometry. Dimensional uniformity between die parts is ensured via CNC machining and controlled die finishing. This is relevant for automotive applications, because slight differences in the die may be reproduced over a large production batch.

The inspection should, therefore, be looked at not as a tooling job but as a part of the precision-control process. The final forged part is affected by critical cavity size, alignment, wear, and surface condition.

Billet Weight and Preform Accuracy Affect Material Distribution

The quantity of material entering the die cavity must be managed carefully. If there is not enough material in the billet, some sections may not fill entirely. Too much material may result in greater flash generation and additional trimming.

For this reason, billet cutting and preforming processes, where required, are critical steps prior to final forging. Uniformity in size and weight of the billets also helps to achieve predictable material distribution during the forming cycle.

Where there are large changes in the cross-section of the component, a preform may be utilized to locate material before final die-cavity closure. This can help prevent unnecessary movement of material and make it easier to fill tough part portions.

Control of the beginning material is particularly critical in large-volume automotive production. Small variations repeated over thousands of parts can increase scrap, tooling wear, or machining requirements.

Temperature Control Supports Stable Metal Flow

The forging temperature has an immediate effect on the deformability of the material. If the billet is too cold, higher forming pressures may be required, and the material may not flow as desired. Depending on the alloy and process circumstances, too high a temperature or insufficient control of the heating cycle can lead to oxidation or scale formation, grain growth, or other process difficulties.

The billets are heated in a controlled heating system to the required forging temperature prior to entering the die. Transfer time between heating and forging also counts, since the material might lose heat as it moves between operations.

For automobile forgings, the goal is not just to get to a nominal temperature once. The temperature condition of the production process should be appropriate and repeatable between batches. Monitoring of furnace conditions and manufacturing parameters reduces fluctuation in material flow and final dimensions.

Which Process Controls Improve Forging Precision?

Press Force and Stroke Must Match the Part's Geometry.

The forging press must apply adequate force and controlled motion to fill the die cavity without adding unwanted variance into the process. The press capacity is selected based on such things as material, component size, shape, and forming requirements.

A controllable press stroke and forming sequence will produce repeatable deformation from part to part. Modern production systems are able to record process parameters so that odd conditions can be discovered before a significant number of components is affected.

This is particularly advantageous to car manufacturing because closed die forging consistency is as crucial as the dimensional correctness of an individual part. A component that fulfills the drawing criteria once but varies widely between production lots does not give predictable manufacturing performance.

Lubrication Helps Control Friction and Material Movement

The interaction between workpiece and die surfaces influences the metal flow in the cavity. The proper forging lubricant reduces friction, aids material flow, and helps control die wear.

But lubrication is not only a question of adding additional lubricant. The type, concentration, application method, and die condition need to be regulated according to the material and forging process.

Good lubrication reduces fluctuations in material flow and improves process stability. It also helps increase die life, which is more significant when creating big quantities of car parts.

Process Monitoring Makes Batch-to-Batch Variation Easier to Detect

Operator experience is not all that is needed to create a repeatable forging process. Variables such as billet temperature, press force, stroke position, cycle time, and other process-specific characteristics can be monitored by production monitoring.

By correlating these records with dimensional inspection findings, manufacturers can find connections between process conditions and part quality. For example, the change in dimensional results may be due to a change in billet temperature or press behavior.

Such process control is a far stronger approach to quality management than depending on only the final inspection. This enables manufacturers to identify process drift sooner and lower the quantity of nonconforming parts generated.

Why Does Near-Net-Shape Forging Reduce Machining Requirements?

Forging Places, Material Close to the Final Geometry

One of the key advantages of closed die forging is that the die cavity may bring the workpiece very near to its ultimate shape. Instead of machining the entire component out of a solid block, controlled plastic deformation during the forging process produces much of the needed geometry.

This may be particularly useful for automobile components with complex exterior features. This means that less material has to be removed during the subsequent machining operation, reducing machining cycles and material waste.

However, near-net shape does not mean that all automobile components forged are ready for assembly right after forging. CNC machining or other finishing may still be needed for critical holes, bearing surfaces, threads, mounting faces, and other features.

Flash Trimming Removes Excess Material

In closed die forging, some of the material may flow past the desired cavity to generate flash around the separating line. Flash is trimmed after forging.

Control of trimming is important, because excess or improperly placed flash can impact material utilization and downstream activities. Proper die design and constant forging conditions mean flash generation is kept to a minimum in the range intended.

Reducing unneeded flash makes a considerable difference in material consumption and production efficiency for high-volume production.

Coining and Sizing Can Refine Critical Features

Some components after the first forging process need extra forming procedures. If the initial forging procedure cannot consistently produce the appropriate geometry, coining or sizing may be employed to improve certain dimensions or surfaces.

These procedures should be seen as part of the overall manufacturing path and not as an indication that the forging process has failed to deliver precision. In the manufacture of automotive components, forging is frequently combined with trimming, heat treatment, machining, and inspection. Each of these processes is accountable for distinct needs.

How Does Forging Improve the Mechanical Consistency of Automotive Parts?

Controlled Deformation Supports Grain Flow

Forging differs from procedures that remove material from a billet in that it changes the shape of the metal by plastic deformation. The deformation can result in a grain flow pattern following the general geometry of the component.

This feature can be of importance for parts produced by Closed die forging and exposed to repetitive mechanical loads. Components such as connecting rods and sections of the steering system are subjected to cyclic stresses during service; hence, the integrity of the material and its mechanical qualities are of primary importance.

The performance of a forged component is still dependent on the alloy, forging reduction, temperature, heat treatment, geometry, and quality controls. Thus, it is more accurate to consider forging as one part of the mechanical-property control system than to assume that all forged parts automatically perform better.

Heat Treatment Stabilizes Required Material Properties

After closed-die forging, many automobile components are heat treated to achieve the desired mix of strength, hardness, toughness, and other mechanical qualities.

Processes may involve normalizing, quenching, tempering, or other controlled heat treatments depending on material and specification. The proper cycle should be established according to the alloy and component requirements, rather than being implemented as a generic technique.

This step requires homogeneity of temperature, holding period, cooling conditions, and traceability. Then the heat-treatment records and mechanical tests can be used as evidence that the processed material conforms to the required standards.

Consistent Material Properties Support Reliable Machining

Heat treatment also has an effect on machining characteristics of a forged part. For example, excessive hardness fluctuation might lead to uneven cutting conditions and tool wear.

Thus, uniformity of material qualities over a Closed die forging production batch is advantageous for the final part as well as for the downstream machining process.That is another reason why forging quality in the automotive industry should be checked along the whole manufacturing route and not only by visual inspection of the forged shape.

What Should Automotive Manufacturers Check When Selecting a Forging Supplier?

Review Tooling and Engineering Capabilities

A capable supplier should be able to explain how the component will be designed and manufactured rather than simply quote a forging price.

Automotive buyers can ask whether the supplier has:

• 3D CAD/CAM capabilities

• Forging simulation capabilities

• CNC die machining equipment

• Appropriate forging press capacity

• Controlled billet heating

• Trimming and sizing equipment

• Heat-treatment capabilities

• Dimensional inspection equipment

• Material and mechanical testing capabilities

The exact equipment required for closed-die forging depends on the component, material, production volume, and customer specification.

Confirm Inspection and Traceability Procedures

Dimensional accuracy needs to be supported by inspection data. Depending on the component, inspection may include dimensional measurement, hardness testing, chemical composition verification, mechanical testing, surface inspection, and non-destructive testing.

Traceability is also important for automotive applications. Material certificates, heat numbers, production batches, heat-treatment records, inspection reports, and other quality documentation allow customers to connect finished components with their manufacturing history.

Rather than accepting general statements such as “100% quality inspection,” procurement teams should ask what characteristics are inspected, how frequently they are measured, what equipment is used, and how inspection results are recorded.

Evaluate Production Volume and Tooling Economics

Closed-die forging generally involves higher initial tooling investment than some low-volume manufacturing methods. The economics become more attractive when the same component is produced in larger quantities because tooling costs can be distributed across many parts.

For this reason, buyers should evaluate tooling cost together with the following:

• Expected annual volume

• Part weight

• Material utilization

• Machining requirements

• Tool life

• Cycle time

• Scrap rate

• Required inspection

• Expected component service life

A supplier that can optimize the forging design and reduce downstream machining may provide a better overall production cost even if its initial tooling quotation is not the lowest.

Conclusion

Closed die forging achieves high precision in automotive parts through a combination of accurate die design, controlled billet preparation, stable heating, predictable material flow, repeatable press operation, and appropriate post-forging processes. Precision is therefore not the result of a single machine or manufacturing step. It comes from controlling the entire process chain and verifying the finished component against defined engineering requirements.

For automotive manufacturers, the value of the process extends beyond dimensional accuracy. Properly controlled forging can produce repeatable geometries, support favorable material flow, reduce unnecessary machining, and provide a practical production route for high-volume components such as connecting rods, steering knuckles, hubs, and other structural or drivetrain parts.

Shaanxi Welong Int'l Supply Chain Mgt Co., Ltd. provides customized metal-component manufacturing solutions for industrial customers. With more than 20 years of industry experience and quality-management certifications, including ISO 9001:2015 and API-7-1, Welong supports customers with forging, casting, and machining capabilities. For automotive projects requiring closed die forging, the company can coordinate tooling, material processing, precision manufacturing, and inspection requirements according to the component design and project specifications. For more information or to discuss your specific requirements, contact Welong at info@welongpost.com.

FAQ

1: What are the main advantages of closed die forging for automotive parts?

Closed die forging offers high precision, superior mechanical properties, consistency in production, and cost-effectiveness for high-volume manufacturing of automotive components.

2: How does closed die forging achieve tight tolerances in automotive parts?

Tight tolerances are achieved through precision die design, controlled material flow during forging, and post-forging operations such as trimming and coining.

3: Why is closed die forging preferred for producing complex geometries in automotive components?

Closed die forging allows for the creation of intricate shapes and internal structures through carefully designed dies and controlled material flow, which would be difficult to achieve with other manufacturing methods.

4: How does closed die forging contribute to minimizing waste in automotive part production?

By utilizing near-net-shape production techniques, optimized die design, and precise process control, closed die forging significantly reduces material waste and the need for extensive machining.
