The Advantages of Integrating CNC Machining with Forging

Combining​​​​​​​ Forging with CNC machining allows manufacturers to use two complementary manufacturing processes in a single production strategy.CNC machining (Computer Numerical Control) takes material away from a blank, which is shaped in a near-net shape using forging—applying controlled pressure to shape metal, creating a strong and directed grain structure. Instead of thinking of these processes as competing alternatives, engineers can assign the task to the process for which it is best suited. This approach is especially effective for components that require both reliable mechanical qualities and precision geometry. The combination can also decrease wasteful machining, enhance material utilization, and give a more practical method to manufacturing complicated metal components for demanding industrial applications.

Why Combine Forging and CNC Machining in One Manufacturing Route?

Use Forging for Strength-Critical Geometry

Forging is particularly useful if the mechanical performance of the completed component is an important design factor. Forging is the controlled plastic deformation of the work item. Depending on the material, the forging temperature, the reduction, the die design, and subsequent heat treatment, this deformation can help to produce a favourable grain flow and a generally homogenous internal structure.

That is why forged parts are often used for applications involving frequent loading, impact, pressure or severe service conditions. The final mechanical qualities do not depend on just the forging. Material Grade Forging Practice Heat treatment, cooling condition, inspection All the above affect the completed component.

The benefit to the engineer is that the forging operation can lay down the basic structural shape of a part before the CNC machining is employed to lay down its key characteristics.

Reserve Precision Features for CNC Machining

Forging can produce a part near to the final shape. However, the forged surfaces and dimensions may not be able to meet all the tolerances required by a final assembly. CNC machining is frequently better suited for features such as precise bores, threaded holes, sealing surfaces, bearing seats, keyways, and closely controlled mating dimensions.

This division of labour can improve the efficiency of the production process. Instead of machining a part from one solid piece, the maker begins with a forged blank that already has much of the shape needed. Then those portions requiring dimensional control and surface polish are machined on the CNC.

The outcome is not a forged component with machining on top of it. This is a production approach that has a planned forging and machining together from the beginning.

Balance Material Performance and Manufacturing Efficiency

The optimisation of material qualities and machining requirements is a significant benefit of an integrated process. CNC machining from bar stock or a large solid billet can produce very accurate components, but complex forms may require a significant amount of material removal.

A forged blank may reduce the quantity of material to be removed during machining. The actual savings depend on component geometry, forging tolerance, machining allowance, material, production volume and tooling design. Therefore, manufacturers need to consider material utilisation along the whole production path, rather than assume that forging always results in a cost reduction.

Even a small savings in machining time can be substantial in medium- to high-volume production when compounded across thousands of parts.

How Does Forging Influence the Performance of CNC-Machined Components?

Develop a Favourable Grain Flow

One of the most important metallurgical benefits of forging is the ability to regulate grain flow. In a regulated forging procedure the grain structure can assume the general shape of the component as the metal is plastically deformed.

This can be beneficial for some load-bearing components, as the grain flow can be more appropriately matched to the shape and expected loading of the component. The advantage is mostly dependent on the forging direction and part design, and the relationship of grain flow and principal stress should be taken into consideration by the engineers while constructing the forging process.

Any subsequent CNC cutting does not reproduce the grain structure. Instead, the forged material is exposed to obtain the final geometry. Therefore, the design and the machining plan should be produced together and not sequentially.

Support Consistent Mechanical Properties

A homogeneous structure of material can be obtained with a well-regulated forging, and some discontinuities inherent to the original billet can be reduced. In appropriate materials, plastic deformation may consolidate some internal porosity or void-like discontinuities during forging.

That’s not to say that forging gets rid of all internal defects. Inclusions, cracks and other production and material-related problems still may arise and require the necessary controls and inspection. There may consequently be a requirement for material certification, process control, heat treatment records and nondestructive testing for essential applications.

CNC machining is a good addition to this procedure since it will provide accurate final dimensions without affecting the basic material qualities established during forging.

Achieve the Required Surface Finish

Surface condition is provided differently by forging and CNC machining. Forging gives the basic shape, while CNC machining can finish the surface in specified functional regions.

For instance, a part can need a precision bearing seat, a regulated sealing face, or a machined bore. These qualities may not be achievable directly by forging alone. These sections can be machined to the desired specification by CNC turning, milling, drilling, boring, tapping or other processes.

Thus the final surface quality should be determined by measurable standards like dimensional tolerance, surface roughness, flatness, concentricity or positional tolerance and not by general statements that one technique automatically results in a “better surface”.

What Does the Integrated Forging and CNC Process Look Like?

Step 1: Review the Component Drawing

The process should begin with an engineering review of the part drawing or 3D model. Critical dimensions, material requirements, tolerances, surface finishes, heat treatment, inspection requirements, and production quantity should all be considered.

At this stage, the manufacturer can identify which features are suitable for forging and which must be completed through machining.

A good process plan may also identify dimensions that should remain as forging features and dimensions that require CNC finishing. This helps prevent unnecessary machining and allows the forging die to be designed with the downstream machining process in mind.

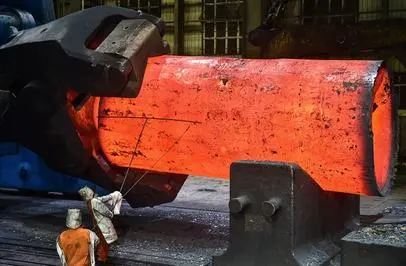

Step 2: Produce the Forged Blank

The selected material is prepared according to the required forging process. Depending on the component, this may involve open-die forging, closed-die forging, or another suitable forging method.

The forging operation establishes the approximate shape and volume of the component. The manufacturer must control factors such as material heating, deformation, die filling, forging reduction, cooling, and subsequent heat treatment according to the material and product requirements.

The forged blank is then inspected before it moves to machining.

Step 3: Machine Critical Features by CNC

Once the forged blank meets the applicable requirements, CNC machining can be used to finish the component.

Typical operations may include:

• CNC turning

• CNC milling

• Drilling

• Boring

• Threading

• Reaming

• Keyway machining

• Precision facing

• Multi-axis contour machining

The exact sequence depends on component geometry and the required tolerances. Datum selection is particularly important because the machining setup must establish reliable references for the final dimensions.

Step 4: Perform Final Inspection

Inspection should verify that the finished component conforms to the approved drawing and specifications. Depending on the application, this may include dimensional inspection, hardness testing, chemical composition verification, surface inspection, or nondestructive testing.

For critical components, customers may also require material certificates, heat treatment records, inspection reports, or traceability documentation.

This final verification is essential because combining forging and CNC machining does not automatically guarantee quality. The entire manufacturing chain must be controlled.

Which Components Are Good Candidates for Forging Plus CNC Machining?

Aerospace and High-Performance Components

Aerospace components often require a combination of strength, controlled weight, dimensional accuracy, and repeatable manufacturing. Depending on material and application, forged blanks followed by precision machining can be suitable for structural and rotating components.

The key advantage is that the forging stage can establish the structural form while CNC machining produces critical interfaces and complex features. Aerospace applications also place strong emphasis on traceability, process control, inspection, and documentation, making supplier quality systems an important part of procurement decisions.

Automotive and Transportation Components

The automotive industry provides many examples of components where forging and machining can complement each other. Crankshafts, connecting rods, steering components, transmission components, and other load-bearing parts may require substantial mechanical strength together with precisely controlled interfaces.

Forging can establish the primary component shape, while CNC machining can finish bores, faces, threads, and mating surfaces. In high-volume production, the ability to reduce unnecessary machining can also influence cycle time and material consumption.

The actual economic benefit depends on production volume, tooling investment, material price, machining time, and quality requirements.

Oil, Gas, and Heavy Industrial Equipment

Oil and gas equipment often includes components exposed to pressure, mechanical loading, temperature variations, and demanding service environments. Examples may include valve components, pump parts, shafts, and other pressure- or load-bearing metal components.

For these applications, the combination of forging and CNC machining can provide a practical balance between structural material performance and precision manufacturing. However, corrosion resistance, pressure performance, temperature capability, and material compatibility must be evaluated according to the specific application rather than attributed to forging alone.

Where required, additional testing and documentation can be incorporated into the manufacturing plan.

What Should Buyers Check Before Ordering Forged and CNC-Machined Parts?

Confirm Material and Heat Treatment Requirements

The material grade should be clearly specified before production begins. Depending on the application, buyers may also need to define heat treatment conditions, hardness ranges, mechanical property requirements, and applicable material standards.

Material selection and heat treatment can have a major influence on the performance of the finished component, so they should not be treated as secondary details.

Define Critical Machining Tolerances

Not every dimension requires the same tolerance. Buyers should identify critical dimensions and functional interfaces on the drawing so that the manufacturer can allocate machining operations appropriately.

For example, bearing seats, sealing surfaces, mounting holes, and mating diameters may require tighter control than non-functional external surfaces.

Clearly defined tolerances also help manufacturers estimate machining time and determine the appropriate CNC equipment and inspection methods.

Ask About Inspection and Traceability

For industrial components, quality documentation can be just as important as the physical part. Depending on the project, buyers may request material certificates, dimensional inspection reports, heat treatment records, hardness results, nondestructive testing reports, or other quality documents.

Traceability requirements should be established before production rather than added after the parts are completed.

Evaluate the Supplier's Complete Process

A supplier should be evaluated on more than its ability to operate a CNC machine or produce forged blanks. The most useful question is whether the supplier can control the complete manufacturing route.

This includes engineering review, material sourcing, forging, heat treatment, machining, inspection, documentation, packaging, and delivery coordination.

For customised components, buyers should also ask how the supplier handles drawing changes, sample approval, production feedback, and quality issues. These factors can have a direct effect on project risk and delivery consistency.

Why Is Process Integration Valuable for Customised Metal Components?

The greatest value of combining forging and CNC machining is not simply that two technologies are used on the same part. The real advantage comes from coordinating them around the component's functional requirements.

A forged blank can provide a strong starting geometry, while CNC machining can focus on the dimensions that require the highest precision. This can reduce unnecessary material removal and create a more controlled manufacturing route.

For custom components, this approach is especially useful when the design contains irregular external geometry together with precision-machined interfaces. Instead of forcing one manufacturing method to produce every feature, engineers can use each process where it provides the greatest practical benefit.

The final process should always be selected according to the part geometry, material, quantity, tolerance, performance requirements, and total manufacturing cost. In some cases, machining from solid material may still be the better choice, particularly for low-volume parts or simple geometries. In other cases, casting, additive manufacturing, or another forming method may be more appropriate.

The objective is therefore not to claim that forging plus CNC machining is always the best solution. The objective is to determine whether the combination provides a measurable advantage for the specific component.

Conclusion

Integrating forging with CNC machining provides a practical way to combine the structural advantages of metal forming with the dimensional control of precision machining. Forging can establish the primary geometry and favourable material structure, while CNC machining can produce critical dimensions, holes, threads, bores, and finished surfaces that require tighter control. When the two processes are planned as one manufacturing route, manufacturers can potentially reduce unnecessary material removal, improve production efficiency, and achieve a better balance between mechanical performance and dimensional accuracy.

The most effective results depend on proper material selection, forging design, heat treatment, machining strategy, inspection, and traceability. For buyers, choosing a supplier with experience across the complete process is therefore important.

Shaanxi Welong Int'l Supply Chain Mgt Co., Ltd., established in 2001, provides customised metal components for industrial applications and supports forging, casting, and machining requirements. The company states that it holds ISO 9001:2015 and API-7-1 certifications and can coordinate different manufacturing processes according to customer requirements. Its capabilities include customised metal parts, forging, casting, and machining, allowing customers to discuss the appropriate production route based on drawings, material specifications, quantities, tolerances, and inspection requirements.

For a customised project, providing a detailed drawing or 3D model, material grade, expected quantity, critical tolerances, heat treatment requirements, and inspection requirements can help the manufacturer evaluate the most suitable combination of forging and CNC machining before production begins.We've worked with more than 100 clients in Europe, North America, and Asia in the past. To find out more, email us at info@welongpost.com.

FAQ

1: What are the main advantages of integrating CNC machining with forging?

The main advantages include enhanced material properties, improved dimensional accuracy, and increased production efficiency.

2. How does forging improve the quality of CNC machined parts?

Forging optimizes grain structure, reduces internal defects, and enhances surface integrity, resulting in stronger and more durable parts.

3: Which industries benefit most from this integration?

The aerospace, automotive, and oil and gas industries benefit significantly from the integration of forging and CNC machining.

4: Can the integration of forging and CNC machining reduce production costs?

Yes, it can reduce costs by minimizing material waste, improving efficiency, and reducing the need for multiple setups.
