Sand Casting: Types and Applications

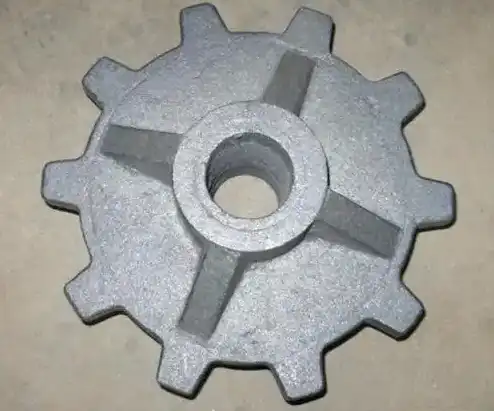

Sand casting is a versatile and widely used manufacturing process that has been employed for centuries to create complex metal components. This traditional method involves pouring molten metal into a sand mold, allowing it to solidify, and then breaking away the mold to reveal the finished product. Sand casting offers numerous advantages, including cost-effectiveness, flexibility in design, and the ability to produce both small and large parts. In this comprehensive exploration of sand casting, we will delve into its various types, applications, and the intricate processes involved. From the selection of sand materials to the finishing techniques, we'll uncover the intricacies that make sand casting a crucial technique in modern manufacturing. Whether you're an industry professional or simply curious about metalworking processes, this article will provide valuable insights into the world of sand casting and its significance in shaping our industrial landscape.

What are the different types of sand used in sand casting?

Green Sand Casting

Green sand casting is one of the most common and traditional methods in sand casting. This process utilizes a mixture of silica sand, clay, water, and other additives to create a moldable material. The term "green" refers to the moisture content in the sand, not its color. Green sand casting offers several advantages in the sand casting process. It is cost-effective, as the sand can be reused multiple times, making it an economical choice for high-volume production. The process is also relatively quick, allowing for faster production cycles. Green sand molds can accommodate a wide range of metals, including iron, steel, aluminum, and copper alloys. However, it's important to note that green sand casting may have limitations in terms of surface finish and dimensional accuracy compared to other sand casting methods.

Resin Sand Casting

Resin sand casting is another significant type of sand casting that offers improved precision and surface finish compared to green sand casting. In this method, the sand is mixed with a resin binder, which hardens when exposed to a catalyst or heat. This creates a more rigid mold that can withstand higher temperatures and pressures during the casting process. Resin sand casting is particularly useful for producing complex parts with fine details and tight tolerances. The enhanced strength of the mold allows for the casting of larger and heavier parts. Additionally, resin sand molds can be stored for longer periods before use, providing flexibility in production scheduling. While resin sand casting may be more expensive than green sand casting, it often results in fewer defects and less post-casting machining, potentially offsetting the higher initial costs.

Sodium Silicate Sand Casting

Sodium silicate sand casting, also known as water glass casting, is a specialized type of sand casting that offers unique advantages. In this process, sodium silicate is mixed with sand to create the mold. The mixture is then hardened by exposing it to carbon dioxide gas, which causes a chemical reaction that solidifies the mold. This method is particularly useful for producing large castings with complex geometries. Sodium silicate sand casting provides excellent dimensional accuracy and surface finish, often surpassing that of green sand casting. It's also environmentally friendly, as the sand can be easily reclaimed and reused. However, this process requires specialized equipment for CO2 gassing and may have longer cycle times compared to other sand casting methods. Despite these considerations, sodium silicate sand casting remains a valuable technique in the sand casting repertoire, especially for applications requiring high precision and intricate details.

How does the sand casting process work step by step?

Pattern Making and Mold Preparation

The sand casting process begins with the creation of a pattern, which is a replica of the desired final product, typically made from wood, metal, or plastic. This pattern is used to form the cavity in the sand mold where the molten metal will be poured. The pattern is slightly larger than the final product to account for metal shrinkage during cooling. Once the pattern is ready, it's placed in a molding box called a flask. Sand is then packed tightly around the pattern. In green sand casting, a mixture of sand, clay, and water is used, while in resin sand casting, sand mixed with resin binders is employed. The sand is compacted to ensure it captures all the details of the pattern. After the sand is firmly packed, the pattern is carefully removed, leaving a cavity in the shape of the desired part. This step is crucial in the sand casting process as it determines the final shape and surface quality of the casting.

Core Installation and Mold Assembly

After the main cavity is formed, the next step in the sand casting process often involves the installation of cores. Cores are pre-formed sand shapes that are placed inside the mold cavity to create internal features or hollow sections in the casting that cannot be formed by the pattern alone. These cores are typically made from sand mixed with binders and are hardened before use. Once the cores are in place, the mold is assembled. This usually involves putting together two halves of the mold, known as the cope (top) and drag (bottom). The mold halves are aligned using guide pins to ensure proper positioning. At this stage, the gating system is also incorporated into the mold. This system includes the sprue (the main channel through which molten metal is poured), runners (channels that distribute the metal), and risers (reservoirs of molten metal that feed the casting as it shrinks during solidification). The assembly of these components is critical in ensuring that the molten metal flows smoothly and completely fills the mold cavity during the pouring process.

Pouring and Solidification

The pouring and solidification stage is where the sand casting process truly comes to life. Once the mold is prepared and assembled, molten metal is poured into the mold through the gating system. The type of metal used can vary widely, including iron, steel, aluminum, copper alloys, and more, depending on the specific requirements of the final product. The temperature of the molten metal is carefully controlled to ensure proper fluidity and to prevent defects in the casting. As the metal flows into the mold cavity, it begins to cool and solidify. The rate of cooling is crucial and can affect the final properties of the casting. Faster cooling generally results in finer grain structures and higher strength, while slower cooling can produce larger grains and improved ductility. The solidification process can take anywhere from a few minutes for small parts to several hours for larger castings. During this time, the metal contracts as it cools, which is why the pattern is made slightly larger than the desired final product. Once the metal has completely solidified, the sand mold is broken away to reveal the finished casting, ready for post-processing and finishing operations.

What are the key applications and advantages of sand casting in manufacturing?

Automotive and Heavy Machinery Components

Sand casting plays a crucial role in the automotive and heavy machinery industries, producing a wide range of components that are essential for these sectors. In the automotive industry, sand casting is used to manufacture engine blocks, cylinder heads, transmission cases, and various other parts that require complex geometries and high strength. The versatility of sand casting allows for the production of both small, intricate parts and large, heavy components. For heavy machinery, sand casting is employed to create robust parts such as pump housings, valve bodies, and gear casings. The ability to cast large, complex shapes makes sand casting particularly suitable for producing components that would be difficult or cost-prohibitive to manufacture using other methods. Moreover, sand casting can accommodate a variety of metals, including cast iron, steel, and aluminum alloys, which are commonly used in these industries. The process also allows for the integration of cores, enabling the creation of internal passages and cavities that are crucial for many automotive and machinery components.

Architectural and Artistic Applications

Beyond industrial applications, sand casting has found a significant place in architectural and artistic spheres. In architecture, sand casting is used to create decorative elements such as ornate railings, doorknobs, light fixtures, and even structural components like columns and brackets. The ability to produce detailed, custom designs makes sand casting an ideal choice for creating unique architectural features that blend functionality with aesthetics. In the realm of art, sand casting offers artists a medium to express their creativity on a grand scale. Sculptors use sand casting to produce large metal sculptures, often in bronze or aluminum. The process allows for the replication of intricate textures and fine details, making it possible to create highly expressive and visually striking artworks. Sand casting also plays a role in historical preservation, enabling the reproduction of antique metal components for restoration projects. The versatility of sand casting in these applications stems from its ability to handle complex shapes, its scalability from small decorative items to monumental sculptures, and the wide range of metals that can be cast, including those with low melting points like aluminum and those with higher melting points like bronze.

Industrial Equipment and Infrastructure

Sand casting is extensively used in the production of industrial equipment and infrastructure components, contributing significantly to various sectors of manufacturing and construction. In the industrial equipment sector, sand casting is employed to produce large pump casings, valve bodies, and turbine components. These parts often require complex internal geometries and high strength, which sand casting can provide efficiently. The process is particularly valuable for creating large, one-piece components that would be difficult to manufacture using other methods. In infrastructure projects, sand casting is used to produce items such as manhole covers, drainage grates, and large pipe fittings. These components need to withstand harsh environmental conditions and heavy loads, making the durability of sand cast parts highly advantageous. The flexibility of sand casting also allows for the production of custom parts for specific infrastructure needs, such as unique bridge components or specialized industrial fittings. Additionally, sand casting is used in the energy sector for producing components for wind turbines, hydroelectric systems, and oil and gas equipment. The ability to cast large, complex shapes with high dimensional accuracy makes sand casting an indispensable process in these critical industries, contributing to the development and maintenance of vital infrastructure and industrial systems.

Conclusion

Sand casting remains a cornerstone of modern manufacturing, offering unparalleled versatility and cost-effectiveness in producing metal components across various industries. From automotive parts to artistic sculptures, the applications of sand casting are diverse and crucial. The process's ability to handle a wide range of metals, create complex geometries, and scale from small to large productions makes it an indispensable technique. As technology advances, sand casting continues to evolve, incorporating new materials and methods to enhance precision and efficiency. The enduring relevance of sand casting in today's manufacturing landscape underscores its importance as a fundamental metalworking process, poised to meet the challenges of future industrial demands.
