How Investment Casting Works for Precision Components?

Investment casting, also known as lost-wax casting, is a sophisticated manufacturing process that has revolutionized the production of precision components across various industries. This ancient technique, dating back thousands of years, has evolved into a cutting-edge method for creating intricate and highly accurate metal parts. Investment casting offers unparalleled advantages in terms of design flexibility, material versatility, and dimensional accuracy, making it an ideal choice for producing complex components with tight tolerances. The process involves creating a wax pattern of the desired part, encasing it in a ceramic shell, melting out the wax, and then pouring molten metal into the resulting cavity. This method allows for the production of components with exceptional surface finish, intricate geometries, and minimal post-processing requirements. As industries continue to demand higher precision and performance from their components, investment casting has emerged as a go-to solution for manufacturers seeking to meet these exacting standards while maintaining cost-effectiveness and efficiency.

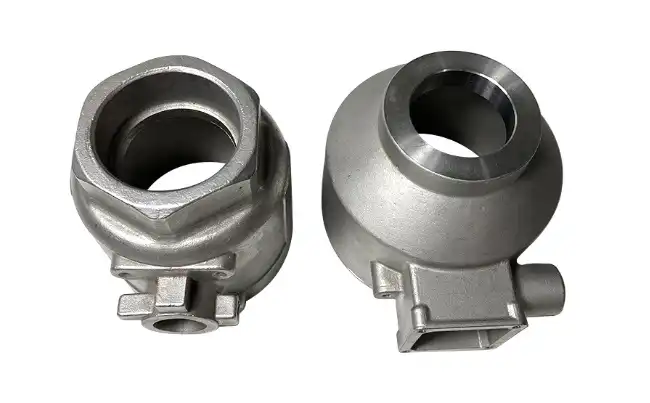

What are the key steps in the investment casting process?

Pattern Creation

The investment casting process begins with the creation of a wax pattern that is an exact replica of the desired final component. This pattern is typically produced by injecting molten wax into a metal die or through 3D printing techniques. The wax used can vary depending on the specific requirements of the casting process, such as middle-temperature wax or high-temperature wax for the silica sol investment casting process, or low-temperature wax for the water-glass investment casting process. The choice of wax and pattern creation method is crucial as it directly impacts the accuracy and surface finish of the final cast component.

Shell Formation

Once the wax pattern is created, it undergoes a series of dipping and stuccoing processes to form a ceramic shell around it. This shell is built up layer by layer, with each layer being allowed to dry before the next is applied. The materials used for the shell can vary, but typically include a mixture of fine ceramic particles and a binder. In the silica sol investment casting process, silica-based materials are used, while the water-glass investment casting process utilizes sodium silicate as the binder. The shell formation is a critical step in the investment casting process, as it must be strong enough to withstand the high temperatures of molten metal while also being able to capture fine details from the wax pattern.

Wax Removal and Metal Pouring

After the ceramic shell has fully dried and cured, the wax pattern is melted out, typically in a high-temperature autoclave. This leaves a hollow ceramic mold that perfectly mirrors the shape of the desired component. The mold is then preheated to a specific temperature before molten metal is poured into it. The choice of metal can vary widely, including carbon steel, stainless steel, alloy steel, super-alloy steel, nickel-based cast super-alloys, Monel metal, cobalt-based cast super-alloys, or other materials as requested by customers. The pouring process must be carefully controlled to ensure complete filling of the mold and to minimize defects in the final casting.

How does investment casting achieve high precision in component manufacturing?

Material Selection and Control

The precision of investment casting begins with the careful selection and control of materials used throughout the process. This includes the wax for pattern making, the ceramic materials for shell formation, and the metal alloys for casting. Each material is chosen based on its specific properties and how they contribute to the overall accuracy of the final product. For example, the wax used must have low shrinkage rates and good dimensional stability to ensure the pattern maintains its shape. Similarly, the ceramic shell materials must have consistent thermal properties to prevent warping or cracking during the casting process. The metal alloys are selected not only for their mechanical properties but also for their ability to flow and fill intricate mold cavities without defects.

Advanced Process Control

Investment casting achieves high precision through rigorous process control at every stage. This includes maintaining precise temperatures during wax pattern creation, carefully controlling the thickness and composition of each ceramic shell layer, and ensuring optimal pouring temperatures and rates for the molten metal. Advanced technologies such as computer-controlled dipping systems, automated shell building processes, and sophisticated furnace controls all contribute to maintaining consistency and accuracy throughout the casting process. These controls allow investment casting to achieve dimensional tolerances as tight as CT5 to CT9, making it suitable for producing components with complex geometries and tight specifications.

Finishing and Quality Control

The precision of investment cast components is further enhanced through careful finishing and stringent quality control measures. After casting, parts may undergo various finishing processes such as shot blasting, galvanizing, polishing, painting, passivating, pickling, or powder coating to achieve the desired surface finish and protective properties. Each step is carefully controlled to maintain the dimensional accuracy of the part. Quality control measures, including dimensional inspections, material testing, and non-destructive evaluations, are implemented throughout the process to ensure that each component meets the required specifications. This comprehensive approach to precision manufacturing allows investment casting to produce components with exceptional accuracy and consistency, even for large production runs of up to 40 tons per month.

What are the advantages and applications of investment casting in various industries?

Design Flexibility and Complex Geometries

One of the primary advantages of investment casting is its ability to produce components with complex geometries that would be difficult or impossible to achieve with other manufacturing methods. This process allows for the creation of intricate internal passages, thin walls, and fine surface details without the need for expensive tooling or extensive machining. This design flexibility makes investment casting ideal for industries such as aerospace, where components like turbine blades require complex shapes for optimal performance. The automotive industry also benefits from this capability, using investment casting to produce engine components, transmission parts, and structural elements that require high strength-to-weight ratios and complex designs.

Material Versatility and Performance

Investment casting can be used with a wide range of materials, including various grades of steel, super-alloys, and non-ferrous metals. This versatility allows manufacturers to select the optimal material for each application, balancing factors such as strength, weight, corrosion resistance, and thermal properties. For example, nickel-based super-alloys cast through the investment process are commonly used in high-temperature applications in the aerospace and power generation industries. The medical industry leverages the material versatility of investment casting to produce implants and surgical instruments from biocompatible alloys. The ability to cast a wide range of materials with high precision makes investment casting a valuable process across diverse industrial sectors.

Cost-Effectiveness for Complex Parts

While the initial tooling costs for investment casting can be higher compared to some other manufacturing methods, it becomes highly cost-effective for producing complex parts, especially in medium to large production volumes. The process requires minimal machining after casting, reducing overall production time and material waste. This is particularly advantageous for industries like oil and gas, where components such as valve bodies and pump impellers require high precision and complex geometries. The ability to produce near-net-shape parts also makes investment casting economical for industries like defense and industrial machinery, where components often have stringent performance requirements and complex designs. By reducing the need for extensive machining and assembly, investment casting can significantly lower the overall cost of component production while maintaining high quality and precision.

Conclusion

Investment casting stands as a pinnacle of precision manufacturing, offering unparalleled capabilities in producing complex, high-quality components across various industries. Its ability to combine design flexibility, material versatility, and dimensional accuracy makes it an indispensable process for modern manufacturing challenges. As technology continues to advance, investment casting is poised to play an even more crucial role in the production of precision components, driving innovation and efficiency in sectors ranging from aerospace to medical devices. The continuous refinement of this ancient technique ensures that investment casting will remain at the forefront of precision manufacturing for years to come.

For those seeking expert investment casting services, Shaanxi Welong Int'l Supply Chain Mgt Co.,Ltd. offers comprehensive solutions tailored to diverse industry needs. With over 20 years of experience and certifications including ISO 9001:2015 and API-7-1, Welong specializes in customized metal parts for various industries. Their capabilities extend beyond investment casting to include forging, sand casting, centrifugal casting, and machining. With a global customer base and a commitment to quality and innovation, Welong is dedicated to helping clients succeed in their manufacturing endeavors. For more information or to discuss your precision component needs, contact Welong at info@welongpost.com.
