Real-World Applications of Open Die Forging in Heavy Industry

Heavy industrial equipment often requires components that are large, highly loaded, and difficult to manufacture with conventional forming methods.​​​​​​​ open die forging​​​​​​​ is particularly suitable for these applications because it allows manufacturers to progressively deform heated metal between relatively simple dies rather than enclosing the entire workpiece in a shaped die cavity. The process is commonly used to produce large shafts, bars, blocks, rings, discs, hubs, and other preforms for demanding applications. Depending on the material and component design, forging can help develop a favorable grain flow and reduce internal discontinuities when combined with appropriate forging reductions, heat treatment, and inspection procedures. Industries including power generation, oil and gas, aerospace, marine engineering, mining, and heavy machinery use large forged components where material integrity and predictable mechanical performance are important. For OEMs and industrial buyers, however, the value of the process is not simply its ability to produce large parts. The selection of the forging route, material grade, forging ratio, heat treatment, dimensional requirements, and inspection plan all affect the final component.

Why Open Die Forging Is Well Suited to Large Industrial Components?

Improved Structural Integrity and Mechanical Performance

The ability to plastically deform the material under controlled conditions is one of the main reasons manufacturers use open die forging for heavy-duty components. In forging the workpiece is compressed and manipulated to obtain the desired dimensions and deformation.

If the process is well designed, this deformation can improve the material structure and create good grain flow around the part. The resulting properties are dependent on alloy, forging temperature, amount of deformation, reduction schedule, heat treatment, and subsequent machining and inspection.

For large shafts, rotor forgings, pressure-containing parts, and heavy-duty rings, these characteristics can be important, as the finished component may be subject to repeated mechanical loads, elevated temperatures, pressure, or rotational forces.

Therefore, it is more accurate to view forging quality as a consequence of the entire manufacturing route, rather than assuming that forging alone intrinsically imparts enhanced performance.

Flexibility for Large Sizes and Low-Volume Production

A dedicated closed-die process is not always suitable for large industrial parts. A large-shaped die can be a major tooling investment, and the economics are less attractive when volumes are low.

Open die forging provides more flexibility, as the workpiece is manipulated between dies and gradually brought up to the required dimensions. This makes the process useful for large, heavy components that may be produced in relatively low volumes.

Depending on the material and the forging equipment, manufacturers can produce components with a weight of several tonnes and considerable overall dimensions. However, the size that can actually be achieved depends on the press or hammer capacity, the furnace capability, the material grade, the component geometry, and the handling equipment of the supplier.

This flexibility is especially beneficial for power-generation equipment, marine machinery, oil and gas equipment, mining machinery, and other industrial fields that typically use customized components.

Efficient Material Use for Large Forged Preforms

Another consideration in choosing a forging route is material utilization. Open die forging can be used to produce a controlled preform that is then machined to final shape. While major machining may still be required, getting the forged shape right in the first place can reduce unnecessary stock and support more efficient material use.

This is especially true if the starting material is an expensive alloy, such as a nickel-based alloy, titanium alloy, or a high-performance specialty steel.

For OEM procurement teams, the material-saving benefit should be balanced with machining requirements, tolerances, production volume, and the cost of tooling. Open die forging is not necessarily the most cost-effective method for every component. It can be cost-effective for large, high-value parts where tool flexibility and component size are important factors.

Applications of Open Die Forging in Aerospace Manufacturing

Large Shafts, Bars, and Structural Preforms

Aerospace manufacturing has stringent requirements for material quality, traceability, dimensional control, and mechanical performance. Open die forging is used to produce large billets, bars, shafts, and other forged preforms, which are then machined or further formed.

For example, large cylindrical forgings can be a suitable starting form for shafts and other rotating components. The forging route can be designed to achieve the required mechanical properties of the material and the direction of the service loads to be expected.

The final aircraft component may pass through numerous manufacturing steps, and therefore the forged state should be viewed as part of the whole production path rather than as a standalone activity.

Titanium and Nickel-Based Alloy Forgings

Titanium alloys, nickel-based alloys, and high-strength steels are employed in aerospace components because of their combination of strength, temperature capability, corrosion resistance, and weight considerations.

These materials can be difficult to process as well. Their forging temperature windows, deformation behavior, and heat treatment requirements need to be carefully controlled.

Open die forging is a method for producing large titanium or nickel-based alloy stock and preforms prior to machining or subsequent forming. Process traceability and inspection are especially important for high-value aerospace materials, where material costs can be high and component failure can be serious.

Based on the component geometry and production volume, a manufacturer may combine open die forging with other forging or machining processes to obtain the final shape.

Turbine and Engine-Related Components

Rotating aerospace equipment requires components that can withstand high centrifugal loads, thermal cycling, and mechanical stress. Some shafts, discs, and other engine-related components may be made from large forgings, which can be used as starting material or as finished forms.

But not all turbine parts are made with open die forging. The correct process will depend on component geometry, alloy, dimensions, production volume, and desired properties. For complicated near-net-shape parts, closed-die forging or other specialized processes might be more suitable.

This difference matters to engineering buyers. Purchasers should be considering the entire manufacturing route and verifying which process is called out by the component drawing or applicable standard, rather than just asking if an aerospace component is “forged.”

Where Open Die Forging Fits in the Energy Industry?

Power Generation Shafts and Rotor Components

Industry uses some of the largest rotating components in power-generation equipment. Turbine and generator shafts, rotor components, and other heavy forgings have to be designed for severe combinations of mechanical load, temperature, and long operating cycles.

Open die forging is ideal for large cylindrical and rotational components, as the workpiece can be incrementally reduced and formed to the desired dimensions. According to the specifications, the forged component may then be subjected to heat treatment, rough machining, ultrasonic inspection, dimensional inspection, and final machining.

For critical power-generation components, the manufacturing record is as essential as the physical part. Buyers may request material certificates, heat-treatment records, mechanical test results, nondestructive testing reports, and dimensional inspection documentation.

Pressure Equipment and Large Industrial Forgings

Large forged rings, blocks, flanges, and other pressure-related components are also used in power plants. These parts can be in carbon steel, alloy steel, stainless steel, or special alloys, depending on the operating environment and design requirements.

Open die forging can provide the flexibility needed for large diameter or heavy sections that would be difficult or uneconomical to make with highly specialized tooling.

Verify the actual suitability of the process against the pressure rating, material specification, required heat treatment, dimensions, and applicable code or standard. For safety-critical equipment, forging selection should never be a matter of size but of engineering specifications.

Applications in Oil and Gas and Offshore Equipment

Large Flanges, Valve Bodies, and Pressure Components

Oil and gas equipment is subject to high pressure, temperature variations, corrosive conditions, and large mechanical loads. Therefore, large forged parts are often chosen when controlled mechanical properties and material integrity are needed.

Depending on the design, open die forging can be used for large blocks, bars, rings, and preforms, which are subsequently machined into components such as flanges, valve-related parts, and other pressure-service components.

The forging process is not the only element of quality. Material chemistry may also need to be controlled, together with heat treatment, hardness, tensile properties, impact performance where specified, and nondestructive examination.

For offshore or sour-service applications, the final component may also be subject to additional material and service-environment requirements.

Heavy Components for Drilling and Production Systems

Large, heavily loaded, metal parts are typical of oilfield equipment. Shafts, bodies, connectors, and other heavy sections may be required to use forged material. The component must be able to resist mechanical loads during drilling, production, or pressure control operations.

Open die forging is useful for large components or when volumes do not warrant dedicated tooling in a closed die.

For procurement teams, it is critical to provide the supplier the full technical requirement, not just the name of the product. The material grade, finished dimensions, forging condition, heat treatment, machining allowance, inspection requirements, and standards that apply can all impact the manufacturing route and quotation.

Marine, Mining, and Heavy Machinery Applications

Marine Propeller Shafts and Large Rotating Parts

For reliable operation under constant mechanical loads, marine propulsion systems require large shafts and other rotating parts. Large forged shafts are manufactured by controlled deformation followed by heat treatment and machining.

Open die forging is especially useful when shaft dimensions are large and the volume of production does not justify the expense of specialized tooling.

The completed shaft still needs to be machined and properly inspected. According to the specifications, the quality plan may include checks on dimensions, measurements of straightness, examination of surfaces, ultrasonic testing, and verification of mechanical properties.

Mining and Construction Equipment

Mining and construction equipment operates in abrasive and high-load environments where components are subject to impact, bending, torsion, and cyclic loading.

Large forged bars, shafts, blocks, and other components can be incorporated in heavy machinery where material durability and repairability are important. Customized large forgings may be useful for specialized equipment, replacement parts, and low-volume OEM programs.

In these applications, the component design and the choice of materials must be adapted to the real load conditions. The fact that a forged part is stronger than a conventional part does not mean that it is suitable. The complete design, heat treatment, hardness, and machining condition need to be assessed.

Renewable Energy Uses for Large Forged Components

Wind Turbine Shafts, Hubs, and Rings

Wind turbines have large rotating components that are subject to varying loads and long periods of service. Open die forging or other appropriate manufacturing processes may be used to produce large forged shafts, rings, hubs, and related components depending on the turbine design.

The advantage of open die forging in this case is the option to produce large dimensions and the individual production.

The manufacturers also need to control the dimensional accuracy, the material properties, the heat treatment, and the nondestructive testing, as the wind turbine components are expected to work for many years. Such requirements become especially important as the size of the component becomes larger.

Hydropower Equipment

Large metal parts such as shafts, hubs, rings, and other heavy rotating parts are also used in hydroelectric power plants. These parts are subject to high mechanical loads and long-term operation.

Selected large components and preforms, particularly where the required dimensions are outside the economical range of conventional shaped-die production, may be suitable for manufacture by open die forging.

The appropriate process depends on the last geometry and engineering requirements of the component. Large, simple, or rotational forms may be especially suitable for open die forging, while very complex geometries may require additional manufacturing operations.

What Buyers Should Check Before Ordering a Large Forging

Selecting a forging supplier should involve more than comparing the quoted price. For a large industrial component, buyers should evaluate whether the supplier can control the complete manufacturing process.

Important information to review includes:

• Material: Confirm the specified alloy, grade, and chemical composition requirements.

• Forging dimensions: Provide the starting dimensions, forged dimensions, and final machined dimensions where available.

• Component weight: Large forging weight affects equipment selection, material planning, handling, and transportation.

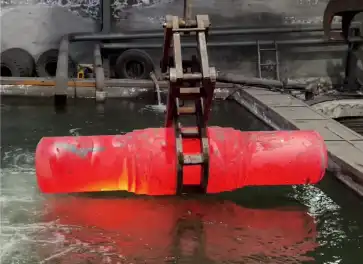

• Heat treatment: Confirm the required normalization, quenching and tempering, annealing, or other specified treatment.

• Mechanical properties: Review tensile strength, yield strength, elongation, hardness, and impact requirements where applicable.

• Nondestructive testing: Determine whether ultrasonic, magnetic particle, dye penetrant, or other inspections are required.

• Dimensional inspection: Large components may require detailed dimensional reports and machining allowances.

• Traceability: For critical industrial applications, material and process traceability should be maintained throughout production.

• Documentation: Clarify requirements for material certificates, heat-treatment records, inspection reports, and certificates of conformity.

For OEM projects, providing drawings and technical specifications at the quotation stage can significantly improve the accuracy of the supplier's assessment. It also allows the manufacturer to evaluate whether open die forging, another forging route, or a combination of processes is the most appropriate solution.

Conclusion

Open die forging remains an important manufacturing route for large and demanding industrial components because it combines size flexibility with controlled metal deformation. Its applications extend across power generation, oil and gas, aerospace, marine engineering, mining, heavy machinery, and renewable energy.

The strongest value of the process is not simply that it produces “stronger parts.” Its practical advantages include the ability to manufacture large sections, produce customized low-volume components, develop controlled grain flow, and create efficient preforms for subsequent machining.

At the same time, the final quality of a forged component depends on much more than the forging operation itself. Material selection, forging parameters, heat treatment, machining, nondestructive testing, dimensional inspection, and traceability all contribute to the finished product.

For industrial buyers, the right approach is therefore to evaluate open die forging as part of a complete manufacturing solution. A capable supplier should be able to review the component drawing, material requirements, dimensions, tolerances, inspection plan, and delivery requirements before recommending a production route.

Your Custom Metal Parts Partner: Forging Quality, Delivering Globally

Shaanxi Welong Int'l Supply Chain Mgt Co., Ltd. provides customized metal manufacturing solutions for industrial customers requiring forging, casting, and machining capabilities. The company states that it was established in 2001 and operates with ISO 9001:2015 and API-7-1 certifications.

Its manufacturing services cover a range of materials and component configurations, including large forged parts produced through open die forging. For OEM and industrial procurement projects, the manufacturing process can be evaluated around component drawings, material grades, dimensions, heat-treatment requirements, inspection specifications, and machining needs.

For a quotation, buyers can provide the component drawing or dimensions, material specification, estimated quantity, applicable standards, required inspection documents, and target delivery schedule. This information gives the engineering and production teams a practical basis for assessing manufacturability, selecting the appropriate process, and preparing a more accurate quotation. For inquiries, please contact us at info@welongpost.com.

FAQ

1: What is open die forging?

Open die forging is a manufacturing process where heated metal is shaped between non-enclosed dies, allowing for the production of large, complex parts with superior mechanical properties.

2: What are the main advantages of open die forging in heavy industry?

The main advantages include enhanced mechanical properties, flexibility in size and shape, and cost-effective production of large components.

3: How does open die forging contribute to the aerospace industry?

Open die forging is crucial for manufacturing critical aircraft components, producing turbine disks and shafts, and enabling customization for specialized aerospace applications.

4: What role does open die forging play in the energy sector?

Open die forging is essential for manufacturing power generation components, producing oil and gas industry equipment, and creating components for renewable energy applications.
