Precision Machining for Investment Cast Parts: Case Studies

​​​​​​​

Precision machining for investment cast parts represents a sophisticated manufacturing approach that combines the design flexibility of investment casting with the dimensional accuracy of CNC machining. This hybrid process begins with investment casting to create near-net-shape components, followed by precision machining operations to achieve final dimensional tolerances and surface finishes. Industrial makers are using investment cast machining more and more because it cuts down on waste while still being able to make complicated shapes like lost-wax casting can. The method works especially well for parts used in aircraft, cars (transmissions), and medical devices that need to have complex designs and close tolerances.

Understanding Investment Cast Machining: Fundamentals and Benefits

The Investment Casting and Machining Process Workflow

The lost-wax method, which is another name for investment casting, makes a ceramic mold by dipping a wax sample into liquid clay over and over again. The clay gets hard, and then the wax melts away, leaving an exact hole for the metal to melt into. Once the metal hardens and the clay shape comes off, the casting is a great base for further machining. With this mix, producers can get dimensional accuracy of ±0.002 inches while keeping the complicated interior shapes that make investment casting special.

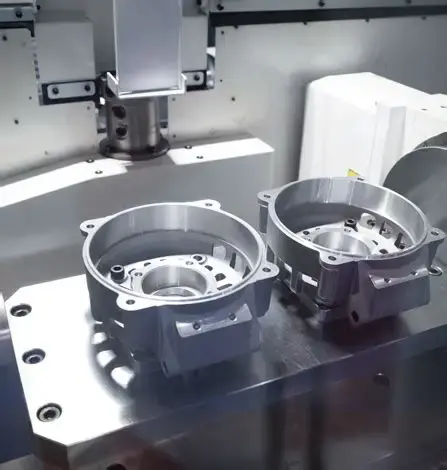

During the cutting phase, important areas and features are usually made smoother by CNC milling, turning, and drilling. Modern investment cast machining facilities can finish jobs in one week, while traditional casting methods usually take eight to sixteen weeks. This efficiency comes from automatic casting processes and quality control systems that keep an eye on both the casting and machining factors at the same time.

Material Considerations for Investment Cast Components

Stainless steel types 316 and 17-4 PH, titanium alloys, and nickel-based superalloys like Inconel 718 are just some of the materials that can be used in investment casting. Each material has its own problems when it comes to being machinable, which trained makers can solve by using different tools and setting different cutting parameters.

Here are the most important things to think about when considering a material for investment cast machining:

• Stainless Steel: Very resistant to rust, but it needs carbide tools and good coolant control to keep the work from hardening during cutting.
• Titanium Alloys: Have high strength-to-weight ratios that make them perfect for use in aircraft. However, they need to be carefully controlled at high temperatures and cut with sharp tools to keep their shape.
• Superalloys: For gas engine parts, superalloys work very well at high temperatures, but they need ceramic or CBN cutting tools because they are hard and don't melt.

The way a material is machined is directly affected by its qualities. Skilled providers change cutting speeds, feed rates, and tool geometries to get the best surface finish and most accurate measurements while keeping production costs as low as possible.

Advantages Over Traditional Manufacturing Methods

When compared to forging, sand casting, and die casting, investment casting has a lot of benefits. Investment cast parts start at 125 microinches Ra before they are machined, while sand-cast parts usually have surface finishes of 250 to 500 microinches Ra. Die casting works well for metals made of aluminum and zinc, but it can't handle materials that need to be heated up for aircraft and industrial uses.

Forged parts often need a lot of work to get them to the right size, which wastes 60–80% of the material that was used. Through controlled cooling and heat treatment methods, investment casting cuts this waste down to 10–20% while keeping the same mechanical qualities.

Precision Machining vs Alternative Fabrication Methods: Making the Right Choice

Cost Analysis and Production Volume Considerations

Depending on the difficulty of the part and the choice of material, investment cast machining starts to make sense when making between 100 and 10,000 parts per year. When a part has internal cooling passages, undercuts, or many features that would need to be put together in the standard way, the break-even analysis usually favors investment casting.

For complicated shapes, direct CNC cutting from solid billets costs 40–60% more because it takes longer and wastes more material. But CNC cutting may be cheaper on its own for simple shapes and low numbers of less than 50 parts. For each method, the choice matrix needs to take into account the costs of setup, the use of materials, and any extra work that needs to be done.

Lead Time Comparisons and Scalability Factors

Modern investment cast machining shops can make samples in two to three weeks and full production runs in four to six weeks. Forged parts usually need 12 to 16 weeks for new casting and their first production runs, so this schedule is pretty good. While additive manufacturing can make samples more quickly, it has trouble making more than 100 parts at once because of the time it takes to build and the work that needs to be done afterward.

When output numbers go up, the scalability benefit becomes clear. Investment casting tools can make thousands of parts with little wear, but 3D printing and powder metallurgy have limits on their capacity, which makes the cost of each part go up as the number of parts made increases.

Strategic Decision Framework for Method Selection

A methodical review method that compares technology needs with business concerns is helpful for procurement teams. The main things that go into the decision-making process are the required tolerances for dimensions, the surface finish, the qualities of the material, the production rate, and the total cost of ownership.

When parts need tolerances tighter than ±0.005 inches, internal features that are hard to see, or materials that can't be cast in a die, investment casting is the best way to go. The process is also very repeatable; for example, statistical process control data shows that Cpk values for key dimensions are always above 1.33 across production runs.

Case Studies: Real-World Applications of Precision Machining on Investment Cast Parts

Aerospace Component Manufacturing Success

A major aerospace company asked Welong to make turbine housing parts with complex internal cooling channels and fixing areas that had to be within 0.001 inch of each other. The first sand-cast version had problems with porosity and needed a lot of welding fixes that made the structure less strong.

Our engineering team rebuilt the part so that it could be cast in investment, building the cooling channels right into the shape of the casting. The next steps in the machining process involved working on the mounting surfaces and bolt holes. This made the needed tolerances and got rid of the need for weld repairs. When compared to the old sand casting method, the investment casting method reduced the weight of the parts by 15% and the time it took to make them by 8 weeks.

The results showed that the performance was very consistent; all 500 production parts met the standards for size and pressure tests. The customer said there were no problems in the field during 18 months of service, which proved the manufacturing method for other aircraft projects.

Automotive Transmission Components

A Tier 1 car supplier needed transmission valve bodies with complex internal pathways and exact mounting points. The old die-cast metal method restricted design options and needed extra drilling, which often caused problems with breaking through into nearby tunnels.

Welong's investment casting method made it possible to add complicated passage shapes straight to the casting, which cut down on the number of drilling operations needed by 12. The sealing surfaces and valve attachment points were the main areas of precision machining. Surface finishes of 32 microinches Ra and measurement limits of ±0.0005 inches were reached.

The new production process cut the time it took to put the parts together by 40% and got rid of the hydraulic leaking problems that were common with the old design. Quality measures showed that during the first year of production, warranty claims about the operation of the valve bodies dropped by 95%.

Industrial Equipment Applications

A big maker of industrial equipment needed parts for impellers that would be used in high-pressure pumps. Using standard manufacturing methods had been hard because of the difficult mix of materials that don't rust, complicated blade shapes, and strict balance needs.

The near-net-shape base for these impellers was made from investment casting, which captured the detailed blade shapes while minimizing material waste. After more than 5-axis machining, the hub connections and balance adjustment features were made even better to meet the final requirements.

When compared to soldered fabrications, the finished impellers worked better, with 60% less shaking and an average 18-month longer service life. Because of these efficiency gains, the user increased the investment cast machining method to include larger pump sizes.

Design Tips and Best Practices for Machining Investment Cast Parts

Optimizing Tolerances and Surface Finishes

For investment cast machining projects to go well, the tolerances need to be reasonable so that the project meets its useful needs and doesn't cost too much to make. For critical measurements that need tolerances tighter than ±0.002 inches, they should be set aside for machining. Non-critical features, on the other hand, can stay as-cast with normal investment casting tolerances of ±0.005 inches per inch.

The standards for surface finish have a direct effect on the time and cost of cutting. For most uses, a finish of 125 microinches Ra on as-cast surfaces is enough. However, useful surfaces may need to be machined down to 32 or 16 microinches Ra based on their sealing or bearing needs.

Material Selection and Machinability Optimization

The choice of material has a big effect on both the quality of the casting and the following cutting. For most commercial uses, types 316 and 17-4 PH stainless steel are strong enough to prevent corrosion and easy to work with. When it comes to aircraft parts that need to be stronger, titanium alloys Ti-6Al-4V and Ti-6Al-2Sn-4Zr-2Mo work better and are easier to machine.

When defining part shape, design engineers should think about how easy it will be to machine. For internal parts that need to be machined, there should be enough room for cutting tools and chip removal. To make sure the quality is always the same, blind holes that are deeper than three times their width may need special tools or changes to the design.

Common Design Pitfalls and Solutions

Investment cast machining can be made more difficult and expensive by a number of design factors. Sharp internal corners put a lot of stress on casts and make it hard for cutting tools to get to them. It is better for both casting quality and machining effectiveness to have interior corners with radii of at least 0.030 inches.

Changes in wall thickness can cause casting flaws like shrinking porosity in heavy areas. If you can keep the wall thickness the same or add feeding aids to heavy parts, you can avoid these flaws and make sure that the machining stock limits are always the same.

Draft angles help get rid of the casting, but they might not work with the final part's shape. Working with investment casting suppliers who have a lot of experience can help you get the best draft needs while keeping the useful surfaces by using smart machining processes.

Procuring Investment Cast Machining Services: How to Choose and What to Expect

Supplier Evaluation Criteria

To find the best investment cast machining provider, you need to carefully look at their professional skills, quality systems, and business factors. Dimensional inspection, material certification, and process control tools that make sure quality stays the same across production runs are all important technical factors.

Quality standards like AS9100 and ISO 9001:2015 give you peace of mind that your quality management is organized. But buying teams should also look at certain skills, like the accuracy of coordinate measuring machines, the ability to use statistical process control, and the presence of tracking systems that meet the needs of aircraft and medical devices.

Cost Structure and Lead Time Expectations

Costs for investment cast machining are usually broken down into parts for tools, casting, machining, and testing. The price of tools can be anywhere from $3,000 to $15,000, based on how complicated the part is and how many are needed each year. Precision casting is an investment that pays off with uniform part quality and longer tool life.

Costs of casting are mostly affected by the weight of the part, the choice of material, and things that make the process more difficult, like core needs and secondary operations. The cost of machining depends on how much material needs to be removed, how smooth the surface needs to be, and what the required standards for size are.

When estimating lead times, you should take into account the time it takes to make tools, check the first product, and plan production. Experienced sellers give thorough project timelines that make it clear which tasks are on the critical path and what options there are for speeding up the process if urgent needs arise.

Building Long-Term Partnership Benefits

When investment cast machining projects go well, they often turn into strategic partnerships that provide long-term value beyond just supplying parts. Experienced sellers offer design improvement suggestions that lower costs, make it easier to make, and keep the product's useful performance.

Long-term ties let suppliers keep focused tools and learn how to use processes in a way that is best for certain uses. This partnership method shortens wait times for repeat orders, gives priority scheduling when capacity is limited, and improves quality proactively based on feedback from the field.

Conclusion

You can make a lot of different things with investment cast machining because it gives you a lot of design freedom and the accuracy you need for tough industrial uses. The case studies show real benefits, such as shorter lead times, more consistent quality, and better component performance in the car, aircraft, and industrial equipment industries. Some things that can help you succeed are giving realistic design specs, choosing the right materials, and working with experienced sources who know how to meet both casting and cutting needs. Investment cast machining offers a dependable method for producing high-precision, cost-effective parts that meet international quality standards and can support complicated geometries that are hard to produce using other methods as global supply chains change.

FAQ

Q: What tolerances can be achieved with investment cast machining?

A: When features are made from investment cast, the standard deviation in size is between ±0.001 and ±0.002 inches. Standard deviation for as-cast surfaces is between ±0.005 inches per inch. With the right fixtures and inspection methods, critical measurements can hit ±0.0005 inches.

Q: How do surface finishes compare to other casting methods?

A: Starting at 125 microinches Ra before grinding, investment casting gives better surface finishes than sand casting or die casting. After more machining, useful surfaces can reach 16–32 microinches Ra, which is the same as parts made from solid billets.

Q: Can investment cast machining eliminate casting defects?

A: Most common casting flaws can be fixed with precision cutting, such as surface irregularities, size changes, and small holes in non-critical areas. But big problems inside the casting, like shrinking or inclusions, might need changes to the casting process instead of cutting fixes.

Q: What factors determine whether to choose investment cast machining over alternatives?

A: Part complexity, production rate, material needs, and dimensional tolerance standards are some of the most important things that go into making a choice. When tight specs are needed on certain features, investment cast machining is often the most cost-effective way to make parts with complex shapes in quantities of 100 to 10,000 per year.

Q: How do I source reliable investment cast machining suppliers?

A: Check out a supplier's quality certifications, technical skills, and knowledge in the same field as you. Check that the company has ISO 9001:2015 approval, the right inspection tools, and a history of meeting the needs of your business or application.

Partner with Welong for Superior Investment Cast Machining Solutions

Welong offers full investment cast machining services and has been helping aircraft, automobile, and industrial manufacturing companies around the world for over 20 years. Our plant is ISO 9001:2015 approved and can do both advanced casting and precise CNC machining to make parts that meet the strictest requirements. As a reliable investment cast machining provider, we offer complete solutions from design optimization to final testing. This makes sure that your important parts are always of high quality and delivered on time. Email our engineering team at info@welongpost.com to talk about your unique needs and find out how our proven skills can improve the performance of your supply chain while lowering the overall cost of the project.
