Metal Forging Process vs Die Forging: Key Differences Explained Simply

Metal forging is a manufacturing process that has been used for centuries to shape and strengthen metal components. As technology has advanced, different forging techniques have emerged, each with its own unique characteristics and applications. Two common methods in the industry are the traditional metal forging process and die forging. While both techniques involve shaping metal under pressure, they differ in several key aspects. This article aims to explain the differences between these two processes in simple terms, helping readers understand their distinct features, advantages, and applications. By exploring the nuances of metal forging and die forging, we'll provide valuable insights into how these methods contribute to the production of high-quality metal components across various industries.

What are the main differences between open die forging and closed die forging?

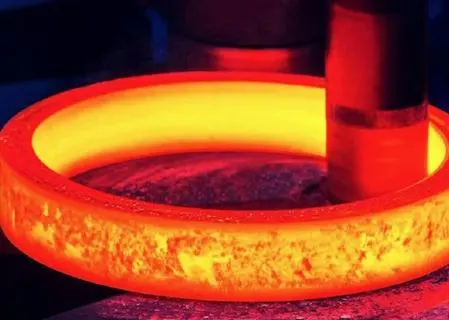

Process and equipment used in open die forging

Open die forging is a metal forging technique that uses flat or simple contoured dies to shape the workpiece. In this process, the metal is not completely confined by the dies, allowing for greater freedom of metal flow. The equipment used in open die forging typically includes hydraulic or mechanical presses, hammers, or upsetting machines. The workpiece is placed between the dies and repeatedly struck or pressed, with the operator manipulating the piece between blows to achieve the desired shape. This method is particularly useful for producing large, simple shapes or for preliminary shaping before closed die forging. Open die forging offers flexibility in terms of part size and geometry, making it suitable for custom or low-volume production runs in metal forging applications.

Process and equipment used in closed die forging

Closed die forging, also known as impression die forging, is a metal forging process that uses two or more dies with impressions that match the desired part shape. The workpiece is placed in the lower die, and the upper die descends, applying pressure to force the metal into the die cavities. This process typically requires more complex and expensive tooling compared to open die forging. The equipment used in closed die forging includes mechanical and hydraulic presses, hammers, and forging machines capable of exerting high pressures. Closed die forging allows for tighter tolerances, more complex geometries, and better surface finishes than open die forging. It is commonly used in high-volume production of metal components with consistent shapes and sizes, such as automotive parts, aerospace components, and industrial machinery elements.

Advantages and limitations of each forging method

Both open die and closed die forging have their unique advantages and limitations in the metal forging industry. Open die forging offers greater flexibility in terms of part size and shape, making it ideal for producing large, simple components or custom parts in small quantities. It also requires less expensive tooling and setup costs. However, open die forging typically results in less precise dimensions and may require more secondary machining. On the other hand, closed die forging produces parts with tighter tolerances, better surface finishes, and more complex geometries. It is more suitable for high-volume production and can result in less material waste. The main limitations of closed die forging include higher tooling costs, size restrictions based on available equipment, and less flexibility for design changes. Understanding these differences is crucial for selecting the appropriate metal forging method for specific applications and production requirements.

How does the metal flow differ in metal forging versus die forging?

Metal flow characteristics in traditional forging

In traditional metal forging, the flow of metal is less constrained compared to die forging. The workpiece is typically shaped using open dies or simple tools, allowing for greater freedom of metal movement. As the forging hammer or press applies force, the metal flows in multiple directions, filling the space between the dies and tools. This unrestricted flow can result in a more fibrous grain structure, which can enhance the mechanical properties of the forged part. However, it also means that achieving precise dimensions and complex shapes can be more challenging. The metal flow in traditional forging is largely controlled by the skill of the operator, who must manipulate the workpiece between strikes to achieve the desired shape. This process often requires multiple heating and forging cycles to gradually form the metal into the final shape.

Metal flow characteristics in die forging

Die forging, particularly closed die forging, offers more controlled metal flow compared to traditional forging methods. In this process, the metal is confined within the die cavities, which are precisely designed to match the desired part shape. As the dies close, the metal is forced to flow into these cavities under high pressure. This controlled flow allows for more complex geometries and tighter tolerances. The metal flow in die forging is primarily influenced by the die design, including factors such as draft angles, parting lines, and flash gutters. Proper die design ensures optimal metal flow, reducing the risk of defects such as laps or folds. The constrained nature of die forging also allows for better prediction and control of grain flow, which can be tailored to enhance the strength and performance of the forged part in specific directions.

Impact of metal flow on final product quality

The differences in metal flow between traditional forging and die forging significantly impact the quality of the final product. In traditional metal forging, the less constrained flow can result in a more uniform grain structure throughout the part, potentially enhancing overall strength and toughness. However, this method may require more secondary machining to achieve final dimensions and surface finish. Die forging, with its controlled metal flow, typically produces parts with more precise dimensions and better surface finish, reducing or eliminating the need for secondary operations. The ability to control grain flow in die forging allows for optimization of mechanical properties in critical areas of the part. Additionally, die forging often results in less material waste and can produce parts with more complex geometries. Understanding these metal flow characteristics is crucial for selecting the appropriate forging method based on the desired product quality, dimensional accuracy, and performance requirements.

What are the key factors to consider when choosing between metal forging and die forging?

Production volume and cost considerations

When deciding between metal forging and die forging, production volume is a critical factor to consider. Traditional metal forging methods, such as open die forging, are often more cost-effective for low to medium production volumes or for large, simple shapes. The tooling costs are generally lower, and the process offers more flexibility for design changes. However, as production volumes increase, die forging becomes more economical. While die forging requires higher initial tooling costs, it offers faster production rates and lower per-unit costs in high-volume scenarios. Die forging also typically results in less material waste and fewer secondary operations, further reducing overall production costs. It's important to consider the total lifecycle costs, including tooling, labor, material, and secondary operations, when comparing the two methods. For some applications, a combination of both techniques may be the most cost-effective solution, using traditional forging for initial shaping followed by die forging for final forming.

Part geometry and complexity requirements

The geometry and complexity of the desired part play a significant role in choosing between metal forging and die forging. Traditional metal forging methods are generally better suited for producing large, simple shapes or parts with basic geometries. They offer more flexibility in terms of part size and can accommodate a wide range of dimensions. However, achieving complex shapes or tight tolerances can be challenging and may require extensive secondary machining. On the other hand, die forging excels in producing parts with complex geometries, intricate details, and tighter tolerances. The precision of die forging allows for near-net-shape production, minimizing the need for secondary operations. When considering part geometry, it's important to evaluate factors such as undercuts, thin sections, and overall part complexity. Die forging may be the preferred choice for parts requiring consistent, repeatable geometries across high production volumes, while traditional forging might be more suitable for simpler shapes or custom, low-volume parts.

Material properties and performance requirements

The choice between metal forging and die forging also depends on the material properties and performance requirements of the final product. Traditional metal forging methods can often produce parts with a more uniform grain structure throughout, which can be beneficial for overall strength and toughness. This can be particularly advantageous for large parts or those subjected to multi-directional stresses. Die forging, however, offers greater control over grain flow and can be optimized to enhance strength in specific directions or areas of the part. This is particularly useful for components with critical stress points or those requiring directional strength properties. Die forging also typically results in a finer grain structure due to the higher deformation rates and more controlled process. When considering material properties, factors such as the type of metal, desired mechanical properties, and any heat treatment requirements should be taken into account. Some materials may be more suitable for one forging method over the other, and the chosen method should align with the performance requirements of the final product in its intended application.

Conclusion

In conclusion, both metal forging and die forging offer unique advantages and have their specific applications in the manufacturing industry. Traditional metal forging provides flexibility and cost-effectiveness for low to medium production volumes and simple shapes, while die forging excels in producing complex, high-precision parts in large quantities. The choice between these methods depends on factors such as production volume, part geometry, material properties, and performance requirements. Understanding the differences in metal flow, equipment, and process characteristics is crucial for selecting the most appropriate forging method for a given application. As technology continues to advance, both methods will likely see further improvements, expanding their capabilities and applications in various industries.

Global Metal Manufacturing Solutions Tailored to Your Needs

Shaanxi Welong Int'l Supply Chain Mgt Co.,Ltd. It is a leading provider of customized metal parts for various industries. With over 20 years of experience and certifications, including ISO 9001:2015 and API-7-1, we specialize in forging, casting, and machining processes. Our expertise covers a wide range of materials and techniques, ensuring high-quality products tailored to our customers' needs. We offer comprehensive services from design to delivery, with a focus on cost-effectiveness, quality control, and timely shipping worldwide. Our commitment to innovation and customer satisfaction has made us a trusted partner for over 100 international clients. Experience the Welong advantage in metal manufacturing and supply chain management. Contact us at info@welongpost.com to learn how we can support your project needs.

FAQ

Q: What is the main difference between metal forging and die forging?

A: Metal forging typically refers to traditional open die forging, while die forging usually implies closed die forging. The main difference is in the level of metal confinement during the shaping process.

Q: Which forging method is better for large parts?

A: Traditional metal forging, particularly open die forging, is generally better suited for large parts due to its flexibility in size and shape.

Q: Is die forging more expensive than traditional metal forging?

A: Initially, die forging has higher tooling costs, but it can be more cost-effective for high-volume production due to faster production rates and less material waste.

Q: Which forging method produces parts with tighter tolerances?

A: Die forging typically produces parts with tighter tolerances and better surface finish compared to traditional metal forging.

Q: Can complex shapes be achieved with traditional metal forging?

A: While traditional metal forging can produce a variety of shapes, complex geometries are more easily and precisely achieved through die forging.
