Forging vs. Casting: Which Manufacturing Process Delivers Better Performance

When manufacturers need to produce metal components with specific mechanical requirements, choosing the right production method is a critical decision.​​​​​​​ Forging ​​​​​​​and casting are two of the most established metal-forming processes, and both have been widely used across industries such as aerospace, automotive, energy, construction, and heavy machinery. However, these two methods create different material structures, performance characteristics, production costs, and application advantages.

The metal is forged or cast depending on the forming of the metal. Forging is the shaping of solid metal using mechanical force to make the grain more aligned and stronger. Casting involves pouring molten metal into a mould, which enables companies to create complex shapes with fewer design restrictions. Each method has its particular benefits, the best solution depending on strength needs, volume of manufacture, complexity of the part, operational circumstances and budget.

This article deals with the key differences between forging and casting from the view of the manufacturing process, mechanical performance, cost problems, production efficiency and possible applications. Understanding these differences enables engineers, procurement teams and manufacturers to identify the most suited process for their projects.

Understanding the Manufacturing Principles of Forging and Casting

How Forging Works in Metal Manufacturing

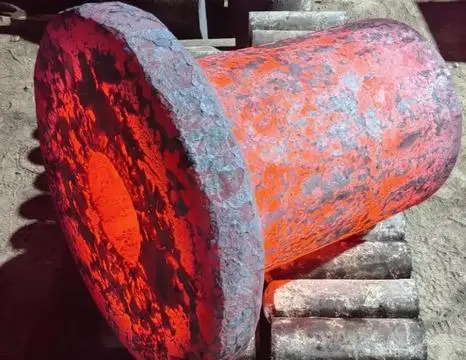

Forging is a metal forming process that uses compressive pressures to shape metal by hammers, presses or specialised forging equipment. The metal billet is heated to a point where it becomes more ductile and easier to deform during the process of forging. The material is then moulded under controlled pressure while preserving its internal structure.

One of the greatest benefits of forging is that it allows the grain flow of metal to be improved. When forging, force is utilised to deform the grain structure to the shape of the component, resulting in a more continuous and finer internal structure. Thus, the mechanical qualities such as tensile strength, fatigue life, impact strength and durability are improved.

Common forging processes include open die forging, closed die forging, and roll forging. Open-die forging is generally utilised for large industrial parts. Closed-die forging is favoured for making accurate forms with great repeatability. They are commonly used in industries where the reliability of the components is of high importance. Examples of these include aircraft production, oil and gas equipment, car parts and heavy industrial gear.

How Casting Produces Complex Metal Components?

Casting is a manufacturing method in which molten metal is poured into a carefully formed mould. Once the molten metal cools down and hardens, the finished component is taken out of the mould and is treated as per the needed requirements.

Casting, unlike forging, does not involve mechanical deformation. Instead, the final shape is formed directly in the mould design. This allows the production of very complicated geometries, internal cavities, and massive parts that may be difficult or impossible to forge.

There are many casting processes such as sand casting, investment casting, and die casting. Sand casting is used for huge, cheap parts, investment casting is great for dimensional accuracy, and die casting is perfect for producing small parts in high volumes.

Casting allows a high degree of design freedom, but, at times, the solidification process can lead to internal defects such as porosity, shrinkage voids or non-uniform grain structures. But contemporary casting technologies, better alloy development and sophisticated checking techniques have greatly improved casting quality.

Key Performance Differences Between Forging and Casting

Material Structure and Mechanical Strength Comparison

The performance of components is directly affected by the interior grain structure of metal. Forging usually gives better mechanical strength, as the manufacturing process compresses and aligns the material structure.

The grain flow turns continuous during forging and takes the shape of the component. This results in superior resistance to outside pressures as the inside structure supports the direction of applied loads. Because of this, forged parts generally have superior strength to weight ratios and better fatigue properties.

The grain structure in casting is developed as the liquid metal solidifies to form a portion. Advanced casting techniques can have a positive effect on grain refinement, but cast components do not often achieve the same level of directional grain alignment as forged parts.

Forging frequently offers a performance benefit for applications that experience repeated loads, vibration, impact or harsh operating conditions due to its stronger internal structure.

Load Resistance and Fatigue Performance

More often than not, it is repeated stress rather than a single excessive strain that causes a component to fail. Thus, resistance to fatigue is a key consideration in the choice of a production process.

Forged parts often perform better under cyclic loading, since the uninterrupted grain structure helps spread the load more uniformly throughout the part. This lowers the likelihood of crack onset and enhances long-term reliability.

Good design and manufacturing can still give good performance from castings. However, internal defects (such as tiny voids or inclusions) might act as stress concentrators under severe service conditions. Safety-critical applications often demand additional testing and quality control methods.

Industries including aircraft, power generation and oil and gas often employ forged components because failure avoidance and long service life are of importance.

Durability and Service Life Considerations

When comparing forging to casting, one of the most essential variables is durability. Parts used in challenging environments must survive mechanical stress, temperature variations, corrosion hazards and continuous operation.

Forged parts often have a longer life because they have fewer internal flaws and better structural integrity. Their increased strength means they can run under tough conditions with less maintenance.

Casting remains a good choice if the part’s shape is more important than the highest mechanical strength. The casting method is quite flexible. That is why many industrial components, machine housings, engine blocks and decorative pieces can be manufactured effectively.

It is contingent upon the environment you're operating in. A heavily pressured mechanical shaft and a complicated equipment enclosure may need entirely distinct production processes.

Cost, Production Efficiency, and Material Utilisation Analysis

Tooling Investment and Manufacturing Costs

The initial investment for forging may be more than for casting, particularly for components made using closed-die forging. The dies for forging must survive high temperatures and repeated mechanical pressure and so require tough materials and precision fabrication.

However, the higher initial cost of tooling can be more economical in long production runs. Forged parts often need less repair, replacement and maintenance in service; therefore, the whole lifecycle cost might be lower.

However, casting generally has lower startup costs, especially for prototypes, short runs or complexly shaped parts. Manufacturing costs can be reduced considerably if complex shapes can be produced with little machining.

Thus, it is not enough to compare the costs only on the basis of the initial production price. Engineers need to think about the long-term performance, maintenance requirements and total cost of ownership.

Production Speed and Manufacturing Volume

The production rate depends largely on the individual manufacturing method and the design of the component.

Once tooling is completed, closed-die forging can reach great efficiencies. Automated forging systems can create huge volumes of uniform components in relatively short cycle periods.

Casting is also very ideal for mass manufacturing, especially when manufacturers use automated processes for mould making and pouring. Thousands of components can be efficiently produced via die casting and other processes.

However, manufacturing speed should always be taken jointly with the quality criteria. A quicker production process doesn’t mean the best value if it requires more inspections, repairs or replacements later.

Material Efficiency and Waste Reduction

With businesses looking to reduce costs and improve sustainability, the use of materials is becoming increasingly crucial.

Forging is a material-efficient method, as it forms metal closer to the final component size. This decreases the amount of material machined away and minimises waste.

The added strength of forged parts also allows manufacturers to develop lighter parts without compromising performance. This benefit is especially helpful for aerospace and automobile manufacturing, since weight reduction is directly tied to efficiency.

Casting also allows for good material efficiency, as the molten metal may fill intricate patterns of the mould and decrease the need for machining. Casting operations often generate excess material that can be recycled and repurposed.

Choosing Between Forging and Casting for Different Applications

When Forging Is the Better Choice?

Manufacturers prefer forging when:

• High mechanical strength

• Good fatigue life

• Enhanced impact performance

• Long lifespan

• Dependable operation in harsh situations

Typical applications are aviation components, pressure equipment, automotive powertrain parts, industrial shafts and heavy machinery components.

The internal structure is improved by forging, which gives these applications significant dependability advantages.

When Casting Provides More Advantages?

When manufacturers require casting, it is generally due to:

• Complex forms

• Main components

• Internal channels or voids

• Reduced tooling costs

• Flexible design choices

Common casting uses include engine blocks, machine housings, pump bodies and decorative metal goods.

Casting allows engineers to build designs that would take numerous processes to manufacture if built by forging.

How Can Manufacturers Select the Right Metal Manufacturing Process?

The choice between forging and casting involves the examination of a number of technical and commercial parameters.

The first thing to think about is what kind of environment the component will be used in. Forging is often good for parts that may see significant stress or vibration or repeated loading. Some components may benefit from casting if they need complex geometry.

Another crucial factor is production quantity. The larger the production volume, the more the investment in forging tools, and the smaller the batch, the more the flexibility of casting may be used.

The ultimate decision should also be affected by material selection, dimensional requirements, inspection standards and lifecycle costs.

An expert fabricator can assist firms in balancing the need for performance with the need for production efficiency. A supplier who is experienced in both forging and casting can advise you on what is best for the application.

Conclusion

When considering forging vs casting, there is no single production process that works for all applications. Each method has its own merits depending on the performance needs, design complexity, production volume and budget constraints.

Forged parts have higher mechanical strength, better grain structure, good fatigue resistance, and long-term durability. These benefits make it the material of choice for essential components used in aerospace, automotive, energy and heavy industrial applications.

Casting gives more design freedom and is frequently cheaper for complex shapes or when producing in smaller quantities. With the latest technology, the casting performance has been further improved, and it is still an indispensable manufacturing method in many sectors.

The best manufacturing decision is knowing what each project needs. All factors such as operating circumstances, material qualities, production goals and lifecycle costs should be thoroughly assessed.

Need professional advice on how to choose the correct metal manufacturing process? Shaanxi Welong Int’l Supply Chain Mgt Co., Ltd. offers a one-stop solution for forging, casting and machining. With more than 20 years of industry experience, Welong provides customers with reliable manufacturing capabilities, quality control and customised solutions for demanding industrial applications. With their knowledge of various materials and production procedures, they are a valued partner of the companies that require high-performance metal components.Send us an e-mail at info@welongpost.com if you require to conversation around your needs or discover out more.

References

1. Smith, J. R. (2019). Advanced Manufacturing Processes: Forging vs. Casting. Journal of Materials Engineering and Performance, 28(4), 2145-2160.

2. Johnson, A. K., & Brown, L. M. (2020). Comparative Analysis of Mechanical Properties in Forged and Cast Components. International Journal of Metallurgy and Materials Science, 15(2), 78-93.

3. Davis, R. T. (2018). Cost-Effectiveness in Metal Forming: A Study of Forging and Casting Processes. Manufacturing Technology Today, 7(3), 112-125.

4. Thompson, S. E., & Wilson, P. D. (2021). Microstructural Evolution in Forged and Cast Alloys: Implications for Performance. Materials Science and Engineering: A, 765, 138276.

5. Liu, Y., & Zhang, X. (2017). Sustainability in Manufacturing: Comparing Material Efficiency of Forging and Casting. Journal of Cleaner Production, 165, 1235-1247.

6. Anderson, K. L., & Roberts, C. J. (2022). Industry 4.0 and the Future of Metal Forming: Innovations in Forging and Casting Technologies. Advanced Manufacturing Processes, 11(4), 302-317.
