Understanding the Metal Forging Process: From Billet to Finished Part

It's not clear how to make metal forging. It takes flat pieces of raw metal and shapes them into strong, clean parts. Today, a lot of businesses still use this old method, which has been made better over the years. It takes a lot of carefully checked steps to forge metal to make it stronger. The metal is shaped with heat, and then it is cooled. Getting a bit of metal hot enough makes it easy to shape. Once the metal is ready, it is forged using open-die, closed-die, or roll forging, all of which use compression forces. It can be used in a number of different ways, such as in cars or on trains. You need to know how to do things right if you work with strong metal parts because you shape them or make them.

What are the key stages in the metal forging process?

Billet Preparation and Heating

The first step in the metal shaping process is carefully choosing and getting the metal block ready. The metal that will be turned into the finished product is usually this raw material, which is a round or square piece. The makeup and original form of the block are very important factors that affect how the casting turns out. After it has been chosen, the block is heated in special ovens. This step is very important in metal shaping because it makes the metal more flexible, which means it's easier to shape. The temperature used for heating depends on the metal and the qualities that are wanted in the end result. For example, temperatures of 1,100°C to 1,250°C could be used to heat steel. It is very important to keep the temperature just right, because too much heat can cause grains to grow and the metal to lose strength, while too little heat can cause forging flaws.

Shaping and Deformation

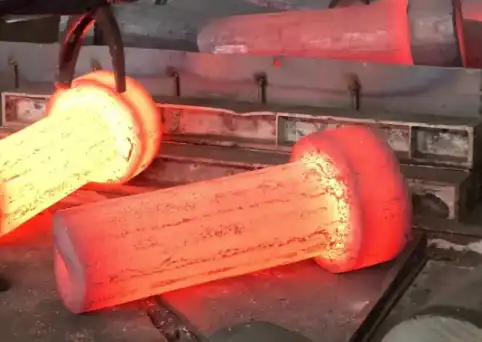

Once the metal block has been heated, it moves on to the most important part of the metal forging process: shape and distortion. At this point, the real art of shaping metal starts to show. The hot metal is put under a lot of pressure by strong hydraulic or mechanical presses, which shape it to the shape of the die or mold. To get to the end shape, the metal forging process may include more than one strike or a number of changing die shapes. During this process, the metal's internal grain structure is restored, which makes it stronger and last longer. Which metal forging method is used—open-die, closed-die, or roll forging—depends on how complicated the part is, how many are being made, and what mechanical traits are wanted. There are pros and cons to each method of forging metal. For example, closed-die forging is best for making precise forms, while open-die forging is best for making bigger, easier parts.

Cooling and Post-Forging Operations

Cooling the shaped part and doing any post-forging tasks that need to be done are the last steps in the metal forging process. Cooling is an important step that can have a big effect on how the metal turns out in the end. If you want the part to have a certain quality, you can either let it cool slowly in air or quickly quench it in oil or water. This process of cooling, called heat treatment, can make the metal even stronger and harder. After it has cooled, the cast part is often put through more steps, like cutting to get rid of extra material, shaping to make sure it is straight, and heat treatment to get certain mechanical properties. During the whole process of metal forging, quality control checks are done on the part to make sure it meets all the requirements. These include final checks of the dimensions and non-destructive tests. These steps after forging are very important for making precision-engineered, high-quality parts that meet the strict needs of industries like aircraft, automobile, and heavy machinery.

How does metal forging compare to other manufacturing processes?

Strength and Durability Advantages

Metal casting is one of the best ways to make parts because it can make them very strong and last a long time. Forging, unlike casting or cutting, lines the metal's grain structure, which makes its dynamic features much better. Forged parts are perfect for high-stress situations because they have better strength-to-weight ratios because of this arrangement. When metal is forging, pressure is applied continuously during the making process. This gets rid of internal gaps and porosity, which are common problems in cast parts. This means that forged parts are more resistant to fatigue and can handle harsher circumstances than their cast or machined peers. Because metal is naturally strong, forging is the best way to make important parts for industries like aircraft, cars, and big machinery, where failure is not a choice.

Precision and Complexity Capabilities

Heavy parts can be made with metal casting and metal forging, which are also very accurate and can make complicated shapes. Closed-die forging and other advanced forging methods can make forms and tolerances that are just as good as those made by milling. Forging metal lets you make parts that are almost entirely net-shaped, which means that you don't have to do as much cutting after the forging process and you waste less material. High-cost materials, like those used to make titanium parts for spacecraft, can really benefit from this skill. By forging, details like internal holes and different cross-sections can be added that would be hard or impossible to make with other methods of production. Forging metal is an important part of modern industry because it can make parts of any shape or complexity and is much stronger than casting something.

Cost-Effectiveness and Production Efficiency

When it comes to mass production, metal casting is often the most cost-effective way to make things. Forging dies can have high starting prices for the tools used to make them, but as output rates rise, the method becomes more cost-effective. Once set up, the metal casting process is very effective and can make things very quickly. With this high-volume ability and the lack of need for secondary activities, costs can be cut by a lot over time. Forged parts are also usually more durable and strong, which means that products last longer and users don't have to pay as much for upkeep. The effectiveness of metal shaping also includes how well the material is used. Forging doesn't lose as much material as subtractive methods like cutting because most of the original block is used to make the end product. This economy is especially helpful when working with expensive metals or materials that need to be used as little as possible.

What are the latest innovations in metal forging technology?

Advanced Simulation and Modeling

Innovations in computer and modeling technologies have made big steps forward in the metal shaping business. Before any work is done, these tools let experts calculate and improve the casting process. It is possible to model the whole metal forging process with advanced computer-aided engineering (CAE) tools, from heating the block to cooling the part at the end. Matter movement, temperature spread, and stress accumulation are some of the things that these models look at. Makers can find problems early on in the design process, make die designs better, and make fewer real samples by using these technologies. There is better part quality and lower production costs as a result. The creation process is also sped up. They are also getting smarter because they use machine learning techniques to make their guesses about the metal shaping process more accurate all the time.

Precision Control and Automation

Automation and robots have made a big difference in the metal forging and metal cutting business. These days, forging presses have high-tech control and watch systems that let you see and change things like speed, force, and temperature in real time. Better parts can be made because of this level of control, which also makes sure that every production run is the same. More than just the forging process is automated in the metal casting process. Moving things, switching out dies, and doing work after the shaping is done are also part of it. Robotic systems now move parts between the steps of shaping, which cuts down on cycle times and the chance of making a mistake. Also, strict quality standards are met by systems that use machine vision and 3D scanning, among other technologies, to make sure that every cast part is perfect. Because these new technologies take people out of dangerous situations, they not only speed up work but also make it safer.

Novel Materials and Processes

Innovation in the metal forging industry is not limited to technology alone; it also encompasses the development of new materials and processes. Researchers and manufacturers are continually exploring novel alloys and composite materials that can be forged to create parts with enhanced properties. For example, the development of high-strength, lightweight alloys has opened up new possibilities in aerospace and automotive applications. In terms of processes, techniques like isothermal forging and superplastic forming are pushing the boundaries of what can be achieved through metal forging. Isothermal forging, where the die and workpiece are maintained at the same elevated temperature throughout the process, allows for the forging of materials that are traditionally difficult to work with, such as titanium alloys. Superplastic forming, on the other hand, takes advantage of certain materials' ability to undergo extreme elongation at elevated temperatures, enabling the production of complex shapes with minimal tooling. These innovative materials and processes are expanding the capabilities of metal forging, making it possible to create components that were previously impossible or impractical to manufacture.

Conclusion

Forging metal is still an important part of making, even though it has changed a lot over the years from an old skill to modern precision engineering. It is essential in many fields because metal forging can make strong, long-lasting parts with complicated shapes. From burning the block for the first time to forming and finishing the part after forging, every step is important for making a good one. As modeling, robotics, and material science find new ways to improve technology, metal forging keeps pushing the limits of what is possible in part production. Metal forging is an important process that will continue to be used for many years to come because it uses both old and new techniques.

Shaanxi Welong Int'l Supply Chain Mgt Co.,Ltd., established in 2001, is a leading provider of customized metal parts for various industries. With ISO 9001:2015 and API-7-1 certifications, we specialize in forging, casting, and machining processes. Our expertise covers a wide range of materials, including steel, stainless steel, aluminum, and more. We offer comprehensive services from design optimization to quality control and timely delivery worldwide. With a track record of serving over 100 customers across Europe, North America, and Asia, we're committed to being a leader in international supply chain management and advancing China's intelligent manufacturing. Our dedication to quality, innovation, and customer success makes us your ideal partner for all metal component needs. For inquiries, please contact us at info@welongpost.com.

FAQ

Q: What is the main advantage of metal forging over other manufacturing processes?

A: Metal forging produces parts with superior strength and durability due to the alignment of the metal's grain structure during the process.

Q: How does heating affect the metal forging process?

A: Heating increases the metal's malleability, making it easier to shape and deform during forging.

Q: What are the three main types of forging methods?

A: The three main types are open-die forging, closed-die forging, and roll forging.

Q: How does cooling affect the properties of forged metal parts?

A: The cooling process, or heat treatment, can significantly affect the metal's final properties, including strength and hardness.

Q: What role does simulation play in modern metal forging?

A: Advanced simulation tools allow engineers to predict and optimize the forging process before physical production, reducing costs and improving quality.
