Understanding Different Grades of Cast Iron for Engineering Applications

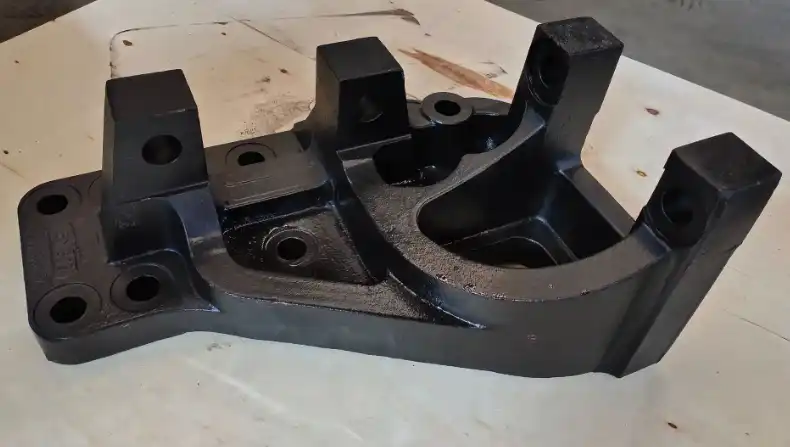

Cast iron has been a cornerstone material in engineering applications for centuries, prized for its versatility, durability, and cost-effectiveness. As technology and manufacturing processes have advanced, so too has our understanding of the various grades of cast iron and their specific properties. This comprehensive guide aims to shed light on the different grades of cast iron used in engineering, their mechanical properties, and how to select the right grade for your project. By delving into the intricacies of cast iron grades, engineers and manufacturers can make informed decisions that optimize performance, longevity, and cost-efficiency in their designs and products. Whether you're working on automotive components, industrial machinery, or construction projects, a thorough understanding of cast iron grades is essential for achieving optimal results in your engineering endeavors.

What Are the Main Grades of Cast Iron Used in Engineering?

Gray Cast Iron

Gray cast iron is one of the most widely used grades in engineering applications. Its characteristic gray appearance is due to the presence of graphite flakes within its microstructure. This grade of cast iron offers excellent machinability, good wear resistance, and superior vibration damping properties. Gray cast iron is particularly valued in applications where thermal conductivity and compressive strength are crucial. It finds extensive use in engine blocks, machine tool bases, and brake rotors. The graphite flakes in gray cast iron act as natural lubricants, reducing friction and wear in moving parts. However, its tensile strength is relatively lower compared to other grades, and it can be brittle under certain conditions. Despite these limitations, gray cast iron remains a popular choice for many engineering applications due to its cost-effectiveness and ease of casting.

Ductile Cast Iron

Ductile cast iron, also known as nodular cast iron or spheroidal graphite iron, is characterized by the presence of graphite in spheroidal form rather than flakes. This unique microstructure imparts significantly improved mechanical properties compared to gray cast iron. Ductile cast iron exhibits higher tensile strength, ductility, and impact resistance, making it suitable for applications that require a combination of strength and toughness. It is commonly used in automotive components, pipe fittings, and heavy machinery parts. The spheroidal graphite structure allows ductile cast iron to bend without fracturing, unlike the more brittle gray cast iron. This grade also offers excellent fatigue resistance and maintains its strength at elevated temperatures. The versatility of ductile cast iron has led to its increasing adoption in various engineering fields, particularly where safety and reliability are paramount concerns.

White Cast Iron

White cast iron is characterized by its extremely hard and wear-resistant properties, resulting from the formation of iron carbides in its microstructure. This grade of cast iron is produced by rapid cooling during the casting process, which prevents the formation of graphite. The absence of graphite gives white cast iron its distinctive white fracture surface. It is primarily used in applications where extreme abrasion resistance is required, such as crusher plates, shot-blasting nozzles, and grinding mills. However, the hardness of white cast iron comes at the cost of brittleness and poor machinability. To overcome these limitations, white cast iron is often used as a surface layer in bimetallic castings, combining its wear resistance with the toughness of other cast iron grades. The unique properties of white cast iron make it an invaluable material in specific engineering applications where durability under harsh conditions is crucial.

Mechanical Properties of Various Cast Iron Grades

Tensile Strength and Ductility

The tensile strength and ductility of cast iron grades vary significantly, influencing their suitability for different engineering applications. Gray cast iron typically exhibits tensile strengths ranging from 140 to 415 MPa, with elongation values of less than 1%. Its low ductility is due to the graphite flakes that act as stress concentrators. In contrast, ductile cast iron boasts superior tensile strength, ranging from 400 to 900 MPa, with elongation values of 2-25%. This remarkable improvement in both strength and ductility is attributed to the spheroidal graphite structure. White cast iron, while extremely hard, has limited tensile strength and virtually no ductility due to its carbide-rich microstructure. Understanding these properties is crucial when selecting cast iron grades for applications where tensile loads or impact resistance are critical factors. Engineers must carefully consider the balance between strength and ductility to ensure optimal performance and longevity of cast iron components in their designs.

Hardness and Wear Resistance

Hardness and wear resistance are critical properties in many engineering applications, and cast iron grades offer a wide spectrum of these characteristics. Gray cast iron typically has a Brinell hardness range of 150-300 HB, providing good wear resistance in applications with moderate abrasion. Its graphite flakes act as natural lubricants, enhancing its performance in wear-intensive environments. Ductile cast iron generally exhibits slightly higher hardness values, ranging from 170-360 HB, with improved wear resistance due to its nodular graphite structure. However, the standout performer in terms of hardness and wear resistance is white cast iron. With Brinell hardness values often exceeding 500 HB, white cast iron is exceptionally resistant to abrasion and wear. This extreme hardness makes it ideal for applications in harsh, abrasive environments, albeit at the cost of machinability and impact resistance. The selection of cast iron grade based on hardness and wear resistance must be carefully balanced with other mechanical properties and the specific requirements of the application.

Thermal Properties and Machinability

The thermal properties and machinability of cast iron grades are crucial considerations in many engineering applications, particularly in the design of components exposed to temperature fluctuations or requiring extensive machining. Gray cast iron excels in thermal conductivity, typically ranging from 35 to 55 W/m·K, making it an excellent choice for heat dissipation applications such as engine blocks and brake rotors. It also offers superior machinability due to its graphite flakes, which act as chip breakers during cutting operations. Ductile cast iron has lower thermal conductivity (25-38 W/m·K) but better thermal shock resistance than gray cast iron. Its machinability is good, though slightly inferior to gray cast iron due to its nodular graphite structure. White cast iron, with its carbide-rich structure, has poor thermal conductivity and is extremely difficult to machine, often requiring specialized cutting tools and techniques. The choice of cast iron grade must consider these thermal and machining characteristics to ensure efficient production and optimal performance in the intended application.

How to Select the Right Cast Iron Grade for Your Project?

Assessing Application Requirements

Selecting the appropriate cast iron grade for a project begins with a thorough assessment of the application requirements. Engineers must consider factors such as the expected loads, operating temperatures, environmental conditions, and desired lifespan of the component. For applications requiring high compressive strength and vibration damping, such as machine tool bases, gray cast iron may be the ideal choice. If the component needs to withstand high tensile loads or impact forces, ductile cast iron would be more suitable due to its superior strength and toughness. In environments with extreme abrasion, white cast iron or its variants might be necessary. It's also crucial to consider the thermal conditions of the application; if heat dissipation is a priority, the thermal conductivity of gray cast iron could be advantageous. By meticulously analyzing these requirements, engineers can narrow down the cast iron grades that best meet the specific needs of their project, ensuring optimal performance and longevity of the final product.

Balancing Performance and Cost

When selecting a cast iron grade for an engineering project, striking the right balance between performance and cost is crucial. While higher-grade cast irons like ductile iron offer superior mechanical properties, they also come with increased production costs. Gray cast iron, being more economical, might be the preferred choice for less demanding applications or where large volumes are required. However, it's important to consider the long-term costs associated with each grade. For instance, while white cast iron components may be more expensive initially due to their complex production and machining requirements, their exceptional wear resistance could result in lower replacement and maintenance costs over time. Engineers must also factor in the potential costs of failure; using a lower-grade cast iron in a critical application to save on initial costs could lead to catastrophic failures and significant expenses down the line. By carefully weighing these factors, engineers can select a cast iron grade that provides the necessary performance characteristics while remaining within budget constraints.

Considering Manufacturing Processes

The selection of cast iron grade must also take into account the manufacturing processes involved in producing the component. Different grades of cast iron have varying casting and machining characteristics that can significantly impact production efficiency and costs. Gray cast iron, with its excellent fluidity and low shrinkage during solidification, is well-suited for complex castings with thin sections. Its good machinability also makes it ideal for components requiring extensive post-casting operations. Ductile cast iron, while offering superior mechanical properties, may require more careful control during the casting process to ensure the formation of spheroidal graphite. White cast iron, due to its extreme hardness, presents significant challenges in machining and is often limited to applications where as-cast surfaces are acceptable or where only minimal machining is required. Additionally, the heat treatment capabilities of different cast iron grades should be considered if post-casting property modifications are needed. By aligning the cast iron grade selection with the available manufacturing processes and capabilities, engineers can ensure a smooth production process and minimize production costs while meeting the required specifications.

Conclusion

Understanding the different grades of cast iron is crucial for making informed decisions in engineering applications. From the versatile gray cast iron to the tough ductile cast iron and the wear-resistant white cast iron, each grade offers unique properties suited for specific needs. By carefully assessing application requirements, balancing performance with cost, and considering manufacturing processes, engineers can select the optimal cast iron grade for their projects. As technology advances, the importance of cast iron in engineering continues to grow, making this knowledge invaluable for professionals in the field.

For high-quality cast iron products and expert guidance in selecting the right grade for your project, consider partnering with Shaanxi Welong Int'l Supply Chain Mgt Co.,Ltd. With over 20 years of experience in supplying customized metal parts to industries worldwide, Welong offers a comprehensive range of casting services, including sand casting, investment casting, and centrifugal casting. Their expertise in various materials, including cast iron, steel, and alloys, ensures that you receive products that meet your specific requirements. For more information or to discuss your project needs, contact Welong at info@welongpost.com.

FAQ

Q: What are the main types of cast iron used in engineering?
A: The main types include gray cast iron, ductile (nodular) cast iron, and white cast iron.
Q: What is the key difference between gray and ductile cast iron?
A: Gray cast iron has graphite flakes, while ductile cast iron features spheroidal graphite, giving it higher strength and ductility.
Q: Where is gray cast iron typically used?
A: It’s commonly used in engine blocks, machine bases, and brake rotors due to its thermal conductivity and vibration damping.
Q: What makes ductile cast iron ideal for automotive parts?
A: Its high tensile strength, ductility, and impact resistance make it suitable for parts under stress.
Q: Why is white cast iron used in abrasive environments?
A: Its carbide-rich structure offers exceptional hardness and wear resistance.
