The Step-by-Step Guide to the Vacuum Casting Process

The advanced manufacturing method of vacuum casting has changed the way that high-quality, complicated parts with lots of small features are made. This way of making things is better than older ones in many ways. Vac-assisted casting and resin casting are other names for it. We'll talk about the tools, supplies, and methods used and show you how to do vacuum casting step by step. If you are a maker with a lot of knowledge or just interested in the subject, this piece will teach you a lot. It will talk about how it works and how it might change many areas. Vacuum casting is used a lot these days because it is exact, easy to change, and cheap. It can be used for everything, like making samples or small runs of things.

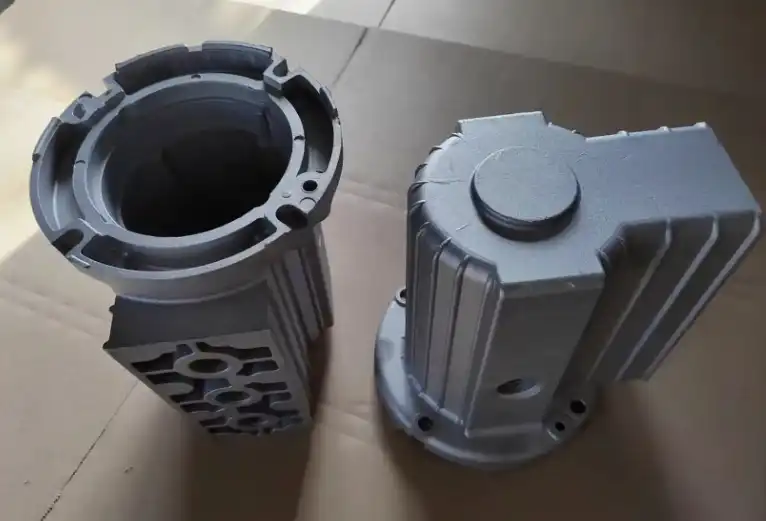

Vacuum Casting Basics: Materials, Molds, and Equipment Setup

Selecting the Right Materials

The success of any vacuum casting project begins with choosing the appropriate materials. Two-part polyurethane resins are often used in vacuum casting. These resins come in a lot of different forms to fit different needs. Because these resins can mimic the qualities of many thermoplastics, you can choose from a wider range of materials. When choosing materials for vacuum casting, you should think about things like the finished product's color, surface finish, and mechanical qualities. Also, the type of silicone used to make the mold is very important because it affects how long the mold lasts and how well the made parts turn out. For vacuum casting, it's best to use high-quality silicone rubbers that don't tear easily and don't change size. The careful choice of materials makes sure that the final product meets all the requirements and works perfectly in its intended purpose.

Preparing the Master Model and Mold

The vacuum casting process begins with a master model, which serves as the template for creating the silicone mold. This master model can be made in a number of ways, such as by hand, using 3D printing, CNC cutting, or other modern technologies. Paying close attention to every detail is very important because the final made parts are directly affected by the master model's surface quality and accuracy. When the original model is ready, it is put in a mold box and liquid silicone rubber is poured around it. After that, the silicone is hardened, usually in an oven, to make a mold that is flexible and can catch every detail of the master model. For vacuum casting to work, the mold must be designed correctly, with parting lines, vents, and gates placed correctly. These design features make sure that the plastic flows well, keep air from getting trapped, and make it easy to remove the part. Making a good model is an important part of the vacuum casting process because it affects how accurate and consistent the finished products are.

Setting Up the Vacuum Casting Equipment

The heart of the vacuum casting process lies in the specialized equipment used to create a vacuum environment and facilitate the casting process. A typical vacuum casting setup includes a vacuum chamber, a mixing system for the resin components, and various auxiliary tools. The vacuum chamber takes the air out of the mold and resin mixture. This makes sure that the parts that are made don't have any air bubbles or holes in them. Modern vacuum casting tools often have settings that can be programmed to precisely control the vacuum level, the mixing ratio, and the drying cycle. Calibration and care of this equipment must be done correctly for results to be uniform. Personal protection equipment (PPE) and ventilation devices should also be in place to make sure the workplace is safe. As part of the setup process, the mold is prepared for casting. This could include adding release agents to make it easier to remove the parts and making sure the mold is clean and free of any contaminants that could affect the quality of the parts that are cast.

Vacuum Casting Workflow: From Master Model to Silicone Tool

Creating the Master Model

Making a good master model is the first step in the vacuum casting process. This model must be a true reflection of the end result because it will be used as a guide for making the silicone mold. There are many ways to make the master model, such as using 3D printing, CNC machining, or standard drawing methods. Which way to use relies on things like how complicated the design is, how accurate it needs to be, and what tools are available. When making the master model, it's important to think about design features that will make the vacuum casting process easier. For example, draft angles make it easy to remove parts, and smooth surfaces make sure that the copy is of high quality. Any imperfections or inaccuracies in the master model will be transferred to the silicone mold and, subsequently, to all cast parts. Therefore, meticulous attention to detail and quality control during the master model creation phase is essential for successful vacuum casting outcomes.

Producing the Silicone Mold

Once the master model is perfected, the next step in the vacuum casting process is to create the silicone mold. This involves carefully placing the master model in a mold box and surrounding it with liquid silicone rubber. The silicone you choose is very important because it needs to be able to catch fine details correctly, last through multiple casting processes, and make it easy to take the part off. It is important to plan the mold design, including vents, gates, and splitting lines, before filling the silicone. These parts make sure that the plastic flows well and that air can escape during the casting process. Care must be taken not to trap any air in the mold box as the liquid silicone is put in. The whole thing is put in a vacuum room to get rid of any air bubbles that are still there. This makes sure that the mold surface is perfect. Once the silicone has been degassed, it is usually left to cure in an oven until it is the right stiffness and stability. This makes a model that is flexible and has a lot of detail. It can be used for more than one casting run in the vacuum casting process.

Preparing the Silicone Tool for Casting

Before the vacuum casting process can begin, the silicone mold must be fully sealed. Several important steps must be taken during this planning to get the best casting results. First, the cast is carefully taken out of the mold box and split along lines that have already been marked. To make sure the sides are clean and the part is the right size, any flash or extra silicone is cut off. The mold is then cleaned very well to get rid of any dirt or waste that might affect the quality of the parts that are cast. A release agent is put into the mold hole to make it easy to take the cast parts out without hurting the mold or the parts. Which release agent to use depends on the silicone and glue that are being used. Next, the mold is put back together and fixed, making sure that it is aligned correctly and sealed so that resin doesn't leak out during the vacuum casting process. Vents and gates are checked to make sure they are clear and in the right place so that resin can flow freely and air can escape. For vacuum casting to produce high-quality, reliable results, the silicone tool must be carefully prepared in this way.

Vacuum Casting Steps: Mixing, Degassing, Pouring, and Curing

Mixing and Degassing the Resin

The vacuum casting process begins with the careful mixing of the two-part polyurethane resin. To get the right chemical reaction and best material qualities in the end result, it's important to measure things accurately and mix them well. Depending on the manufacturer's instructions, the plastic parts are usually weighed by weight or volume, and a high-speed mixer is used to make the mixture uniform. After being mixed, the resin goes through a process called "degassing" to get rid of any air bubbles that were created during mixing. This is usually done in a vacuum room. The lower pressure makes the air bubbles spread and rise to the top, where they can be sucked out. Degassing is an important part of vacuum casting because it keeps air from getting trapped in the finished parts, which could cause flaws on the surface or weaken the structure. How long and how strongly degassing happens may change based on the type of resin being used and how complicated the part being made is. In the vacuum casting process, mixing and degassing must be done correctly because they have a direct effect on the quality and performance of the final cast parts.

Pouring and Vacuum Application

After the resin has been thoroughly mixed and degassed, it's ready for pouring into the prepared silicone mold. For the best results, the filling step in vacuum casting needs to be done carefully and precisely. Usually, the resin is put into the mold slowly and steadily, and it is often done at an angle to keep air from getting trapped. As soon as the mold is full, it is put right into the vacuum room. A vacuum is an important part of the process because it gets rid of any leftover air in the mold cavity and makes sure that the resin covers all of the mold's features. To get the best results without making the resin boil or foam too much, the vacuum level and time are carefully managed. When the vacuum is put on, air bubbles may appear to "boil" in the resin as they leave. This is an important step in the process that helps make sure the end part doesn't have any bubbles. To completely remove the air from the resin inside the mold, the vacuum casting method may include more than one turn of applying the vacuum and letting it go. This careful method to filling and vacuum application is needed to make high-quality parts with a smooth surface and strong structure.

Curing and Post-Processing

The final stages of the vacuum casting process involve curing the resin and post-processing the cast parts. After the vacuum cycles are complete, the mold is typically placed in an oven or allowed to cure at room temperature, depending on the specific resin formulation. The curing process allows the resin to fully polymerize and achieve its final mechanical properties. Curing times can vary widely, from a few hours to several days, depending on the resin type and the size of the part. Once cured, the parts are carefully removed from the silicone mold. This step requires patience and skill to avoid damaging either the part or the mold. After demolding, the parts often undergo various post-processing steps to achieve the desired final appearance and performance. These may include trimming off any excess material at the gates or vents, sanding to improve surface finish, and painting or other surface treatments. In some cases, additional machining or assembly may be required. The post-processing stage is crucial in vacuum casting as it allows for fine-tuning of the parts' appearance and functionality. Throughout the curing and post-processing stages, quality control measures are implemented to ensure that the final parts meet all specified requirements and standards.

Conclusion

It's supportive and imperative to know how to vacuum cast things in common. You can utilize it to make models or small things. It's particularly imperative in a few places since it can make hard-to-find, high-quality parts with the right estimations and the culminate wrap up on the exterior. Today we learned that vacuum casting works best when each step is done with incredible care. This incorporates picking the right surface, making the shape, making the casting handle, and all the steps that take after. By taking after these steps and best hones, makers can get the most out of vacuum casting to make high-performance stock that hasn't been utilized however. This is a plausibility that vacuum casting strategies will gotten to be exceptionally prevalent as innovation keeps getting superior. This will offer assistance them get more work and make it clear that they are an imperative portion of cutting edge commerce.

For those seeking high-quality metal parts and expert manufacturing solutions, Shaanxi Welong Int'l Supply Chain Mgt Co.,Ltd. offers a comprehensive range of services. Established in 2001 and certified by ISO 9001:2015 and API-7-1 quality systems, Welong specializes in customized metal parts for various industries. Their capabilities include forging, sand casting, investment casting, centrifugal casting, and machining, working with materials such as iron cast, steel, stainless steel, aluminum, copper, zinc, and various alloys. With a global customer base spanning over 100 clients in more than 20 countries, Welong is committed to providing reasonable pricing, meeting product specifications, effective packaging, and on-time delivery worldwide. For more information or inquiries, please contact them at info@welongpost.com.

FAQ

Q: What are the main advantages of vacuum casting over other manufacturing processes?
A: Vacuum casting offers high detail accuracy, excellent surface finish, low tooling costs for small production runs, and the ability to produce complex geometries with minimal post-processing.

Q: How long does a typical vacuum casting process take from start to finish?
A: The duration can vary depending on part complexity and size, but typically ranges from a few hours to several days, including mold creation, casting, and curing times.

Q: What materials can be used in vacuum casting?
A: Vacuum casting primarily uses polyurethane resins, which can simulate various thermoplastics. The choice of material depends on the desired properties of the final product.

Q: How many parts can be produced from a single silicone mold in vacuum casting?
A: A high-quality silicone mold can typically produce 20-25 parts before degradation affects part quality, though this can vary based on part complexity and mold design.

Q: Is vacuum casting suitable for mass production?
A: While vacuum casting is ideal for prototyping and small production runs, it's generally not cost-effective for mass production compared to methods like injection molding.
