Sand Casting vs. Die Casting: Which is Right for Your Parts

Sand casting and kick the bucket casting are two of the most common ways to make metal parts. Both ways have their claim benefits and employments, so picking one over the other is critical for getting the quality, speed, and cost-effectiveness you need in generation. This article talks in extraordinary profundity approximately how sand casting and pass on casting are distinctive. It looks at their approaches, materials, and results to offer assistance you choose the best one for your parts. It will be clear what the main differences are between these two casting methods and what the pros and cons of each are. There are also some tips inside that will help you pick the best plan for your building needs.

Understanding Sand Casting: Process, Materials, and Cost Factors

The Sand Casting Process: Step-by-Step Breakdown

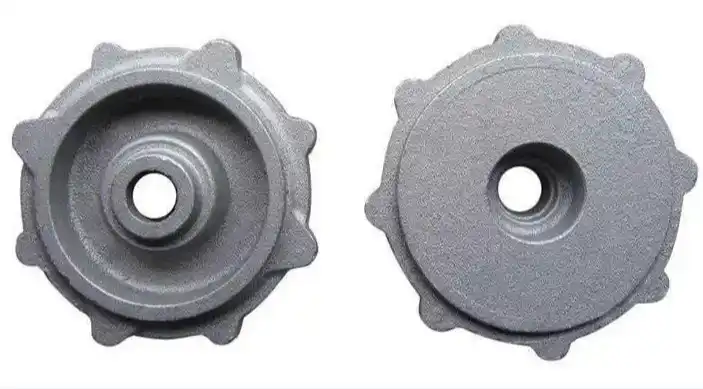

Sand casting is a versatile and time-honored method of metal casting that has been used for centuries. First, a pattern is made, which is usually out of metal, plastic, wood, or something else. This pattern is used to make the mold hole in the sand. Sand that has been mixed with glue is packed tightly around the mold design in a two-part mold box. After the design is taken off, the hole in the sand that is left shows the shape of the part that is wanted. Then, molten metal is poured into the hole by using a series of gates. Once the metal is strong and cool, the sand mold is taken off to show the cast part. This method can make parts with complicated forms and works especially well for big, heavy parts. Because you can choose the size and type of material for the parts, sand casting is a popular choice for both small and large production runs.

Materials and Equipment Used in Sand Casting

A lot of different materials and tools are used in sand casting to make high-quality parts. As the name suggests, the main ingredient is sand, usually silica sand or olivine sand. This is mixed with clay and other glue-like substances to make the mold. The strength, porosity, and surface finish of the mold are all affected by the sand and resins that are used. Depending on how many patterns need to be made and how accurate they need to be, they can be made from wood, metal, or plastic. Flasks, puzzles, rammers, and other hand tools are used to shape and finish the mold as part of the casting equipment. Metals like iron, steel, aluminum, and copper are melted in furnaces. Sand casting is very flexible and can use almost any metal that can be melted. This gives makers a lot of material choices to make parts that fit a variety of needs and purposes.

Cost Considerations in Sand Casting Production

When evaluating the cost-effectiveness of sand casting, several factors come into play. Initial tooling costs for sand casting are generally lower compared to die casting, especially for low to medium production volumes. The patterns and molds are relatively inexpensive to produce and can be easily modified if design changes are needed. But because the method requires a lot of work, it can raise the cost of production, especially for large runs. Material costs vary depending on the metal used, but sand casting's ability to work with a wide range of alloys can offer cost advantages in certain applications. Even though the process may cost more per unit when making a lot of them compared to die casting, it is still a good way to go when making big, complicated parts or when design changes are going to happen a lot. The fact that the sand used in shaping can be recycled also makes the sand casting process more cost-effective and good for the environment.

How Die Casting Differs from Sand Casting in Precision and Efficiency?

The Die Casting Process: High-Speed and High-Precision

Die casting stands in contrast to sand casting as a high-speed, high-precision manufacturing process. In die casting, molten metal is forced under high pressure into a reusable metal mold, known as a die. The process begins with the die being treated with a lubricant to facilitate part removal and prolong die life. Molten metal is then injected into the die cavity at high speed and pressure, typically using either a cold chamber or hot chamber machine. The metal solidifies rapidly due to the heat-conducting properties of the metal die, resulting in parts with excellent dimensional accuracy and surface finish. Once solidified, the die is opened, and the part is ejected. This process is significantly faster than sand casting, with cycle times often measured in seconds, making it ideal for high-volume production. The precision and efficiency of die casting allow for the creation of complex, near-net-shape parts with minimal secondary operations, contributing to its popularity in industries requiring large quantities of identical parts.

Materials and Equipment in Die Casting Operations

Die casting operations utilize specialized equipment and materials to achieve high-precision results. The dies themselves are typically made from tool steel, capable of withstanding the high temperatures and pressures involved in the process. These dies are precision-engineered and can be quite costly, but they offer longevity and the ability to produce thousands of identical parts. Die casting machines come in various sizes and configurations, with clamping forces ranging from a few tons to several thousand tons. The choice of metal for die casting is more limited compared to sand casting, with common materials including aluminum, zinc, magnesium, and copper alloys. These metals are selected for their low melting points and good flow characteristics. The equipment also includes sophisticated temperature control systems, hydraulic or pneumatic injection systems, and automated part extraction mechanisms. While the initial investment in die casting equipment and tooling is significant, the high production rates and consistency of output often justify the cost for large-scale manufacturing operations.

Efficiency and Cost-Effectiveness in High-Volume Production

Die casting excels in efficiency and cost-effectiveness, particularly in high-volume production scenarios. The automated nature of the process, combined with the speed of production, results in lower labor costs per unit compared to sand casting. While the initial tooling costs for die casting are higher, the amortization of these costs over large production runs can lead to very competitive per-unit prices. Die casting's ability to produce near-net-shape parts with excellent surface finish often reduces or eliminates the need for secondary machining operations, further contributing to cost savings. The process also offers excellent material utilization, with minimal waste and the ability to recycle excess material. For manufacturers requiring thousands or millions of identical parts, die casting's combination of speed, precision, and repeatability makes it an extremely efficient and cost-effective choice. However, it's important to note that these advantages are most pronounced in high-volume production; for smaller runs or frequently changing part designs, the high initial costs may be less justifiable compared to the flexibility offered by sand casting.

Comparing Sand Casting and Die Casting for Strength and Surface Finish

Mechanical Properties and Strength Characteristics

When comparing the mechanical properties and strength characteristics of parts produced by sand casting and die casting, several factors come into play. It is possible to use a wider range of metals in sand casting, even ones with higher melting points. This can lead to parts that are stronger and last longer. Because sand casting cools more slowly, the grains may be more evenly distributed, which could make the part stronger overall. Sand casting can also make parts that are bigger and have stronger walls, which may be needed for high-stress situations. Die casting, on the other hand, makes parts with finer grain structures because they cool more quickly, which can help improve their tensile strength and hardness. When die casting, high-pressure injection makes parts that are harder and have fewer porosity problems. Die casting may not be able to be used in situations that need certain high-strength metals, though, because it only comes in a few materials. In the end, the choice between sand casting and die casting for strength relies on the part's shape, the material that needs to be used, and what it will be used for.

Surface Finish and Dimensional Accuracy Comparison

In many production situations, surface finish and exact measurements are very important. Choosing between sand casting and die casting can have a big effect on these aspects. Because of how the sand model is made, things made by sand casting usually have a rougher surface finish. When using finer sand or mold coats, for example, the surface quality can be improved. However, sand-cast parts often need more finishing steps to get a smooth surface. Dimensional accuracy in sand casting can be good, but it's usually not as good as in die casting. Tolerances for sand casting range from ±0.5 mm to ±1.5 mm, based on the size of the part. Die casting, on the other hand, is great for making things with a smooth surface and accurate measurements. High-pressure injection and smooth metal dies make parts with fine details and smooth surfaces that often don't need any extra finishing. It is possible to get very close limits with die casting, usually between ±0.1 mm and ±0.3 mm. This makes it perfect for uses that need exact fit and function. The superior surface finish and accuracy of die casting make it particularly suitable for visible parts or components that require minimal post-processing.

Post-Processing Requirements and Finishing Options

The post-processing requirements for sand cast and die cast parts can differ significantly, impacting the overall production time and cost. Sand cast parts often require more extensive post-processing due to their rougher surface finish and the presence of parting lines and gates. Common post-processing operations for sand cast parts include shot blasting to remove residual sand, grinding to remove excess material, and machining to achieve final dimensions and surface quality. For applications requiring a high-quality finish, sand cast parts may need additional treatments such as painting or powder coating. Die cast parts, on the other hand, generally require less post-processing due to their superior as-cast surface finish and dimensional accuracy. However, they may still need operations such as trimming of gates and runners, and in some cases, machining of critical surfaces or features. Die cast parts are often ready for use with minimal finishing, making them advantageous in terms of production efficiency. Both sand casting and die casting can benefit from various surface treatments and coatings to enhance appearance, corrosion resistance, or wear properties, depending on the specific application requirements.

Conclusion

So, the choice between sand casting and die casting relies on a number of things, such as the number of parts that need to be made, how complicated they are, the materials that are available, and the finish that is wanted on the outside. You can choose from different sizes and types of materials for sand casting, so it can be used for both big and small orders. Many small, hard-to-make parts that are all the same size and shape can be made with die casting. There is a better way to do something, but it is different for each job and person. When making your choice, think about things like the cost of the tools, the amount that will be made, the qualities of the material, and the post-processing needs. In the end, talking to makers with a lot of knowledge can help you figure out which casting method will work best for your parts.

For expert guidance on choosing the right casting method for your project, consider reaching out to Shaanxi Welong Int'l Supply Chain Mgt Co.,Ltd. Welong has more than 20 years of experience making metal parts using sand casting, die casting, and other methods. You can get full answers from them that are made to fit your wants. They can send good quality goods all over the world because their quality system is accepted by both ISO 9001:2015 and API-7-1. You can email Welong at info@welongpost.com to find out more or to talk about what your project needs.

FAQ

Q: What are the main differences between sand casting and die casting?
A: Sand casting uses disposable sand molds and is suitable for a wide range of materials and part sizes, while die casting uses reusable metal molds and is best for high-volume production of smaller, more complex parts with better surface finish.

Q: Which casting method is more cost-effective?
A: For low to medium production volumes or large parts, sand casting is often more cost-effective due to lower tooling costs. For high-volume production of smaller parts, die casting becomes more economical due to faster production rates and lower per-unit costs.

Q: Can both methods produce parts with the same level of strength?
A: Both methods can produce strong parts, but sand casting allows for a wider range of materials, including high-strength alloys. Die casting can produce parts with high density and fine grain structure, contributing to good strength properties.

Q: Which method offers better dimensional accuracy?
A: Die casting generally offers superior dimensional accuracy and tighter tolerances compared to sand casting, making it preferable for parts requiring precise fit and function.

Q: Are there limitations on the size of parts that can be produced by each method?
A: Sand casting can accommodate a wider range of part sizes, including very large components. Die casting is typically limited to smaller parts due to the constraints of die size and machine capacity
