How to Identify Casting and Forging Parts?

Identifying casting and forging parts is a crucial skill in various industries, including manufacturing, engineering, and quality control. Both casting and forging are fundamental metalworking processes used to create a wide range of components, but they have distinct characteristics that set them apart. Understanding these differences is essential for professionals involved in product design, procurement, and quality assurance. This blog post will delve into the key features that distinguish casting from forging parts, providing you with the knowledge to accurately identify and differentiate between these two manufacturing methods. By exploring the visual cues, structural properties, and performance characteristics of cast and forged components, you'll be better equipped to make informed decisions about material selection, quality control, and product applications. Whether you're a seasoned engineer or new to the field, mastering the art of identifying casting and forging parts will enhance your expertise and contribute to more effective product development and manufacturing processes.

What are the key differences between casting and forging parts?

Visual Appearance

One of the most noticeable differences between casting and forging parts lies in their visual appearance. Cast parts typically have a smoother surface finish compared to forged parts. This is due to the nature of the casting process, where molten metal is poured into a mold and allowed to solidify. The resulting surface is often uniform and may display fine details from the mold. In contrast, forging parts often exhibit a rougher, more textured surface. The forging process involves applying pressure to shape the metal, which can leave visible flow lines or grain patterns on the surface. These flow lines are a characteristic feature of forged components and can be particularly noticeable in open-die forging. Additionally, forging parts may have parting lines or flash marks where excess material has been trimmed, while cast parts might show mold seams or parting lines from the casting process.

Internal Structure

The internal structure of casting and forging parts differs significantly due to their respective manufacturing processes. Cast parts are formed by pouring molten metal into a mold, which results in a relatively uniform grain structure throughout the component. However, this structure can sometimes lead to the formation of internal defects such as porosity or shrinkage cavities. On the other hand, forging parts are characterized by a more refined and directional grain structure. The forging process involves applying pressure to the metal, which helps to align the grains and improve the overall strength and toughness of the material. This refined grain structure is particularly beneficial in applications requiring high strength and resistance to fatigue. Forging parts typically have a denser, more homogeneous internal structure compared to cast parts, which contributes to their superior mechanical properties in many applications.

Performance Characteristics

The performance characteristics of casting and forging parts are another key area of distinction. Forging parts generally exhibit superior mechanical properties compared to their cast counterparts. The forging process enhances the strength, toughness, and ductility of the material by refining its grain structure and eliminating internal defects. This results in forged components that can withstand higher loads and have better fatigue resistance. Forging parts are often preferred in applications requiring high strength-to-weight ratios, such as in aerospace and automotive industries. In contrast, cast parts may have lower tensile strength and impact resistance but can offer advantages in terms of complex geometries and cost-effectiveness for large production runs. Cast parts are often suitable for applications where intricate shapes are required, and the loads are not excessive. Understanding these performance differences is crucial when selecting between casting and forging for specific applications, ensuring that the chosen manufacturing method aligns with the required mechanical properties and design constraints.

How can surface features help in identifying forging parts?

Flow Lines and Grain Patterns

Flow lines and grain patterns are distinctive surface features that can help identify forging parts. During the forging process, the metal's grain structure is aligned and elongated in the direction of material flow, creating visible patterns on the surface. These flow lines often appear as elongated streaks or fibrous textures, particularly noticeable on open-die forged components. The presence and direction of these flow lines can provide valuable information about the forging process used and the direction of applied force. In some cases, the flow lines may form a swirling or spiral pattern, indicating that the part was subjected to twisting or rotational forces during forging. Recognizing these patterns is crucial for quality control inspectors and engineers, as they can indicate whether the forging process was carried out correctly and if the material's grain structure is oriented in the desired direction for optimal strength.

Parting Lines and Flash Marks

Parting lines and flash marks are telltale signs of forged parts, particularly those produced through closed-die forging. Parting lines appear as a thin, raised seam where the two halves of the forging die meet. These lines are typically straight or follow the contour of the part's shape. Flash marks, on the other hand, are thin protrusions of excess material that form at the die parting line during the forging process. While most of this excess material is trimmed off in post-forging operations, small remnants or marks may still be visible. The presence and location of parting lines and flash marks can provide insights into the forging die design and the specific forging technique used. Skilled inspectors can use these features to assess the quality of the forging process and identify potential areas of concern, such as improper die alignment or insufficient trimming.

Surface Texture and Finish

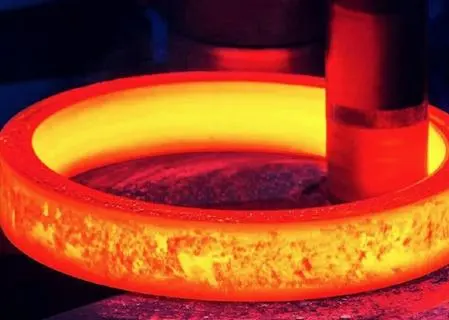

The surface texture and finish of forging parts can vary significantly depending on the specific forging technique and any post-forging treatments applied. Generally, forged parts have a rougher surface texture compared to cast or machined components. This roughness is a result of the metal's deformation during the forging process and the texture of the forging dies. In some cases, the surface may exhibit a scaled or oxidized appearance, particularly in hot forging operations where the metal is heated to high temperatures. However, many forged parts undergo subsequent surface treatments or machining to achieve the desired final finish. These treatments can include shot blasting, polishing, or precision machining of specific areas. The combination of the inherent forging texture and any post-processing marks can help identify a part as forged rather than cast or machined. Additionally, some forged components may retain hammer or press marks from the forging equipment, providing further evidence of the manufacturing process used.

What role does material composition play in distinguishing forging parts?

Grain Structure and Uniformity

The grain structure and uniformity of forging parts play a crucial role in distinguishing them from other manufacturing methods. Forging processes typically result in a more refined and uniform grain structure compared to casting or other forming techniques. This refined structure is achieved through the intense pressure and deformation applied during forging, which breaks down and realigns the metal's crystal structure. As a result, forged parts often exhibit a more homogeneous and directional grain pattern, visible under microscopic examination. This uniform grain structure contributes to the superior mechanical properties of forged components, including improved strength, toughness, and fatigue resistance. In contrast, cast parts may show a more random and coarse grain structure, with potential variations in grain size throughout the component. The ability to identify these differences in grain structure can be invaluable for quality control inspectors and materials engineers when assessing the manufacturing process and predicting the performance characteristics of a part.

Alloy Distribution and Segregation

The distribution of alloying elements and the degree of segregation within a component can provide important clues about whether it was forged or produced by other means. Forging processes typically result in a more uniform distribution of alloying elements throughout the material. This is due to the intense mechanical working and recrystallization that occurs during forging, which helps to break up and redistribute any segregated areas that may have formed during the initial solidification of the metal. As a result, forged parts often exhibit more consistent properties throughout their volume. In contrast, cast parts may show greater variations in alloy distribution, with potential segregation of certain elements in specific regions of the component. This segregation can lead to localized differences in mechanical properties and corrosion resistance. By analyzing the uniformity of alloy distribution through techniques such as spectrographic analysis or electron microscopy, materials scientists can gain insights into the manufacturing process used and the likely performance characteristics of the part.

Impurity Levels and Inclusions

The presence and nature of impurities and inclusions in a metal component can provide valuable information about its manufacturing process, particularly when distinguishing between forging and casting. Forged parts typically have lower levels of impurities and fewer inclusions compared to cast parts. This is because the forging process involves working with solid metal that has already undergone initial refining, whereas casting starts with molten metal that may contain more impurities. Additionally, the high pressures involved in forging can help to break up and disperse any remaining inclusions, resulting in a cleaner microstructure. In contrast, cast parts may contain more inclusions, such as gas pores or non-metallic particles, which can become trapped during the solidification process. The size, shape, and distribution of these inclusions can vary depending on the casting method used. By examining the impurity levels and the characteristics of any inclusions present, materials analysts can gain insights into whether a part was forged or cast, and potentially even determine the specific manufacturing techniques employed.

Conclusion

Identifying casting and forging parts requires a comprehensive understanding of their distinctive features, from visual appearance to internal structure and performance characteristics. By examining surface features such as flow lines, parting marks, and texture, as well as analyzing material composition and grain structure, professionals can accurately distinguish between these manufacturing methods. This knowledge is crucial for ensuring proper material selection, quality control, and optimizing product performance across various industries. As manufacturing technologies continue to evolve, staying informed about these identification techniques remains essential for engineers, designers, and quality assurance specialists alike.

Shaanxi Welong Int'l Supply Chain Mgt Co.,Ltd. is a leading provider of customized metal parts for various industries. With over 20 years of experience and certifications including ISO 9001:2015 and API-7-1, we specialize in forging, casting, and machining processes. Our expertise spans a wide range of materials and manufacturing techniques, ensuring high-quality products tailored to our clients' specific needs. We offer comprehensive support from design to delivery, including quality control and logistics management. Our global presence and commitment to innovation make us an ideal partner for businesses seeking reliable, cost-effective metal component solutions. For inquiries, please contact us at info@welongpost.com.

References

1. Campbell, J. (2015). Complete Casting Handbook: Metal Casting Processes, Techniques and Design. Butterworth-Heinemann.

2. Groover, M. P. (2020). Fundamentals of Modern Manufacturing: Materials, Processes, and Systems. John Wiley & Sons.

3. Kutz, M. (Ed.). (2015). Mechanical Engineers' Handbook, Volume 1: Materials and Engineering Mechanics. John Wiley & Sons.

4. Nisbett, J. K., & Budynas, R. G. (2020). Shigley's Mechanical Engineering Design. McGraw-Hill Education.

5. Totten, G. E. (Ed.). (2006). Steel Heat Treatment: Metallurgy and Technologies. CRC Press.

6. ASM International. (2008). ASM Handbook, Volume 14A: Metalworking: Bulk Forming. ASM International.
