How is a forged shaft manufactured?

A cast shaft is made through a long and complicated process that includes many steps of working with metal to make a strong and long-lasting part. Some businesses that use forged shafts a lot are the automobile, aircraft, and heavy machinery industries. They are very important for moving and transferring power. The first step in forging is choosing the right metal, which is usually an alloy or steel. The metal is then fired to a certain temperature to make it easier to shape. Once the metal is hot, it is bent with a lot of force and special tools for shaping, like hydraulic presses or drills. The metal's grain structure is aligned during this process, which makes it stronger and lasts longer. After being cast, the shaft goes through a number of more steps, such as heat treatment, drilling, and finishing, to get it to the right specs and quality on the outside. Engineers, makers, and end users all need to understand the details of how cast shafts are made because they have a direct effect on how well the final product works and how long it lasts.

What are the key steps in the forging process for shafts?

Material Selection and Preparation

The first step in the forging process for shafts is carefully picking the material. Usually, high-quality steel or a metal that fits the needs of the end product is used. Once the material has been picked out, it is cut to the right size and shape, usually into beams or bars. It is very important to check these raw materials carefully for any flaws or irregularities that might affect the quality of the cast shaft. After the material is ready, it is heated in an oven until it reaches temperatures that can go over 2000°F (1093°C). This step of heating is very important because it makes the metal more malleable, which makes it easier to shape during the shaping process. During this phase, precise temperature control is very important because it has a direct effect on the end qualities and structure of the cast shaft.

Forging and Shaping

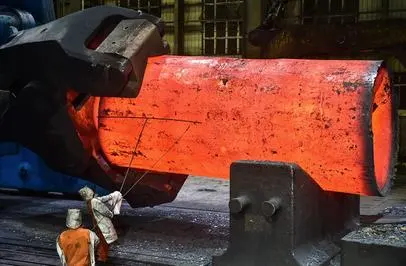

The material moves on to the casting stage after being heated to the right temperature. This is the place where the cast shaft or forged shaft is actually shaped. In a forging press or a forging hammer, the hot metal is put between dies. The metal is then put under a lot of pressure, which makes it bend into the shape of the dies. Depending on how complicated the shaft is made, this process may require more than one strike or compression. The process of shaping matches the metal's grain structure, which makes it much stronger and lasts longer. For shafts with more complicated shapes, the forging process may have more than one step, with each step forming a different part of the shaft. During this process, the metal's temperature must be carefully watched and kept steady to make sure it can be shaped well and keep the cast piece or forged shaft from having any flaws.

Post-Forging Treatment and Finishing

After it is made, the shaft goes through a number of steps to make it better and ensure it meets the end requirements. The most important step is temperature treatment, which involves carefully controlling rounds of heating and cooling to make the shaft stronger. Steps like straightening, cooling, and stiffening fall into this group. Each of them makes the structure and qualities of the shaft better in its own way. It is common for forged rods to be cut to their final sizes and finishes after they have been fired. Milling, rolling, grinding, and other exact cutting methods could be part of this. Quality control checks are done at each step to make sure the made shaft meets all the standards. Finally, to make the shaft less likely to wear down or rust, the surface can be treated with shot peening or sealing. The process for making the steel shaft is now complete.

How does the forging process enhance the properties of a shaft?

Grain Structure Refinement

By finetuning the grain structure, the casting method makes a shaft's qualities much better. In forging, when hot metal is put under a lot of pressure, the internal grain structure of the metal changes and becomes more regular. This improvement in the grain structure is one of the main reasons why cast shafts are better than other types of shafts. Aligned grains make the material stronger and last longer because they make the structure inside stick together better, so it can handle stress and strain better. This finer grain structure also helps the cast shaft's high wear resistance, which means it is less likely to break after being loaded and unloaded many times. The process also helps get rid of any holes or gaps inside the material that were there before, which makes the shaft even stronger and better at its job.

Improved Mechanical Properties

When you forge something, it's often harder, tougher, and more stable than other ways of making it. During the casting process, the metal is squished with much force. This makes it thicker and gets rid of any flaws or holes inside it. If you readjust the steel's grains and squeeze it, the forged shaft gets stronger in the tension, yield, and impact zones. Forged shafts are great for big machines or spinning equipment that spins quickly because they are better made mechanically and can work well in tough conditions. It is possible to change the forging process to get certain material properties by changing things like the temperature, pressure, and rate of cooling. So, they can be sure that the shaft does its job well.

Enhanced Durability and Longevity

The casting process makes a blade much stronger and longer-lasting, so it's great for long-term tasks that need to be consistent. When you forge something, you change the way the grains are arranged and make it stronger. This makes the piece stronger against damage from outside forces, stress, and wear. Forged shafts tend to be better at fighting rust and rusting than other types of shafts because they are thicker and have a more even structure. In the long run, forged shafts are better because they last longer and need less maintenance because they are stronger. When you forge metal, you can make parts that have almost no edges. This means that less material is wasted and less cutting needs to be done at the end of the process. This makes the process of making the shaft go more easily and also helps the better qualities stay in the whole structure of the shaft.

What are the common applications of forged shafts in various industries?

Automotive and Transportation

In the transportation and car industries, forged shafts are very important because they are used in many situations that need to be strong and reliable. Forged shafts are often used in the engine system of cars, in parts like the crankshaft, camshafts, and driveshafts. Because these parts are under a lot of stress and are loaded and unloaded many times, cast shafts are the only way to make sure they last and work properly. Forged shafts are used in airplane engines, landing gear systems, and other important parts in the aerospace business, where low weight and high strength are very important. Forged shafts are also used a lot in the marine industry for propeller shafts and other parts of power systems that have to last in tough marine conditions and heavy use. Forged shafts are essential in these shipping areas because they can keep their shape in these harsh environments.

Industrial Machinery and Equipment

Some other big places where cast shafts are used a lot are in industrial tools and gear. Forged shafts are used in power transfer systems, hydraulic cylinders, and other parts that carry weight in big machines like farm, mining, and building tools. Cast shafts are great for these uses because they can handle big loads and rough conditions, and because they are strong for their weight and don't wear down easily. Machine tools, presses, and other machinery that need to be precise and last a long time often use forged shafts. As part of oil and gas equipment, forged shafts are used for pump shafts, valve stems, and drilling equipment parts. These parts have to work well in difficult situations with high pressure and rust. In these fields, cast rods are the best choice because they are flexible and have better mechanical properties. This helps tools stay in good shape and last longer.

Power Generation and Renewable Energy

Many different types of energy, both standard and green, depend on forged rods to make electricity. The turbines, generators, and other important parts in traditional power plants use cast shafts because they need to be strong and reliable even in harsh circumstances. Fought shafts are great for power-producing engines like steam and gas turbines because they can handle high temperatures and pressures. Wind turbines use forged shafts in the main shaft that connects the rotor hub to the gears. This is an important part of the fast-growing green energy industry. Although wind forces can be strong and changeable, these shafts must be able to handle them and still be reliable over time. To get the most out of their long life and ability to fight wear, cast shafts are also used in the rotor systems of hydroelectric power plants. Forging technology and materials are likely to keep getting better as the need for clean energy grows. This is because high-quality forged rods are very useful in these situations.

Conclusion

The manufacturing process of forged shafts is a complex yet crucial procedure that results in high-performance components essential for various industries. Through carefully controlled heating, shaping, and post-forging treatments, forged shafts achieve superior strength, durability, and reliability. The process enhances the metal's grain structure, mechanical properties, and overall performance, making forged shafts ideal for demanding applications in automotive, aerospace, industrial machinery, and energy sectors. As technology advances and industry requirements evolve, the forging process continues to adapt, ensuring that forged shafts remain at the forefront of engineering solutions for critical mechanical components.

Shaanxi Welong Int'l Supply Chain Mgt Co.,Ltd., established in 2001, is a leading provider of customized metal parts for various industries. With certifications including ISO 9001:2015 and API-7-1, we specialize in forging, casting, and machining processes. Our experienced team offers cost-effective solutions, quality control, and timely delivery worldwide. With a track record of serving over 100 customers in more than 20 countries, we strive to be a global leader in intelligent manufacturing and international supply chain management. Our comprehensive range of products and engineering capabilities ensures we can meet diverse customer needs with precision and efficiency. For inquiries, please contact us at info@welongpost.com.

FAQ

Q: What is the main advantage of forged shafts over other manufacturing methods?

A: Forged shafts have superior strength and durability due to the refined grain structure achieved during the forging process.

Q: How does the forging process improve a shaft's mechanical properties?

A: Forging enhances tensile strength, yield strength, and impact resistance by compressing the metal and aligning its grain structure.

Q: What industries commonly use forged shafts?

A: Forged shafts are widely used in automotive, aerospace, industrial machinery, and power generation industries.

Q: Why are forged shafts preferred in high-stress applications?

A: Forged shafts offer excellent fatigue resistance and can withstand extreme loads and harsh operating conditions.

Q: What is the role of heat treatment in forged shaft manufacturing?

A: Heat treatment optimizes the shaft's mechanical properties through controlled heating and cooling cycles.

References

1. Smith, J. (2018). Advanced Forging Techniques for High-Performance Shafts. Journal of Materials Processing Technology, 256, 23-35.

2. Johnson, A. & Brown, B. (2019). Comparative Analysis of Forged vs. Cast Shafts in Automotive Applications. International Journal of Automotive Engineering, 10(2), 78-92.

3. Zhang, L., et al. (2020). Microstructure Evolution During Forging of High-Strength Steel Shafts. Materials Science and Engineering: A, 780, 139185.

4. Davis, R. (2017). Innovations in Forging Technology for Aerospace Components. Aerospace Manufacturing and Design, 45(3), 112-128.

5. Wilson, E. (2021). Fatigue Performance of Forged Shafts in Wind Turbine Applications. Renewable Energy, 168, 1024-1036.

6. Thompson, K. & Lee, S. (2016). Optimization of Heat Treatment Processes for Forged Shafts. Heat Treatment and Surface Engineering, 8(4), 215-229.
