From Concept to Component: The Complete Die Casting Workflow

When manufacturers need lightweight, durable, and high-precision metal components,​​​​​​​die casting has become one of the most efficient techniques of production accessible. This technology enables producers to generate complex forms with uniform dimensions and great surface finishes, from car housings and industrial equipment parts to consumer electronics and mechanical components.

But die casting is not as simple as forcing molten metal into a mould and hoping for the best. It’s a comprehensive workflow, from the product design and tooling creation to process optimisation, and ends with a careful quality check before delivery. Each step impacts the performance, cost and reliability of the finished component.

As organisations consider their options for metal manufacturing solutions, understanding the full die casting process allows them to make better choices around material choice, part design, and working with established suppliers. Shaanxi Welong Int’l Supply Chain Mgt Co., Ltd. offers comprehensive manufacturing solutions, including die casting, forging, sand casting, investment casting, centrifugal casting and precision machining. Welong has expertise serving industrial customers around the world, helping customers turn their initial designs into reliable manufacturing components.

Understanding How Die Casting Supports Modern Manufacturing

The Basic Principle Behind the Die Casting Process

Die casting is a metal fabrication method that involves forcing molten metal into a properly designed mould cavity under high pressure. The mould is frequently called a die. The die is typically constructed from hardened tool steel. The die is composed of two principal parts, the fixed half and the moveable half.

During production, the molten alloy is poured at high speed and pressure into the closed die. This pressure causes the metal to fill intricate portions of the space, such as thin walls, detailed surfaces and microscopic functional elements, entirely. When the material solidifies, the die is opened and the final part is ejected for further processing or inspection.

Unlike traditional casting procedures, die casting offers exceptional reproducibility since the same precision-engineered tooling is used in each production cycle. This makes it especially ideal for medium- to large-volume manufacturing when uniformity and efficiency are crucial.

Typical materials for die casting are:

• Aluminium alloys for lightweight structures and corrosion resistance; zinc alloys for high dimensional precision and thin wall applications;

• Magnesium alloys for weight-saving applications;

• Copper alloys for parts with high thermal and electrical conductivity.

Alloy selection is dependent on ultimate application, mechanical constraints, working environment and manufacturing objectives.

Why Manufacturers Choose Die Casting for High-Volume Components

Combining Precision, Efficiency, and Production Consistency

One of the largest advantages to die casting is the ability to make huge quantities of identical parts with strict dimensional control. Once the tooling is established and optimised, firms may have reliable production cycles with little variance between parts.

Die casting can minimise material waste and processing time greatly compared to machining a component from solid metal. The near-net-shape production ability means that many items can be produced in their final shape after casting, thus decreasing the amount of subsequent machining.

Other key benefits are:

Complex Geometries With Reduced Manufacturing Limitations

Die casting allows engineers to make parts with:

• Lightweight walls;

• Internal spaces;

• Reinforcing ribs;

• Detailed surface textures;

• Built-in attachment features.

Such design options are useful in automotive, electronics, aircraft equipment, and industrial machinery, where it is often desirable to reduce component weight while retaining strength.

Improved Surface Quality and Reduced Post-Processing

A good die will produce items with smooth surfaces and a uniform look. This cuts down on further finishing procedures and helps manufacturers shorten manufacturing cycles.

Good casting surface quality improves the overall manufacturing efficiency of products that require painting, coating, polishing, or assembling.

Lower Unit Costs During Large-Scale Production

The tooling is an upfront cost, but the more you make, the less each individual component costs. Die casting can be more cost-effective than other manufacturing methods for OEM projects that require thousands or millions of parts.

A Complete Die Casting Workflow From Design to Final Inspection

Engineering Design and Product Development

The initial step in the die-casting cycle takes place long before the casting machine begins to run. The engineers have to determine whether the product design is suitable for the production process.

At this stage, designers consider:

• Part function and mechanical requirements;

• Material selection; wall thickness;

• Draft angles;

• Cooling requirements;

• Potential machining requirements.

Today’s producers often utilise CAD software to build detailed 3D models. These digital models enable engineers to analyse the component structure and detect potential problems before tooling starts.

The optimisation of the design is of particular importance since some design characteristics easy to machine by conventional methods may be difficult to produce by die casting. For example, unequal wall thickness can contribute to shrinkage, porosity or uneven cooling.

Using Simulation Technology to Improve Casting Performance

Usually, engineers would do simulations before the die is built using technologies such as mould flow analysis, computational fluid dynamics (CFD), and finite element analysis (FEA).

These technologies assist in predicting:

The molten metal flows through the cavity;

• Where air can be trapped;

• Possible shrinkage areas;

• Cooling behaviour;

• Potential weak areas in the finished part.

By simulating earlier you minimise the chance of having to make costly tooling changes once you start production.

Tooling Design and Die Manufacturing

Once the component design is established, the die itself is developed. Tooling quality is one of the most critical variables in effective die casting, since the die directly impacts the final shape, accuracy and manufacturing efficiency of the component.

Dies are frequently constructed using high-strength tool steels, as they are required to withstand:

• Thermal cycling repeatedly;

• High injection pressure;

• Mechanical stress;

• Permanent production conditions.

The process of tool making generally consists of:

• CNC machine work of die parts;

• Heat treatment for increased durability;

• Surface finishing, assembly and fitting, trial production and adjustment.

The die has some important elements, such as:

Runner systems controlling flow of molten metal Gates controlling entry of injection Vents releasing trapped air Cooling channels controlling temperature
A correctly constructed cooling system is of particular importance, because uneven cooling can lead to flaws such as warping, shrinkage or dimensional inconsistencies.

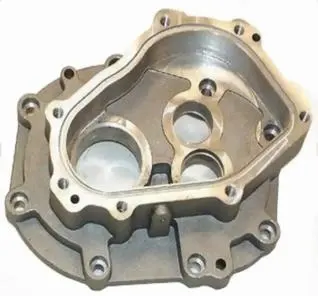

From Concept to Component: The Complete Die Casting Workflow

Managing the Casting Stage and Production Control

Once the die is prepped and mounted, the production phase starts. During this phase, there are a number of variables that need to be closely monitored by manufacturers to make sure each component meets the design criteria.

The procedure begins with melting the chosen alloy in a furnace with regulated temperatures. The metal, when in the necessary condition, is delivered to the casting machine and forced under pressure into the die cavity.

The type of die casting machine used by manufacturers depends on the alloy and the application:

• Hot chamber die casting machines are typically employed for metals with relatively low melting points like zinc alloys.

• The most common die casting machines for aluminium and magnesium alloys are cold chamber die casting machines since these materials demand greater melting temperatures.

Precise control of pressure and filling speed is required during the injection. If the injection speed is too slow, the molten metal can start to harden before the cavity is entirely filled. If the speed is excessively high, turbulence may occur, which increases the risk of air entrapment and internal problems.

Pressure is applied during the solidification period to compensate for the shrinkage of the metal after the cavity is completely filled. The die opens after cooling, and the casting is withdrawn for inspection, finishing and trimming.

Quality Inspection Throughout the Die Casting Process

Preventing Defects Through Systematic Quality Management

The quality of die casting manufacturing depends not only on modern technology but also on rigorous quality control at all stages of the workflow.

Experienced manufacturers inspect parts at a variety of phases, not just at the final inspection. This way, faults can be caught sooner, and big amounts of parts don’t get bad.

The usual inspection procedures are:

Dimensional Inspection

Finished components are measured with precision measuring equipment, such as coordinate measuring machines (CMM), to ensure they fit drawing specifications.

Engineers check:

Overall dimensions, hole locations, and flatness Geometric tolerances in critical assembly areas
Dimensional inspection is important to the fit of cast components at final assembly.

Surface and Visual Inspection

Inspecting the surface can help to identify evident problems such as:

• Cracks;

• Flashings;

• Marks on the surface;

• Unfilled;

• Deformations.

For applications that require strict appearance criteria, surface quality testing is extremely crucial.

Non-Destructive Testing

For safety-critical components, manufacturers may use non-destructive testing methods such as:

• X-ray inspection;

• Ultrasonic testing;

• Dye penetrant testing.

These methods help detect internal defects, including porosity and hidden cracks, without damaging the component.

A reliable die casting supplier should provide inspection records, quality reports, and traceability information to support customer requirements.

Key Factors That Determine Die Casting Quality and Performance

Selecting the Right Alloy for the Application

Material selection has a direct impact on the strength, durability, and performance of die-cast components. Different alloys provide different advantages depending on the operating environment.

Aluminium Die Casting

Aluminium is one of the most widely used materials because it provides:

• High strength-to-weight ratio;

• Good corrosion resistance;

• Excellent thermal conductivity;

• Suitable mechanical performance for automotive and industrial applications.

It is frequently used for:

• Engine housings;

• Transmission components;

• Structural brackets;

• Electronic enclosures.

Zinc Die Casting

Zinc alloys are often selected when manufacturers require:

• Excellent dimensional accuracy;

• Smooth surface finishes;

• Thin-wall capability;

• Good wear resistance.

Zinc is commonly used for:

• Small mechanical components;

• Hardware products;

• Precision assemblies.

Magnesium Die Casting

Magnesium is chosen when weight reduction is a major requirement. It is lighter than aluminium and is often considered for applications where reducing overall component weight improves efficiency, especially in die casting processes where lightweight magnesium components are required for high-performance applications.

Selecting the correct alloy requires balancing mechanical performance, manufacturing requirements, cost targets, and service conditions.

Optimising Die Design and Extending Tool Life

A well-designed die directly affects production efficiency, component consistency, and manufacturing costs.

Important die design considerations include:

Proper Gating and Runner Design

The gating system controls how molten metal enters the cavity. Poor gate design may cause:

• Uneven filling;

• Turbulence;

• Air pockets;

• Surface defects.

Engineers must carefully analyse metal flow behaviour to achieve stable filling conditions.

Effective Cooling System Design

Temperature management plays a critical role in die performance. Cooling channels help control solidification speed and maintain consistent production cycles.

Advanced manufacturing approaches, including conformal cooling technology, allow cooling channels to follow the shape of complex die surfaces. This can improve thermal control and reduce cycle times.

Regular Die Maintenance

Even high-quality tooling requires regular maintenance. Production teams typically monitor:

• Surface wear;

• Cracks;

• Erosion;

• Cooling channel performance;

• Dimensional changes.

Proper maintenance extends the die's lifespan and reduces unexpected production interruptions.

Why Welong Is a Reliable Partner for Metal Manufacturing Solutions?

Why is Welong a trusted partner of metal manufacturing solutions?
Shaanxi Welong Int’l Supply Chain Mgt Co., Ltd provides complete manufacturing services from product development to final production for firms in need of professional help in metal component production.

Welong supports customers with various manufacturing techniques such as die casting, forging, sand casting, investment casting, centrifugal casting and precision machining. This combination lets clients choose the procedure best relevant to component requirements, manufacturing volume and performance objectives.

Welong has experience supplying worldwide industrial sectors with an emphasis on engineering reliability, quality control and customised production solutions. The company is an ISO 9001:2015 quality management-certified organisation catering to customers wanting reliable metal components for demanding applications.

Welong's technical experience and manufacturing skills help customers translate initial thoughts into completed components with consistent quality and production efficiency.

Conclusion

Die casting is a tightly controlled process combining engineering design, precision tooling, high-technology manufacturing and rigorous quality control from idea development to final inspection. Every step, from the selection of the alloy to the fine tuning of injection settings, affects the quality, life and economics of the finished part.

Knowing this entire process can help manufacturers and engineers get a better product, steer clear of common manufacturing issues, and select the right manufacturing partner. As industry demands ever lighter, stronger and more complicated metal parts, die casting continues to be a key solution for efficient large-scale production.

An experienced provider can also reduce development risks and provide consistent production performance, hence increasing the chances of a successful project. Shaanxi Welong Int’l Supply Chain Mgt Co., Ltd leverages its manufacturing knowledge and integrated metal processing capabilities to help customers from early design ideas to final component delivery. Welong offers industrial customers efficient and reliable metal manufacturing solutions with skilled engineering support and reliable production management.Email them at info@welongpost.com if you want to know more or have questions.

FAQ

1: What are the main advantages of die casting over other manufacturing methods?

Die casting offers high-speed production, complex shape capabilities, excellent dimensional accuracy, smooth surface finishes, and cost-effectiveness for large production runs.

2: How does material selection affect the die casting process?

Material selection impacts the casting's properties, including strength, durability, and corrosion resistance. It also affects the fluidity and solidification behavior during casting, influencing the final quality of the component.

3: What are the key factors in maintaining die casting quality?

Key factors include proper die design and maintenance, precise control of process parameters (temperature, pressure, speed), material selection, and rigorous quality control measures throughout the production process.

4: Can die casting be used for small production runs?

While die casting is most cost-effective for large production runs due to the initial tooling costs, advancements in technology and processes have made it increasingly viable for smaller production runs as well.
