Die Forging vs Open Forging: Which Is Better for Your Project?

When it comes to metal forming processes, forging stands out as one of the most versatile and reliable methods. However, within the realm of forging, two distinct techniques often come into consideration: die forging and open forging.

Both forging techniques use controlled deformation to improve the mechanical characteristics of metal components. Their production approaches, however, are very different. Die forging is a process of forming metal into a specified shape with the use of specially constructed dies. This process is suitable for repeat manufacturing and complex components . In contrast, open forging is performed between flat or simple dies and can be more adaptable to huge, heavy or specialised pieces.

Understanding the distinctions between these two techniques helps firms save excessive tooling expenses, decreases manufacturing risks and enables them to select a forging solution that fits their project requirements. This article highlights the working of die forging and open forging, discusses the pros and cons of each, and offers practical advice on selecting the best one for diverse industrial purposes.

Understanding the Manufacturing Process Behind Die Forging and Open Forging

Before evaluating performance, cost and applications, it is vital to understand how each forging method works and why their features differ.

How Die Forging Produces High-Precision Components

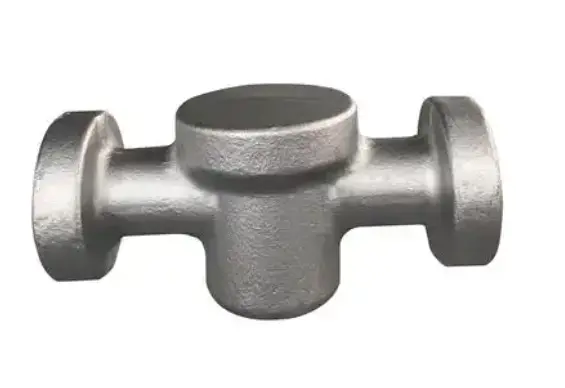

Die forging (sometimes called closed-die forging) involves the use of precision-made dies that contain the desired shape of the finished component. The heated metal billet is put between the upper and lower dies and the pressure of the forging hammer or press drives the material to flow into the die cavity.

The die shape constrains the material such that the end product can attain good dimensional consistency and repeatability. This makes die forging particularly ideal for parts with complex geometries, reduced machining allowance and uniform mechanical properties.

During the forging process, the grain structure of the metal is worked into the shape of the component, which increases strength, fatigue resistance and impact performance. These mechanical benefits are important for industries such as aerospace, automotive, power generation and heavy equipment manufacture.

But die forging requires a lot of preparation before manufacturing can begin. The design of each component requires specialized tooling, and the manufacture of forging dies can demand a significant amount of engineering effort and capital commitment. Hence, die forging is generally more inexpensive when manufacturing numbers warrant the tooling expense.

How Open Forging Provides Manufacturing Flexibility?

Open forging is one of the oldest metal-forming processes and is still commonly employed to produce huge, custom-forged parts. Instead of a closed cavity, the workpiece is crushed between flat dies or simple-shaped tools and it is adjusted during forging, manually or mechanically.

This technology also allows businesses to manufacture components of various sizes and forms without the need to manufacture expensive customized dies. This is because the metal is not limited to a set cavity; engineers have more control over the deformation process and may adapt the forging process to the behavior of the material and the needs of the design.

Usual open forged goods are the following:

• Big shafts

• Pressure vessel parts

• Rings.

• Blocks

• Parts of heavy machinery

• Parts for turbines

• Oil and gas equipment forgings

One of the great advantages of open forging is the capacity to work very huge parts that would be difficult or impossible to make with conventional die-forging equipment. It is also preferred for prototypes, repair parts and low-volume production where investment in tooling is not warranted.

The compromise is that open-die forged pieces often require more machining after forging due to the technique being less dimensionally precise than die forging.

What Are the Main Differences Between Die Forging and Open Forging?

Both processes increase the strength of metals by controlled deformation. However, the two processes are very different in the aspects of tools, accuracy, production efficiency and suitability of application.

Tooling Requirements and Production Setup

The main distinction between die forging and open forging is the use of the tooling.

Die forging needs specifically constructed dies made according to the final component geometry. Such dyes must endure repeated exposure to high temperatures and tremendous pressure. Advanced engineering analysis, testing, and precision machining in the die design may be needed for complex parts.

The die cost can be significant initially, but once the die is made, manufacturers can make large volumes of consistent parts with less variation.

Conversely, open forging utilizes simpler tooling like flat dies, anvils, and basic forging equipment. It can be set up faster because there is no complex cavity and it has fewer costs of preparing for production.

This makes open forging desirable for projects where the

• The component design can vary often.

• Only a little amount is needed

• The portion size is very large

• Please, I need custom dimensions

For example, open forging is generally the best choice for 50 huge industrial shafts, while die forging is usually the way to go for thousands of identical car components.

Dimensional Accuracy and Machining Requirements

Another major factor in comparing these forging processes is dimensional accuracy.

Die forging typically has tighter tolerances, since the material is formed in a controlled cavity. The process’s repeatability reduces dimensional variation among components and reduces the amount of machining required after forging.

This benefit is especially useful for applications where component alignment, weight reduction and accurate assembly are required.

Die forging is commonly used in aerospace and automotive industries since even tiny dimensional changes can affect

• Assembly precision

• Fatigue-resistant

• Operational reliability

• All product safety

Open forging generates parts with wider dimensional tolerances, but the mechanical qualities are outstanding. Additional machining is often necessary to meet final requirements.

However, this does not mean open forging yields lower-quality parts.   For big structural components, pressure equipment, and heavy industrial applications, the flexibility and material performance of open forged parts generally outweigh the necessity for extra machining.

Strength, Material Flow, and Mechanical Performance

Both die forging and open forging improve the mechanical characteristics of metals by refining grain structure and eliminating internal flaws.   However, the way the material moves during forging might influence the final performance of the component.

In die forging, the controlled die cavity directs the material flow according to the component geometry.   This allows producers to generate optimum grain flow patterns that follow the contour of the product.   As a result, die-forged components generally attain exceptional strength-to-weight ratios and better resistance to fatigue, impact, and repeated loading.

This benefit is particularly relevant for safety-critical components such as

• Aircraft structural components

• Automotive powertrain components

• High-Performance Engine Parts

• Parts for industrial equipment

For these applications the repeatability of the mechanical qualities over thousands of parts is generally a primary requirement.

Open forging, however, has certain definite advantages for making huge cross-sections or heavy parts. repeated compression treatment can effectively decrease internal voids, increase material density and boost overall toughness. Open forging is one of the best ways to make massive forgings that will be utilized in difficult situations; it can give the strength and durability required for a lengthy service life.

Such as:

• Big turbine shafts

• Generator rotors (6).

• Rings for pressure vessels

• Shafts for heavy equipment

• Parts for oil and gas drilling

The decision between the two methods relies on whether the project needs highly optimized component geometry or maximum flexibility in large-scale metal production.

Comparing the Advantages and Limitations of Each Forging Method

There is no better way, forging or open forging. Each technique has particular characteristics that make it suited for varied industrial situations.

Advantages of Die Forging

Die forging is often used when producers need repeatability, efficiency, and complex shapes.

The key advantages are the following:

1. High-Dimensional Consistency
Precision dies are used to create the metal, so each forged part is similar in dimension and features. This lowers production variation and increases assembly efficiency.

2. Lower Machining Requirements
Die forging can produce geometries that are closer to the final shape, reducing the amount of material waste and machining time. This can substantially reduce the total cost of manufacturing in high-volume production.

3. Increased Efficiency of Production
Die forging can create vast numbers of parts very rapidly once the tooling is done. Automation of the forging operation can increase production speed and consistency.

4. Well-suited to complex geometries
The die forging is more suitable for components requiring complex shapes, curved surfaces or features for weight reduction because complex designs may be duplicated in the die over and over again.

Limitations of Die Forging

However, die forging has numerous limits despite the advantages.

More Costly to Get Going
The cost of die design and die manufacture can be very high, particularly for complex parts. For modest manufacturing quantities this expenditure may not be economical.

Less Flexibility in Design Changes
Once dies are made, changing the design of the component may necessitate updating or replacing the tooling. This can lead to cost and schedule time escalation.

Size Limits
Large sections may be beyond the practical limits of die-forging equipment. Open forging may be a more suitable solution in these cases.

Advantages of Open Forging

Open forging is still an important industrial process due to its flexibility and capability of producing huge parts.

1. Larger Size Capability
One of the biggest advantages of the open forging process is the capability to make very large forgings. Heavy and large components can be dealt with independently of the shape constraint of a closed die cavity.

2. Lower tool costs
Open forging doesn’t need expensive specialized dies, making the initial costs of production significantly cheaper. This makes it great for prototyping, replacement parts and limited production runs.

3. Flexible Manufacturing Adjustments
The deformation conditions can be adapted to the material behavior in open forging by the operators. This flexibility is useful in the case of tough-to-shape alloys or custom designs.

4. Great for Heavy-Duty Applications
Open forging is widely used to make many key industrial components because it can generate strong and durable parts with great internal quality.

Limitations of Open Forging

While open forging offers flexibility, buyers should also consider several limitations.

Open forging is flexible, but there are some limitations that buyers should take into account.

Lower-Dimension Precision
Open forging usually results in higher dimensional variations than die forging. The part generally requires additional machining to meet final specifications.

More labor-intensive
More skilled operators and experienced engineers are needed for open forging. Automation could also be slower in production speed than die forging.

Not so good for high-volume production
Open forging may be less economical for thousands of identical parts requiring slower production rates and more machining.

How to Select Between Die Forging and Open Forging for Your Application?

When you are looking for the right forging method, technical specifications alone are not enough. “Engineers and procurement teams need to assess the total project needs before taking a decision.

Consider Component Size and Geometry

Usually the first concern is the physical characteristics of the component.

Choose die forging when:

• The component has complex geometry

• Tight dimensional accuracy is required

• Large production quantities are expected

• Repeatability is critical

Choose open forging when:

• The component is extremely large

• The design requires customization

• The shape is relatively simple

• Production quantities are limited

A large industrial shaft several meters long, for example, is generally better suited for open forging, while a smaller precision mechanical component may benefit from die forging.

Evaluate Material Type and Performance Requirements

Material selection also influences the forging method.

Common forging materials include:

• Carbon steel

• Alloy steel

• Stainless steel

• Titanium alloys

• Nickel-based alloys

Some alloys require careful deformation control because they have limited formability or increased resistance to shaping.

Open forging gives greater flexibility for processing tough materials since operators can alter the forging sequence according to material response.

Die forging is generally preferable when uniform mechanical qualities across several components are required.

Consider Production Quantity and Project Timeline

Production volume is one of the strongest decision considerations.

For:

• High-volume manufacturing → die forging is usually more efficient

• Low-volume manufacturing → open forging may provide more value

• Prototype development → open forging allows faster flexibility

• Long-term mass manufacturing → die forging often delivers better economics

However, purchasers should also consider tooling lead time.   While die forging can shorten production time after setup, it requires extra preparatory time to produce the dies.

What Should Buyers Consider When Choosing a Forging Supplier?

The appropriate forging procedure is merely a part of the successful project output. The supplier’s manufacturing capability, quality control system and technical experience significantly affect the final component performance.

Whether your project requires die forging or open forging, there are a number of important elements purchasers should consider before selecting a production partner.

Manufacturing Capability and Technical Support
A certified forging supplier must have the technical capacity to comprehend customer requirements and offer the most appropriate manufacturing technique.

Experienced manufacturers can help clients with:

• Guidance on material choices

• Optimization of the forging process

• Examining drawings and specifications

• Machining Allowance - Recommendations

• Planning of Heat Treatment

• Evaluation of production feasibility

For example, a supplier with experience in both die forging and open forging will be able to make more impartial advice, rather than simply pushing one manufacturing method over the other.

This is especially the case for unique components, where the most efficient solution may be a combination of forging experience with machining, heat treating, and inspection capabilities.

Quality Control and Inspection Requirements

Forged components for industrial use generally work under high loads, intense temperatures or in harsh conditions. So quality control should be before production.

A good forging maker should have established inspection methods for the complete manufacturing process.

The standard quality controls are:

Material Verification

Check raw materials by use of documentation such as the following:

• Test certification of material

• Chemical composition analysis

• Reports on mechanical properties

Material traceability is especially vital for critical applications in industries such as energy, oil & gas, and heavy equipment.

Forging Process Control

During forging production, producers should monitor:

• Heating temperature

• Sequence of deformation

• Reduction in forging ratio

• Cooling requirements

• Heat treatment conditions

Proper process control helps prevent faults such as the following:

• Breaking

• Grain structure improper

• Voids internal

• Non-uniform mechanical properties

Non-Destructive Testing and Final Inspection

Depending on the application requirements, forged components may require inspection methods such as the following:

• Ultrasonic testing (UT)

• Magnetic particle testing (MT)

• Inspection of dimensions

• Testing For Hardness

• Mechanical testing

For components used in safety essential applications, these inspections provide a further level of confidence that the forged parts satisfy the customer’s standards.

Why Working With an Experienced Forging Manufacturer Matters？

Knowing your supplier can mean the difference between a successful forging project and an expensive production headache.

An experienced manufacturer can assist consumers avoid problems such as

• Selecting an improper forging procedure

• Excessive machining requirements

• Unexpected material problems

• Incorrect heat treatment processes

• Delayed production schedules

A skilled forging partner should not only make parts but also provide engineering assistance throughout the process.

Shaanxi Welong Int'l Supply Chain Mgt Co., Ltd. has more than 20 years of expertise servicing industrial customers with bespoke forging solutions.   The company provides both die forging and open forging capabilities, enabling varied materials, component sizes, and application needs.

With experience in worldwide supply chains, material sourcing, manufacturing coordination, and quality documentation, Welong helps customers assess the most suitable forging strategy based on technical needs and project goals.

For enterprises creating new components or enhancing existing production processes, cooperating with an experienced forging supplier can improve productivity, decrease manufacturing risks, and ensure reliable final performance.

Conclusion

The choice of die or open forging is based on a detailed examination of the component needs, volume of production, material qualities, budget and long-term performance expectations.

For projects demanding great production efficiency, complicated geometries, precise dimensional accuracy, and constant component quality, die forging is generally the recommended process. The increased initial cost of tooling is justified when huge numbers of identical parts are being produced.

Open forging, in contrast, offers unmatched flexibility for huge parts, special designs, limited production volumes and applications requiring the highest material performance. It does need more machining and lengthier production cycles, but it is still a critical solution for heavy industrial components that cannot be easily manufactured by closed-die techniques.

The forging method with the lowest upfront cost isn’t always the greatest option for engineers and procurement teams. The correct decision takes into account the entire project lifetime, including efficiency in production, inspection needs, machining requirements, and component reliability.

Working with a skilled forging supplier means organizations can get professional help with material selection, process design and quality requirements. Properly planning the forging strategy helps assure the parts will function as necessary while remaining cost-effective and reliable from a production standpoint.

Shaanxi Welong Int'l Supply Chain Mgt. Co., Ltd. is here to provide you with professional advice on creating solutions that are tailored to your needs. Whether you are looking for precise die forging or flexible open forging options for tough industrial applications, we can help you find the right forging method for your application.To learn more about how Welong can support your project, contact them at info@welongpost.com.

FAQ

1.What is the main difference between die forging and open forging?

Die forging uses precision molds for shaping, while open forging relies on manual or simple die manipulation without closed cavities.

2. Which forging method is better for high-precision parts?

Die forging is better for high-precision parts due to its use of engineered dies and consistent results.

3. When should I choose open forging over die forging?

Open forging is ideal for custom, low-volume parts or large components where flexibility and manual control are needed.
