Die Design Guidelines for Precision Forging Projects

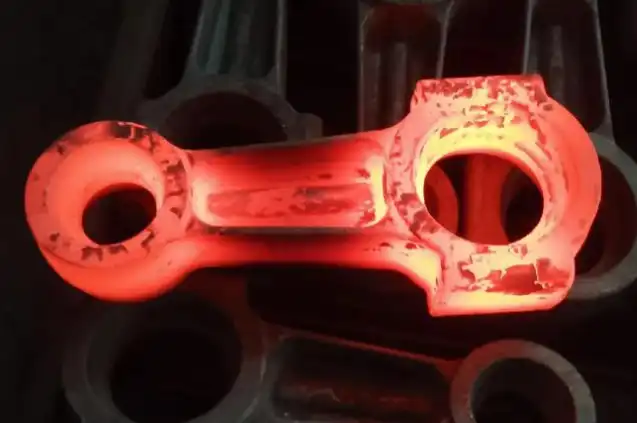

Precision forging can produce near-net-shape components with tight dimensional control, reduced machining requirements, and favorable grain flow. However, these advantages depend heavily on how the tooling is designed. A well-designed​​​​​​​ forging die must accommodate material flow, forging temperature, forming loads, thermal cycling, wear, part removal, and the dimensional changes that occur during production. For OEMs and engineering teams, die design should therefore be treated as part of the complete forging process rather than as an isolated tooling step. The workpiece material, forging method, press capacity, production volume, required tolerances, lubrication method, and expected tool life all influence the final die configuration. The following guidelines explain the main factors that should be reviewed when developing tooling for precision forging projects, from material selection and geometry to simulation, thermal control, validation, and production optimization.

What Should Be Evaluated Before Designing a Forging Die?

Start With the Part and Process Requirements

A die should be built for the real component and the manufacturing process, not just for its notional CAD shape. Prior to the tooling development, the engineering team should analyse the part drawing, material grade, needed mechanical qualities, dimensional tolerances, surface requirements, annual production volume and downstream machining operations.

How you forge is just as essential. Hot, warm and cold forging impose differing levels of temperature, pressure, impact, friction and thermal cycling on the tooling. A die configuration that is well suited for cold forming may not be suitable for a high-temperature hot forging application.

Other useful design inputs are:

• available press force and forging equipment;

• starting material condition and billet dimensions;

• forging temperature; die release and lubrication methods;

• production quantities; die life;

• critical dimensional characteristics;

• trimming strategy and flash requirements;

• and inspection and post-forging machining requirements.

Getting these suggestions early decreases the risk of designing tools that make acceptable prototype parts but then are inefficient or unreliable when running in serial production.

Select Die Materials According to the Application

Material selection should be based on the failure mechanisms dominating the process. Strength alone is not sufficient. Toughness, hot hardness, resistance to thermal fatigue, resistance to wear, machinability and compatibility with heat treatment are to be considered.

H13 and other comparable hot-work tool steels are often chosen for hot forging applications because of their good blend of hot strength, toughness and resistance to thermal cycling. H11 can also be chosen when a different balance of toughness and high-temperature performance is required for the application.

Cold work tool steels and carbide-based tooling are possible candidates for cold forging and high wear applications depending on the forming pressure, workpiece material, geometry and production volume. D2, for example, can give good wear resistance; however, the applicability of a material must be considered in terms of the impact and hardness requirements of the specific forging die operation.

Another key element of die performance is heat treatment. The hardness and microstructure should be regulated depending on the material choice and application. Instead of choosing a die material from a generic catalogue, the forging provider should be able to offer appropriate material and heat-treatment documentation.

How Does Die Geometry Affect Precision Forging?

Control Material Flow With Radii, Draft, and Cavities

The geometry of the die has a direct impact on the way in which the metal fills the hollow. Sharp corners cause local stress concentrations and impede material flow. Well-designed fillets provide a smoother flow and reduce localised loading.

Fillet radii should thus be defined according to the part geometry, workpiece material, deformation level and tooling loads. Increasing a radius is not always preferable, because a radius which is too large can impact material distribution or create undesirable geometry. The actual value is an engineering choice on a per-process basis.

Draft angles are also to be considered. A proper draft can assist in removing the forged component from the die, particularly when the process and equipment demand positive extraction. However, an unnecessary draft would raise machining allowances and alter the final component geometry.

The cavity should also be checked for thin sections, deep pockets, abrupt changes in cross-section and other regions where partial filling or excessive die loading could happen.

Design the Parting Line and Flash System Carefully

The parting line affects both the flow of material and the tooling production. A parting line at a poor location can cause higher flash volume, harder trimming, less desirable flow conditions and more difficult die machining.

Often the objective in precision forging parts is not to eliminate flash entirely but to regulate it. A well-built flashland and gutter can provide resistance to help fill the hole, but avoid undue waste of material.

The proper flash setup depends on the component's shape, the forging material, the press properties and the forming sequence. In high-volume production, minor variations in flash volume are important since they are reproduced thousands of times in thousands of parts.

Consider Die Stress and Tool Deflection

In the forging process the die is exposed to large mechanical loads. Stress concentration is especially severe at corners, thin parts of dies, deep voids, and changes of geometry.

A finite element analysis can be performed to check the stress distribution and the possibility of cracking or excessive deformation. The analysis can also help engineers estimate if the die structure will be sufficiently supported under the projected load of the forming operation.

The deflection is important for precision applications, because even a very slight change of the geometry of the cavity under load might affect the final dimensions. Thus, the design of such tight tolerance components must account for both the unloaded die geometry and its behaviour under actual forging conditions.

How Can Thermal Control Improve Die Performance?

Account for Temperature Distribution

One of the key differences between forging and ordinary room-temperature machining is the thermal conditions. In hot forging, the die is in touch with hot material and cools down between forging cycles. This causes temperature gradients and expansion and contraction cycles.

Insufficient control of temperature distribution can lead to thermal fatigue, causing surface cracking and premature die failure. Increased die temperature can also lead to increased wear and reduced dimensional stability.

Thermal analysis can be used to detect areas of heat accumulation or fast temperature change. The aim is not simply to hold the entire die at a single uniform temperature but to have a controlled and repeatable thermal state that is adequate for the forging process.

Integrate Cooling and Heating Strategies Into the Tooling Design

In the forging process the die is exposed to large mechanical loads. Stress concentration is especially severe at corners, thin parts of dies, deep voids, and changes of geometry.

A finite element analysis can be performed to check the stress distribution and the possibility of cracking or excessive deformation. The analysis can also help engineers estimate if the die structure will be sufficiently supported under the projected load of the forming operation.

The deflection is important for precision applications, because even a very slight change of the geometry of the cavity under load might affect the final dimensions. Thus, the design of such tight tolerance components must account for both the unloaded die geometry and its behaviour under actual forging conditions.

How Should a Forging Die Be Designed for Dimensional Accuracy?

Compensate for Thermal Expansion and Process Variation

One of the key differences between forging and ordinary room-temperature machining is the thermal conditions. In hot forging, the die is in touch with hot material and cools down between forging cycles. This causes temperature gradients and expansion and contraction cycles.

Insufficient control of temperature distribution can lead to thermal fatigue, causing surface cracking and premature die failure. Increased die temperature can also lead to increased wear and reduced dimensional stability.

Thermal analysis can be used to detect areas of heat accumulation or fast temperature change in the forging die. The aim is not simply to hold the entire die at a single uniform temperature but to have a controlled and repeatable thermal state that is adequate for the forging process.

Minimise Secondary Machining Where Practical

Depending on the application, cooling channels, preheating techniques, insulation and the controlled manufacturing cycle are all things to consider. Cooling must be carefully engineered to prevent inducing additional thermal strains as a consequence of aggressive or uneven cooling.

In the case of complex tools, additive manufacturing conformal cooling channels can offer design choices that are difficult to obtain with conventional drilling. However, additive manufacturing must be considered on the basis of the required thermal performance, material qualities, manufacturing cost and inspection requirements, not just because the technology is available.

Ultimately, the thermal management should be proven by manufacturing trials. The actual die temperatures, cycle times, lubricant behaviour and wear patterns can provide information which supplements modelling results.

How Can Die Design Help Prevent Forging Defects?

Reduce Laps, Folds, and Underfill

Precision forging does not mean that the nominal CAD dimensions may be copied straight into the die. The engineering team may need to consider thermal expansion, shrinkage of materials, elastic deformation, equipment behaviour and other process variables.

The quantity of compensation depends on the material, the forging temperature, the geometry of the component and the process parameters. Therefore, it is important to identify the critical dimensions before the tooling is manufactured so that the most crucial characteristics are given the appropriate engineering attention.

In addition, replacement die inserts might be advantageous in repetitive manufacturing where specific sections wear more or require periodic dimensional correction. This method minimises the expense to change the whole die when only a local portion is to be changed.

Consider Internal Integrity and Grain Flow

One of the key advantages of precision forging is the possibility of reduction of machining after forging. This gain is achieved by closely coordinating die geometry and the final machining process.

Engineers will have to choose which surfaces to forge close to final size and which surfaces to machine deliberately. Allowance that is too generous may increase the amount of material removed and the machining time required. Insufficient allowance may cause problems if forging variation or surface flaws impact the final dimension.

Thus a practical die design addresses the whole manufacturing route and not the forged shape in isolation.

What Role Do CAD and Simulation Play in Die Development?

Use CAD to Check Manufacturability Before Tool Production

The majority of the forging faults are caused by the wrong material flow, the wrong preform shape, the wrong amount of material or the wrong process conditions.

Laps and folds can occur when the material is flowing into a region in an unfavourable direction and folds back over itself. Underfill means the material available is not enough to entirely fill the desired cavity under the chosen process parameters.

The design may limit these hazards through managing the preform shape, cavity transitions, flash behaviour, and the order of filling different areas of the component.

Apply FEA to Evaluate Filling, Load, and Failure Risks

Finite element analysis can provide insight into several important process variables, including:

• material flow;

• cavity filling;

• forging force;

• temperature distribution;

• local strain;

• the stress; and

• potential defect locations.

The value of simulation depends heavily on the quality of its input data. Material behaviour, friction assumptions, thermal conditions, boundary conditions, and process parameters should therefore be selected carefully.

For critical components, simulation findings should be compared with trial-forging results and inspection data. This creates a feedback loop that can improve both the die and the process rather than relying entirely on theoretical predictions.

Which Die Materials, Coatings, and Manufacturing Technologies Are Emerging?

Use Surface Treatments When They Match the Failure Mode

Surface engineering can be useful when die failure is primarily driven by wear, friction, adhesion, or surface fatigue. Depending on the process, nitriding or other surface treatments may improve surface hardness and wear resistance.

Coatings such as PVD systems may also be considered for selected applications, particularly where friction and surface wear are important. Their suitability should be evaluated against the actual operating temperature, mechanical loading, substrate material, and production environment.

The objective should be to solve a defined tooling problem rather than adding a coating without identifying the dominant wear mechanism.

Consider Additive Manufacturing for Complex Cooling Features

Additive manufacturing has created new possibilities for tooling with internal geometries that are difficult to produce through conventional machining.

One of the most relevant applications is the production of conformal cooling channels. Instead of following a simple drilled path, these channels can potentially follow the geometry of the die cavity more closely, allowing engineers to develop more targeted thermal management strategies.

However, additive-manufactured tooling still requires careful consideration of material selection, heat treatment, dimensional accuracy, surface condition, internal quality, and inspection. Hybrid manufacturing—combining additive manufacturing with conventional machining—can be a practical approach when complex internal features are required but critical external surfaces still demand high machining accuracy.

Conclusion

Effective die design for precision forging requires more than reproducing a component's CAD model in tool steel. The forging die must be developed around the complete manufacturing process, including workpiece material, forming temperature, material flow, forging load, thermal cycling, dimensional requirements, expected production volume, and downstream machining.

Material selection, cavity geometry, fillet radii, parting-line location, flash design, stress distribution, and thermal management all influence tooling performance. CAD and FEA can reduce development risk by allowing engineers to evaluate filling, stress, temperature, and potential defects before production tooling is completed. Physical trials and production feedback then provide the evidence needed to refine the design.

For OEM and high-volume projects, the most effective approach is to treat die development as an iterative engineering process: define the requirements, simulate the process, manufacture the tooling, conduct controlled trials, inspect the forged components, and use production data to optimise tool life and dimensional stability.
