Common Defects in Closed Die Forging and How to Prevent Them

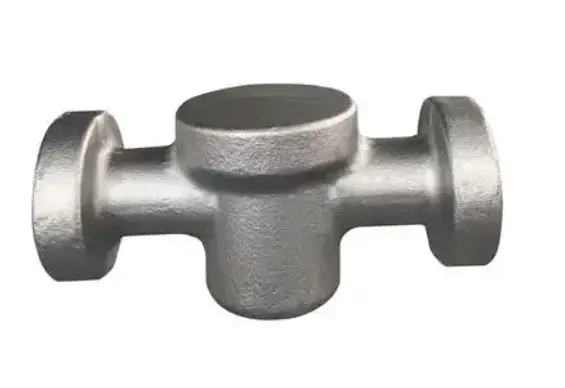

Closed die forging is widely used to manufacture high-strength metal components with complex geometries and controlled grain flow. In the procedure, compressive force is used to distort heated or otherwise prepared metal stock within a formed die chamber. Forging may require various processes such as preforming, blocking, finishing, trimming, heat treatment and machining, depending on the component and the path taken to produce it. As with any metal forming process, closed die forging can have faults if the volume of material, temperature, die geometry, lubrication, equipment settings or time of the operation are not regulated sufficiently. Some faults are obvious instantly, but others are only detectable by dimensional inspection, hardness testing, ultrasonic testing or metallurgical investigation. This is vital for producers and B2B consumers to understand since the quality of a forged component is more than simply the final look. A part may look good yet have dimensional variations, laps, cracks, poor microstructure, or other characteristics that make it unserviceable. The next sections outline the most prevalent flaws and causes and provide practical ways for prevention.

The Most Frequent Defects Found in Closed Die Forging

Underfill and Incomplete Cavity Filling

Underfill is when the workpiece is not completely filling the desired die impression. The forged article may have missing parts, incomplete ribs, rounded features, or dimensions outside of the specified tolerances.

There are a number of things that can cause underfill. One possibility is not enough billet volume, but it is not the only one. Poor preform geometry can cause material not to enter into particular parts of the cavity. Excessive heat loss can limit the flow of the material, and a bad sequencing of the operation can lead the material to arrive in the finishing cavity in an undesirable form.

Geometry is also significant. Narrow sections, deep cavities, steep transitions, and insufficient radii might limit the metal flow and increase the force needed for full filling.

Thus, the preventive measures should consist of:

• calculating billet volume accurately;

• controlling cut length and billet weight;

• optimizing the preform or blocker geometry;

• maintaining the specified forging temperature range;

• checking die radii, transitions, and cavity dimensions;

• selecting appropriate equipment capacity; and

• using forging simulation where component geometry is particularly complex.

Process simulation can be especially useful during die development because it allows engineers to identify areas where material may fail to reach the cavity before production tooling is finalized.

Laps and Folds

Laps and folds are discontinuities associated with the surface. During deformation, metal flows across itself instead of joining smoothly. They may occur at ribs, corners, changes in section thickness, or where the material flow becomes unstable.

We need to know about these problems since a lap can be a stress concentration. If it persists in the completed component, it may degrade the fatigue performance and/or compromise the reliability of the part.

Often the problem is caused by a poor performance design. If too much material is fed into a region at the wrong stage, the surplus metal may fold rather than flow continuously into the appropriate geometry. Other factors could be wrong die radii, wrong material flow routes, too much surface oxidation, or wrong process parameters.

“Control of the metal flow is the way to prevent it, not just increasing the forging force.” Engineers must consider the geometry of the preform, transition radii, parting line, cavity design, and sequence of forging. Simulation can be used to find the regions where material is most likely to fold before the physical trials begin.

Excessive or Uncontrolled Flash

Flash should not be treated as a forging defect by default. In conventional impression-die forging, the flash is typically purposely created at the separation line. It can aid in encouraging complete filling of the cavity by inhibiting the flow of the metal as the dies close. Trimming is generally performed after forging when the flash is removed.

The problem is too much flash. Inconsistent, uncontrolled flash.

Too much flash increases material use and cut requirements. It can also tell us that the volume of billet, die geometry, flash-land design, or process conditions need to be improved.

Manufacturers can control flash through optimization of:

• billet weight and dimensions;

• flash-land geometry;

• gutter dimensions;

• parting-line location;

• perform design;

• the alignment; and

• forging force and stroke conditions.

Control of billet weight is particularly critical in closed die forging high-volume production, when even a very modest volume change can become substantial over thousands of components.

For suitable parts, flashless or near-flashless methods may also be considered. However, these techniques require specialized equipment and process controls and should not be seen as a general replacement for traditional impression-die forging. Case studies from the Forging Industry Association have demonstrated that flashless closed-impression forging can be successfully applied to certain applications where the process and part design are adequate.

Surface Scale and Surface Discontinuities

Hot forging stock may form oxide scale at high temperatures. If the scale is not controlled or cleaned properly, it may get involved with surface flaws or impair the surface quality of the forged component.

Improper die geometry, poor lubrication, excessive die wear, improper preparation of the billet, or pre-existing faults in the starting material may all be sources of surface discontinuities.

Prevention has to start before the billet enters the die. Material should be inspected and prepared as required by the application. Heating should be managed to avoid unwanted oxidation and overheating. Depending on the alloy and the production process, descaling or other procedures of surface preparation may be appropriate.

Attention too should be paid to lubrication. A proper forging lubricant can minimize sticking and affect the heat transfer from the workpiece to the die. Good lubrication is consequently involved in both surface quality control and die life management.

Cracks and Material-Related Failures

One of the more serious faults that can arise in forging is cracking, which can affect the structural integrity of a component.

Cracking can result from severe deformation, improper forging temperature, poor condition of the material, stress concentration, die geometry, or significant damage to the surface. Cracking can occur during forging or subsequently during cooling, heat treatment, or later machining.

The core cause of each crack is not the same, and the repair action should start with root-cause analysis and not just with raising forging temperature or force.

When cracks are detected, manufacturers should review:

• the raw material certificate and incoming inspection records;

• the actual forging temperature history;

• deformation sequence and reduction;

• the condition and geometry;

• lubrication conditions;

• cooling and heat-treatment procedures; and

• inspection results from previous production batches.

For safety-critical components, the appropriate nondestructive testing method should be selected according to the material, geometry, specification, and customer requirements.

Dimensional Variation and Die Mismatch

A forged component can meet the general shape requirement while still failing dimensional inspection. Common issues include excessive thickness, incorrect length, uneven sections, and mismatch across the parting line.

Die mismatch occurs when the upper and lower die impressions are not properly aligned. This can create an offset at the parting line and may affect both appearance and dimensional accuracy.

Possible causes include:

• the installation errors;

• die-holder problems;

• equipment alignment;

• die wear;

• incorrect setup;

• thermal expansion; and

• inadequate process monitoring.

Dimensional control should therefore include regular inspection of critical features rather than relying only on final visual inspection. For repeat production, statistical process monitoring can also help identify gradual dimensional drift before a large batch is affected.

How Die Engineering Helps Prevent Forging Defects

Designing a Stable Metal-Flow Path

Good die design is one of the most effective ways to reduce defects. The objective is not simply to reproduce the final component geometry in the die. Engineers must also provide a practical path for the material to move through the different stages of deformation.

Sharp transitions can restrict flow and increase local stresses. Generous radii and appropriate fillets generally provide smoother material movement and reduce stress concentration. Forging design references also emphasize the importance of appropriate draft and radii for successful die filling and part removal.

The design review should consider:

• material grade;

• component geometry;

• section thickness;

• rib and boss configuration;

• parting line;

• draft;

• fillet and corner radii;

• perform shape;

• flash design; and

• required dimensional tolerances.

For complex parts, finite element analysis can help engineers examine material flow, potential underfill, folding tendencies, forging load, and other process risks before production.

Balancing Draft, Fillets, and Part Removal

Draft angles allow the forged component to be removed from the die without excessive interference. However, there is no single draft angle that applies to every closed die forging.

The appropriate value depends on factors such as material, cavity depth, component geometry, surface condition, and production method. For example, published forging design guidance gives different draft ranges for aluminum, copper alloys, steel, and stainless steel rather than applying one universal value.

Fillets are equally important in closed die forging. Very sharp internal corners can restrict material flow and create stress concentrations in both the forging and the die.

Therefore, draft and radius requirements should be established during engineering review instead of simply applying a fixed 3°–7° rule to every project.

Controlling Flash Through Tooling Design

Flashland and gutter design directly affect how material flows at the die parting line. Incorrect dimensions may lead to either excessive flash or incomplete filling.

Engineers should evaluate flash behavior together with billet volume, cavity geometry, forging load, and material characteristics. Changing one variable without considering the others may simply move the problem from one location to another.

For complex components, simulation and prototype trials can provide useful information before the final die design is released.

Temperature, Lubrication, and Process Control

Keeping the Workpiece Within the Specified Forging Range

Temperature is one of the most important variables in hot forging. The suitable forging range depends on the alloy and the intended deformation process, so it should be established from material-specific process requirements rather than from a generic temperature value. The Forging Industry Association maintains technical resources specifically addressing hot-forging temperatures and temperature measurement practices.

If the workpiece loses too much heat before deformation, material flow may become more difficult and filling may suffer. Excessive temperature, on the other hand, can cause undesirable material conditions, oxidation, or grain-growth-related problems depending on the alloy and process.

Consistent heating, therefore, requires control of:

• furnace or induction-heating settings;

• transfer time;

• billet temperature;

• temperature uniformity;

• heating cycle;

• the temperature; and

• production speed.

Induction heating can provide good temperature consistency when properly controlled. A Forging Industry Association case study, for example, describes tight temperature control of forging stock as part of a precision forging process.

Managing Die Temperature and Preheating

Die temperature affects heat transfer, material flow, die life, and process stability. A cold die can remove heat rapidly from the workpiece surface, while an excessively hot or poorly controlled die can contribute to accelerated wear or other tooling problems.

However, a fixed statement such as “all forging dies should be preheated to 200–300°C” is too broad. The appropriate preheating condition depends on die material, forging alloy, process type, tooling geometry, production cycle, and manufacturer specifications.

Uniform heating is particularly important. Research published through the Forging Industry Association identifies non-uniform die heating as a contributor to problems such as die cracking and heat checking.

For production, manufacturers should establish a repeatable die-heating procedure and monitor temperature rather than relying solely on elapsed heating time.

Using Lubrication as a Process Variable

Lubrication should be treated as part of process engineering, not simply as routine maintenance.

The correct lubricant and application method can help reduce sticking, influence friction, manage heat transfer, and support die life. Poor application can create inconsistent friction conditions from one cycle to another, which may alter material flow and surface quality.

Manufacturers should define:

• lubricant type;

• concentration where applicable;

• application method;

• spray timing;

• die-surface condition;

• cleaning requirements; and

• inspection frequency.

Lubrication requirements should be validated for the specific forging alloy and tooling system.

Conclusion

Common defects in closed die forging are rarely caused by a single parameter. Underfill, laps, excessive flash, cracks, surface discontinuities, dimensional variation, and die mismatch can result from interactions among material condition, billet volume, die geometry, temperature, lubrication, equipment setup, and process control.

The most effective prevention strategy is therefore to control the entire manufacturing route rather than correcting defects only during final inspection. Accurate billet preparation, well-designed preforms, suitable draft and fillet geometry, controlled flash, stable heating, proper die temperature, effective lubrication, and systematic inspection all contribute to consistent forging quality.

For manufacturers, process simulation and production data can help identify potential problems before they become recurring defects. For buyers, reviewing a supplier's quality system, inspection capability, material traceability, and engineering support can reduce the risk of receiving inconsistent parts.

A well-controlled forging process should ultimately deliver more than a visually acceptable component. It should provide repeatable dimensions, appropriate material properties, reliable surface quality, and traceable production results. That combination is what makes a forging supplier suitable for demanding OEM and industrial applications.
