Cold Forging Design Tips for Engineers and Product Developers

Cold forging is a crucial manufacturing process that offers numerous advantages for engineers and product developers. This metal forming technique involves shaping metal at room temperature, resulting in high-strength components with excellent dimensional accuracy and surface finish. As the demand for precision parts in various industries continues to grow, mastering cold forging design becomes increasingly important. This blog post aims to provide valuable tips and insights for engineers and product developers looking to optimize their cold forging processes. By understanding the key principles, material considerations, and design strategies, professionals can enhance product quality, reduce production costs, and improve overall efficiency. Whether you're working on automotive components, aerospace parts, or consumer goods, these cold forging design tips will help you navigate the complexities of this versatile manufacturing method and achieve superior results in your projects.

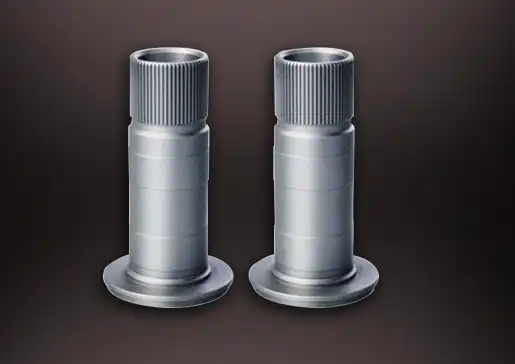

What are the key considerations for material selection in cold forging?

Material properties and their impact on cold forging

To get the best results from cold forging, choosing the correct material is essential. Cold forging is influenced by a number of material qualities, which engineers and product developers must take into account. Crucial to the material's malleability and resistance to breaking under stress is the metal's ductility. Cold forging works well with ductile materials like low-carbon steels and some aluminum alloys. How practical and effective the cold forging technique is depends heavily on the material's yield strength and work hardening properties. Materials that have lower yield strengths are typically easier to deal with when cold forging since they require less force to deform. It is critical to strike a balance between this and the component's final qualities, though. Both the material's formability and the final product's quality are affected by its grain structure. Fine-grained materials typically exhibit better formability and surface finish in cold forging operations.

Compatibility of different metals with cold forging processes

Not all metals are equally suitable for cold forging, and understanding the compatibility of different materials is essential for successful design and production. Steels, particularly low and medium-carbon grades, are widely used in cold forging due to their excellent formability and strength characteristics. Stainless steels can also be cold forged, though they may require higher forces and specialized tooling. The formability and strength-to-weight ratio of aluminum alloys make them an attractive cold forging material. For electrical components and plumbing fittings, copper and brass alloys are also frequently cold forged. Nevertheless, cold forging can be difficult with some materials owing to their high strength or low ductility; this is especially true with high-carbon steels and some exotic alloys. It may be required to use heat treatments or alternate forms in certain instances. When deciding which metal is best for cold forging, engineers must take into account both the material's characteristics and the component's unique needs.

Heat treatment considerations for cold-forged components

To maximize the performance of cold-forged parts, heat treatment is essential. While cold forging itself can improve material strength through work hardening, subsequent heat treatments can further enhance mechanical properties or relieve internal stresses. Annealing is often performed before cold forging to improve the material's ductility and reduce the required forming forces. After cold forging, stress relief treatments may be necessary to alleviate residual stresses that could lead to distortion or premature failure. For components requiring high strength or hardness, quenching and tempering processes can be applied to achieve the desired mechanical properties. Some alloys can be treated with precipitation hardening to make them even stronger and tougher. Because heat treatments have the ability to change the geometry of a cold-forged item, engineers need to think carefully about how these treatments will affect the part's dimensions and surface polish. When engineers take heat treatment into account during the design phase, they may make cold-forged components more reliable and efficient without sacrificing any of the benefits of cold forging.

How can part geometry be optimized for cold forging?

Design principles for cold-forged components

Optimizing part geometry for cold forging requires adherence to specific design principles that facilitate efficient material flow and minimize tooling wear. One fundamental principle is to design parts with gradual transitions and avoid sharp corners or sudden changes in cross-section. This method improves the quality of the item as a whole by promoting consistent material flow throughout the forging process, which in turn decreases the likelihood of flaws. In order to facilitate part ejection and decrease friction while forging, it is essential to apply draft angles on vertical surfaces. Because deep cavities can cause tool wear and possible flaws, engineers should also try to limit the depth-to-diameter ratio of forged features. Because they encourage balanced material flow and simplify tooling, symmetrical shapes are typically preferred in cold forging. In order to avoid flaws like folds or laps and guarantee correct filling when creating bosses or ribs, it is critical to keep optimum thickness ratios.

Strategies for reducing material waste in cold forging

Minimizing material waste is a critical aspect of efficient cold forging design. One effective strategy is to optimize the initial billet or blank size to closely match the final part volume, reducing excess material that needs to be trimmed or machined. By taking this route, we can cut down on the amount of energy needed for forging while simultaneously saving material. To maximize material use during forging, engineers can optimize preform shapes using CAD and simulation tools that assess material flow. Another technique is to incorporate features that can be formed directly during cold forging, eliminating the need for secondary machining operations. For example, designing parts with integral flanges or bosses that can be formed in a single forging step can significantly reduce material waste. In some cases, near-net-shape forging techniques can be employed to minimize the amount of final machining required, further reducing material waste and production time.

Balancing complexity and manufacturability in cold-forged designs

Achieving the right balance between part complexity and manufacturability is crucial in cold forging design. While cold forging can produce complex geometries, there are limitations to what can be practically achieved. Forging press capacity and tooling limitations are two factors that engineers need to think about. The production costs and lead times can be significantly increased if the designs are excessively complicated, as they may necessitate specialized tooling or multiple forging operations. Simplifying part geometries without sacrificing functionality should be the goal of designers looking to optimize manufacturability. In order to make the most of the cold forging process, it may be necessary to streamline features or rethink components. Finding solutions that match design needs with production feasibility requires close cooperation between manufacturing experts and design engineers to spot possible problems early on in the development process. Engineers may design cold-forged components that are both efficient and cost-effective to produce by keeping manufacturability in mind from the start.

What are the best practices for tool design in cold forging?

Material selection and heat treatment for cold forging tools

For cold forging tools to last and keep parts of consistent quality over production runs, it is essential to choose the right materials and heat treatments. Cold forging dies are typically made using tool steels that have a high hardness and wear resistance, such as M2, or premium grades as CPM REX M4. The forging process puts these materials through their paces because of their high stress tolerance and exceptional toughness. To maximize the tool steel's cold forging capabilities, it is crucial to heat treat it correctly. To accomplish the required hardness, toughness, and wear resistance, a precisely controlled heating and cooling procedure is usually employed. Nitriding and PVD coatings are two examples of surface treatments that can be used to increase the wear resistance of a tool and decrease friction when forging. When choosing tool materials and treatments, engineers should keep in mind the specific needs of their cold forging application, such as the material being forged and the planned production volume.

Die design considerations for improved tool life and part quality

Effective die design is critical for maximizing tool life and ensuring consistent part quality in cold forging operations. One key consideration is the use of proper radii and draft angles to facilitate material flow and reduce stress concentrations in the die. Generous radii at corners and transitions help prevent premature die failure and improve the surface finish of forged parts. Engineers should also carefully analyze the stress distribution within the die during forging and design appropriate support and reinforcement to prevent die failure. Incorporating stress-relief features, such as pockets or grooves in non-critical areas, can help distribute stresses more evenly throughout the die. Efficient material flow and the prevention of faults caused by trapped air or inadequate lubrication are ensured by proper venting and lubrication channels. In multi-stage forging processes, die designers must consider the progression of part geometry through each stage, optimizing preform shapes to achieve the final geometry while minimizing tool wear and material waste.

Strategies for reducing tool wear and extending die life

Minimizing tool wear and extending die life are critical factors in maintaining the efficiency and cost-effectiveness of cold forging operations. One effective strategy is to optimize the forging sequence to distribute wear more evenly across the tooling. This may involve using multiple dies or incorporating intermediate stress-relief operations to reduce the load on any single tool. Lubrication plays a crucial role in minimizing wear and friction caused by the workpiece's contact with the die surfaces. Before beginning the forging process, engineers must ensure that the lubricants they choose are suitable for use with the workpiece material. To keep tools at the ideal temperature and avoid thermal fatigue, efficient die cooling systems should be in place. Inserts designed for high-wear parts of the die can sometimes make it possible to repair worn components without having to replace the entire die, which can save money. To prevent catastrophic tool failure or part faults caused by wear, it is essential to inspect and maintain tools on a regular basis. Cold forging operations can be made more efficient and die life can be greatly extended by engineers who apply these tactics and constantly evaluate tool performance.

Conclusion

Cold forging is a powerful manufacturing process that offers numerous advantages for engineers and product developers. By implementing the design tips and best practices discussed in this blog, professionals can optimize their cold forging processes for improved efficiency, quality, and cost-effectiveness. Key considerations include careful material selection, part geometry optimization, and effective tool design. Balancing complexity with manufacturability and implementing strategies to reduce material waste and tool wear are crucial for successful cold forging operations. As technology continues to advance, engineers should stay informed about new developments in materials, tooling, and simulation techniques to further enhance their cold forging capabilities and maintain a competitive edge in the industry.

Welong – Your Trusted Partner for Customized Metal Parts

Shaanxi Welong Int'l Supply Chain Mgt Co.,Ltd. is a leading provider of customized metal parts for various industries. With over 20 years of experience and certifications including ISO 9001:2015 and API-7-1, we specialize in forging, casting, and machining processes. Our expertise covers a wide range of materials and manufacturing techniques, ensuring high-quality products tailored to our customers' needs. We offer comprehensive support throughout the production process, from design optimization to quality control and timely delivery. With a global customer base spanning more than 100 clients in countries such as the UK, Germany, USA, and Canada, we are committed to driving innovation in intelligent manufacturing and international supply chain management. For exceptional metal parts and unparalleled service, contact us at info@welongpost.com.

FAQ

Q: What is cold forging, and how does it differ from hot forging?

A: Cold forging is a metal forming process performed at room temperature, while hot forging occurs at elevated temperatures. Cold forging typically results in better dimensional accuracy and surface finish but may require higher forming forces.

Q: What are the main advantages of cold forging?

A: Cold forging offers benefits such as improved material strength, excellent dimensional accuracy, good surface finish, and reduced material waste compared to other manufacturing methods.

Q: Which materials are commonly used in cold forging?

A: Common materials for cold forging include low and medium-carbon steels, stainless steels, aluminum alloys, copper alloys, and brass.

Q: How can part geometry be optimized for cold forging?

A: Optimize part geometry by designing gradual transitions, using draft angles, minimizing depth-to-diameter ratios, and considering symmetrical designs when possible.

Q: What are some strategies for extending die life in cold forging?

A: Strategies include optimizing forging sequences, proper lubrication, implementing effective cooling systems, using inserts for high-wear areas, and regular tool maintenance and inspection.
