A Complete Guide to Lost Wax Investment Casting for Industrial Parts

Lost wax investment casting is a sophisticated manufacturing process that has revolutionized the production of industrial parts, offering unparalleled precision and versatility. This comprehensive guide delves into the intricacies of investment casting, exploring its applications in creating complex, high-quality components for various industries. From aerospace to automotive, medical to military, investment casting has proven invaluable in producing parts with intricate geometries, tight tolerances, and superior surface finishes. As we navigate through this guide, we'll uncover the materials and alloys commonly used, techniques for ensuring dimensional accuracy, and the crucial aspects of quality control and finishing. Whether you're a seasoned manufacturer or new to the field, this article aims to provide valuable insights into maximizing the potential of lost wax investment casting for your industrial part production needs.

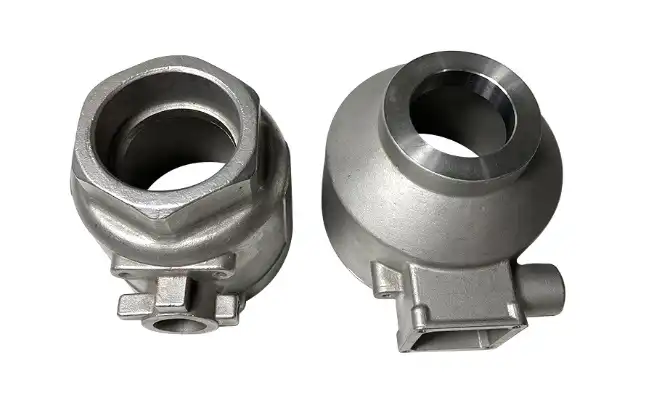

Materials and Alloys for Industrial Investment Casting

Ferrous Alloys in Investment Casting

Investment casting is a versatile process that accommodates a wide range of ferrous alloys, making it ideal for producing industrial parts with specific strength and durability requirements. Stainless steels, such as 304, 316, and 17-4PH, are frequently used in investment casting due to their excellent corrosion resistance and mechanical properties. These alloys are particularly suitable for parts exposed to harsh environments or requiring high strength-to-weight ratios. Carbon steels and tool steels are also commonly employed in investment casting, offering good machinability and wear resistance. The investment casting process allows for the production of complex geometries with these ferrous alloys, enabling manufacturers to create intricate parts with uniform properties throughout. Additionally, the fine grain structure achieved through investment casting enhances the overall performance of ferrous alloy parts, making them ideal for critical industrial applications.

Non-Ferrous Alloys in Investment Casting

Non-ferrous alloys play a crucial role in investment casting, offering unique properties that cater to specific industrial requirements. Aluminum alloys, such as A356 and A357, are frequently used in investment casting due to their lightweight nature and excellent casting characteristics. These alloys are particularly valuable in aerospace and automotive applications where weight reduction is paramount. Copper alloys, including bronze and brass, are also widely utilized in investment casting for their electrical conductivity and corrosion resistance. The investment casting process allows for the production of intricate copper alloy components with high dimensional accuracy, making it ideal for electrical and marine applications. Titanium alloys, known for their exceptional strength-to-weight ratio, are increasingly being used in investment casting for aerospace and medical implants. The process's ability to produce near-net-shape parts with titanium alloys significantly reduces material waste and machining costs, making it an economically viable option for high-value components.

Superalloys in Investment Casting

Superalloys represent a class of advanced materials that find extensive use in investment casting for high-performance industrial parts. These alloys, primarily based on nickel, cobalt, or nickel-iron systems, offer exceptional mechanical strength, surface stability, and corrosion resistance at elevated temperatures. In investment casting, superalloys such as Inconel 718, Hastelloy X, and MAR-M247 are commonly employed for producing turbine blades, aerospace components, and industrial gas turbine parts. The investment casting process is particularly well-suited for superalloys, as it allows for the creation of complex, thin-walled structures with internal cooling passages – a critical feature in many high-temperature applications. Moreover, the controlled solidification achievable in investment casting enables the production of single-crystal and directionally solidified superalloy components, further enhancing their high-temperature performance. This combination of material properties and process capabilities makes investment casting of superalloys indispensable in industries where extreme operating conditions are the norm.

How to Ensure Dimensional Accuracy in Investment Casting?

Wax Pattern Preparation and Assembly

The foundation of dimensional accuracy in investment casting lies in the meticulous preparation and assembly of wax patterns. This critical stage involves creating precise wax replicas of the desired parts using carefully designed and maintained injection molds. The investment casting process relies heavily on the quality of these wax patterns, as they directly influence the final product's dimensions. To ensure accuracy, manufacturers employ advanced wax injection techniques, controlling parameters such as wax temperature, injection pressure, and cooling rates. The use of computerized wax injection machines allows for consistent production of wax patterns with minimal variations. Additionally, the assembly of complex wax patterns often involves joining multiple pieces using specialized techniques like wax welding. This step requires skilled technicians who can maintain dimensional integrity while creating intricate assemblies. By focusing on precision in wax pattern preparation and assembly, investment casting can achieve tight tolerances and complex geometries that would be challenging or impossible with other manufacturing methods.

Shell Building and Dewaxing Techniques

The shell building phase in investment casting is crucial for maintaining dimensional accuracy throughout the process. This stage involves repeatedly dipping the wax pattern assembly into ceramic slurry and applying stucco layers to create a robust mold. The investment casting process demands careful control of slurry viscosity, drying times between coats, and stucco particle size to ensure uniform shell thickness and strength. Advanced techniques, such as robotic dipping systems, help maintain consistency in shell formation, reducing variations that could affect final part dimensions. The dewaxing process, where the wax is melted out of the ceramic shell, is equally critical. Controlled autoclave dewaxing or high-pressure steam dewaxing methods are employed to minimize shell cracking and maintain mold integrity. These techniques ensure that the internal cavities of the ceramic shell accurately replicate the original wax pattern dimensions. By optimizing shell building and dewaxing techniques, investment casting can produce parts with exceptional dimensional stability, even for complex geometries with thin walls or intricate internal features.

Metal Pouring and Solidification Control

The metal pouring and solidification stages are pivotal in achieving dimensional accuracy in investment casting. Precise control over pouring temperature, mold preheating, and cooling rates is essential to minimize shrinkage and distortion during solidification. Advanced investment casting facilities utilize computer-controlled pouring systems that ensure consistent metal flow rates and temperatures, crucial for maintaining dimensional stability. Vacuum-assisted pouring techniques are often employed to reduce turbulence and air entrapment, further enhancing the quality of cast parts. The solidification process in investment casting can be carefully managed through directional solidification techniques or the use of chill plates to control grain structure and minimize internal stresses. For particularly demanding applications, single crystal casting methods may be employed to eliminate grain boundaries altogether, resulting in superior mechanical properties and dimensional consistency. By meticulously controlling the metal pouring and solidification processes, investment casting can produce parts with exceptional dimensional accuracy, even for complex geometries with varying wall thicknesses or intricate internal passages.

Quality Control and Finishing Techniques for Investment Casting

Non-Destructive Testing Methods

Non-destructive testing (NDT) plays a crucial role in ensuring the quality and integrity of investment cast parts without compromising their usability. In the investment casting process, various NDT techniques are employed to detect internal defects, surface irregularities, and dimensional variations. X-ray radiography is widely used to inspect for internal voids, inclusions, or porosity that may affect the part's performance. Computed tomography (CT) scanning takes this a step further, providing detailed 3D imagery of the internal structure of complex cast components. Ultrasonic testing is another valuable NDT method in investment casting, particularly effective for detecting subsurface flaws and measuring wall thicknesses in hollow parts. Penetrant testing and magnetic particle inspection are commonly used for surface defect detection, especially in ferromagnetic materials. These NDT methods, when integrated into the investment casting quality control process, enable manufacturers to identify and address potential issues early, ensuring that only high-quality parts proceed to final finishing and delivery.

Surface Finishing and Heat Treatment

Surface finishing and heat treatment are critical steps in the investment casting process that significantly impact the final quality and performance of cast parts. After removal from the ceramic shell, investment cast components often undergo a series of finishing operations to achieve the desired surface characteristics and dimensional accuracy. Abrasive blasting techniques, such as sand or shot blasting, are commonly used to remove any residual ceramic material and provide a uniform surface finish. For parts requiring higher precision, machining operations may be performed to achieve tight tolerances or create specific features. Chemical milling or etching can be employed for delicate surface treatments or to create intricate surface patterns. Heat treatment is an essential aspect of the investment casting process, particularly for alloys that require specific microstructural characteristics. Solution annealing, aging, and stress relief treatments are often applied to enhance mechanical properties, reduce internal stresses, and ensure dimensional stability. These heat treatment processes are carefully controlled to maintain the dimensional accuracy achieved during the casting process while optimizing the material's performance characteristics.

Dimensional Inspection and Certification

Dimensional inspection and certification are the final quality assurance steps in the investment casting process, ensuring that the produced parts meet the specified requirements. Advanced measurement technologies play a crucial role in this phase, with coordinate measuring machines (CMMs) being widely used for precise dimensional verification. These machines can provide detailed 3D measurements of complex geometries, comparing them against CAD models to ensure compliance with design specifications. For intricate internal features, CT scanning may be employed to perform non-destructive dimensional analysis. Optical measurement systems, including laser scanners and structured light 3D scanners, offer rapid and accurate surface profiling, particularly useful for parts with complex contours. In the investment casting industry, statistical process control (SPC) methods are often implemented to monitor and continuously improve dimensional accuracy across production runs. The certification process involves thorough documentation of all quality control measures, including material certifications, process parameters, and inspection results. This comprehensive approach to dimensional inspection and certification in investment casting ensures that customers receive parts that consistently meet or exceed their specifications, providing confidence in the quality and reliability of the final product.

Conclusion

Lost wax investment casting stands as a pinnacle of precision manufacturing for industrial parts, offering unparalleled capabilities in producing complex, high-quality components. This comprehensive guide has explored the essential aspects of the process, from material selection to quality control, highlighting the versatility and advantages of investment casting. As industries continue to demand higher precision, more intricate designs, and superior performance from their components, investment casting remains at the forefront of manufacturing technology. Its ability to work with a wide range of alloys, ensure dimensional accuracy, and deliver exceptional surface finishes makes it an indispensable process for producing critical parts across various sectors. By leveraging the techniques and considerations outlined in this guide, manufacturers can harness the full potential of investment casting to meet the evolving needs of modern industry.
