10 Industries That Rely on Closed Die Forging Technology

Closed Die Forging is extensively utilised to produce high-strength, dimensionally accurate metal components for severe industrial applications. The method employs shaped dies which provide a controlled compressive force to a heated metal billet or preform such that the material flows into the die cavity. Through proper material selection, die design, temperature management and post-forging treatment, manufacturers may produce components with desirable grain flow, strength and reliability of repeatability.

Unlike machining, where material is cut away from a bigger workpiece, closed die forging shapes the part by controlled plastic deformation. This makes it particularly appropriate for the high-volume production of items where mechanical performance uniformity and material utilisation are crucial. Depending on the equipment and application requirements, this method can be utilised with a variety of steels, stainless steels, aluminium alloys, titanium alloys and other engineering materials.

Shaanxi Welong Int’l Supply Chain Mgt Co., Ltd. offers manufacturing solutions for forging, casting, machining and other metal-component production. The company has experience serving customers in Europe, North America and Asia, supporting projects from product planning and manufacturing through to delivery. Knowing the applications of closed die forging, engineers and buyers may assess whether the method is appropriate for a certain part.

What Makes Closed Die Forging Suitable for Industrial Components?

Closed-die forging is very useful when a part needs to be strong, repeatable, and reasonably complex in shape. Controlled deformation in forging can influence the interior grain structure and can help develop desirable mechanical properties, if appropriately planned.

The shaped dies also allow for reproducible geometry from one production cycle to the next. This repeatability can reduce variation and the quantity of subsequent machining necessary for big production runs. The last component may still need trimming, heat treatment, machining, surface treatment, or inspection, but the forging process can determine most of the basic shape before these processes are performed.

Then there is the material utilization. Compared to making a component from a huge solid block, closed-die forging can lower the machining allowance as the material is produced rather than significantly removed. The actual material savings depend on the geometry of the component, the design of the billet, the forging ratio, and the machining needs.

These features make the technique desirable across businesses that require load-bearing, spinning, structural, or safety-critical metal components.

Which Industries Depend on Closed Die Forging?

1. Aerospace and Aviation

Aerospace producers need parts that can survive harsh mechanical and environmental conditions while controlling weight. Closed-die forging is used to make specified structural and mechanical parts. Controlled metal deformation can create favorable strength and grain-flow properties.

Typical applications include airplane fittings, brackets, landing gear components, engine-related parts, and other high-performance components depending on the alloy and production requirements.

Aerospace projects also stress traceability, dimensional control, material certification, and inspection. Therefore, forging providers may have to support precise quality documentation and manufacturing requirements specific to the customer.

2. Automotive Manufacturing

The automotive sector is one of the largest consumers of forged metal components. High-volume vehicle production necessitates parts that can be produced frequently and meet dimensions and mechanical criteria.

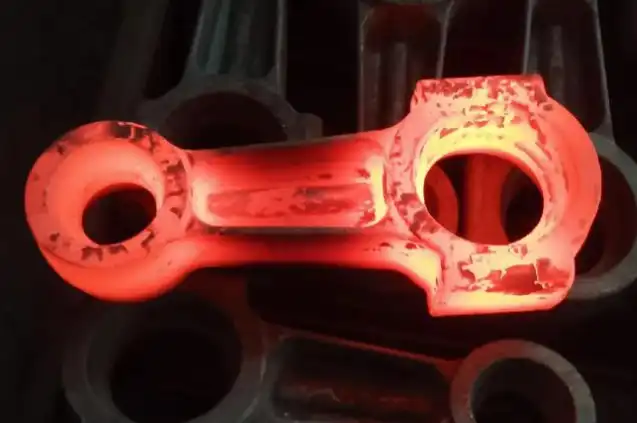

Closed die forging can be used to produce items including connecting rods, steering components, suspension components, gears, shafts, yokes, and other drivetrain or chassis components.

For car manufacturers in particular, the volume of production is significant. Once the forging dies and process parameters are fixed, repeating manufacturing can yield consistent component shape for huge batch sizes. This makes the method acceptable for applications where dozens or millions of comparable components are required.

3. Oil and Gas Industry

Oil and gas equipment is used in harsh settings, where components may be exposed to high mechanical loads, pressure, temperature change, and continuous service.

Forged parts may be utilized in some valves, fittings, connections, drilling-related equipment, and other mechanical assemblies. The actual forging material and manufacturing route is determined by the operational environment and relevant parameters.

For these applications, purchasers should go beyond the forging process. Consideration should be given to material grade, heat treatment, dimensional requirements, inspection methods, and applicable industry norms when selecting a supplier.

4. Power Generation

The equipment used to generate power has several components that must be able to operate reliably for long periods of time. Forgings are used in gas turbines, steam turbines, generators, pumps, and auxiliary systems where mechanical strength and dimensional consistency are crucial.

Forged parts may be shafts, couplings, brackets, fasteners, and other mechanical parts depending on equipment design. The choice of alloy is especially crucial since the equipment used to generate power may be subject to high temperatures or repeated mechanical loads.

Closed-die forging can supply these parts with a regulated starting geometry, which can then be heat treated and precision machined to the desired final qualities and dimensions.

5. Construction and Heavy Equipment

Construction gear includes excavators, loaders, cranes, and drilling equipment. These machines are built with components that can resist repeated loads and difficult working circumstances.

Pins, shafts, linkage components, couplings, gears, and other mechanical items can be forged. The manufacturing procedure is chosen depending on the desired load capacity, geometry, material, and production quantity.

This is especially true with heavy-equipment manufacturers, because replaceable parts must be the same size throughout the production run. This requirement can be supported by closed-die forging if the die design and process controls are appropriately developed.

6. Railway Transportation

Railroad systems use a vast variety of mechanical components for rolling stock, braking systems, suspension assemblies, couplings, and other equipment.

One is that it should be of high strength and resistance to repeated loads. Forging can be considered for parts for which controlled deformation and material properties are critical in component design.

Railway manufacturers also require consistent dimensional consistency as individual components need to work together as larger assemblies. Thus, process control, inspection, and traceability are critical factors when purchasing forged railway components.

7. Marine and Shipbuilding

Marine equipment is exposed to very hard service conditions, such as permanent mechanical stress and exposure to moisture and salt water, which cause the metal parts to deteriorate.

Closed die forging can be utilized for specified maritime hardware, shafts, fittings, mechanical connectors, and propulsion-related components. The material choice is very significant in applications where corrosion resistance or unique mechanical qualities are required.

It is important to consider forging as part of the full manufacturing route for maritime applications. All of these, material certification, heat treatment, machining, surface protection, and final inspection, might affect the appropriateness of the produced component.

8. Industrial Machinery

Industrial machinery is a large category of equipment. It includes compressors, pumps, machine tools, material-handling systems, production machinery, and specialized processing equipment.

Many of these machines have shafts, gears, levers, couplings, brackets, and other components that might benefit from repeatable manufacture and controlled material qualities.

Closed die forging can be rather attractive in medium- to high-volume production as the die forms the basic shape of the part. After forging, manufacturers can do trimming, heat treatment, machining, and inspection as per the final drawing requirements.

9. Medical Equipment Manufacturing

Medical equipment makers utilize many different types of precision metal components in instruments, mechanical assembly, support systems, and specialized equipment.

While not all medical parts are suited for closed-die forging, the method is an option when the requisite material, geometry, production volume, and mechanical properties are compatible with forging.

For medical manufacturing projects, requirements such as material cleanliness, dimensional control, surface smoothness, traceability, and inspection can be very significant. So suppliers need to look at the full specification of the customer and not just look at the forging process in isolation.

10. Agricultural Machinery

Agricultural equipment is subject to changing loads and generally operates in harsh outside conditions. Tractors, harvesters, tillers, irrigation equipment, and other machinery contain many mechanical parts that must be rugged and dimensionally consistent.

Forged parts can be utilized for the production of shafts, linkage parts, couplings, gears, and other load-bearing parts. Production economics. Producers of agricultural machinery are especially interested in production economics because parts may have to be produced in large numbers.

Closed die forging is a very efficient manufacturing approach, providing the part geometry is adequate and the production volume offers a good return on the tooling investment.

Why Do These Industries Choose Closed Die Forging?

Consistent Component Geometry

A well-built die produces a reproducible cavity for each forging cycle. This enables the makers to maintain the measurements from run to run.

The feasible degree of accuracy depends on variables such as die design, material behavior, forging equipment, temperature control, and subsequent machining. It should not be assumed, therefore, that all parts made by closed-die forging are manufactured to final dimensions without secondary procedures.

Favorable Material Characteristics

The controlled plastic deformation on grain flow and microstructure has been investigated. This, along with the suitable heat treatment, enables the manufacturer to obtain the mechanical qualities called for by a component specification.

The ultimate performance of a forged component depends on the entire production process, not just on the forging itself. Material grade, forging temperature, reduction, cooling conditions, and heat treatment must be taken into account.

Efficient High-Volume Production

Tooling is a major part of the economics of closed-die forging. First, forging dies must be made. This costs money; thus, the method is more attractive when you have a large number of parts to make, and you can amortize the cost of the dies across many pieces.

Once production is established, however, regular forging cycles can facilitate efficient manufacture of huge numbers of identical or comparable components.

How Can Closed Die Forging Support More Efficient Material Use?

Closed die forging can help reduce unnecessary material removal because the forging operation establishes a shape that is closer to the final component than a simple raw block in many applications.

This does not mean that there is no material waste. Flash, trimming operations, billet preparation, machining allowances, and process development can all contribute to material consumption. Nevertheless, an optimized preform and die design can improve material utilization.

The sustainability profile of a forged component should therefore be evaluated across the complete production process, including raw-material sourcing, heating, forging, trimming, heat treatment, machining, transportation, and component service life.

Long service life can also contribute to resource efficiency when a component remains functional for an extended period and does not require frequent replacement. At the end of its service life, many metal components can enter established recycling streams, although recyclability depends on the material and applicable recovery process.

What Should Buyers Check When Selecting a Closed Die Forging Supplier?

Material and Part Specifications

Buyers should provide clear information about the required material grade, component dimensions, estimated weight, annual quantity, operating conditions, and applicable specifications.

A forging supplier should be able to review the drawing and determine whether the geometry is suitable for the selected forging route.

Die and Tooling Capability

Tooling quality directly affects forging consistency. Buyers should ask how the supplier develops die designs, manages tooling wear, and handles die modifications during production.

For complex components, simulation and process engineering can also help identify material-flow issues before production begins.

Heat Treatment and Machining

Forging is often only one stage of the manufacturing process. Depending on the application, the finished component may require normalizing, quenching and tempering, solution treatment, aging, machining, grinding, or surface treatment.

A supplier capable of coordinating multiple manufacturing stages can simplify project management and reduce the number of external interfaces for the buyer.

Inspection and Documentation

Quality documentation is particularly important for industrial components. Depending on the project, buyers may require dimensional inspection reports, material certificates, heat-treatment records, hardness testing, non-destructive testing, chemical analysis, or other inspection documentation.

Suppliers should clearly define which inspection methods are available and which requirements can be included in the production plan.

What Are the Future Trends in Closed Die Forging?

Digital Process Simulation

Simulation software is increasingly used to analyze metal flow, filling behavior, temperature distribution, and potential forming problems before physical production.

This approach can help engineers refine billet dimensions and die geometry while reducing unnecessary trial-and-error during process development.

Smart Manufacturing

Sensors and production-data systems are becoming more common in modern forging operations. Temperature, pressure, equipment status, and other process information can be monitored to improve consistency and support production analysis.

Data-based maintenance planning may also help manufacturers identify equipment problems before they interrupt scheduled production.

New Alloys and Process Development

The development of advanced steels, aluminum alloys, titanium alloys, nickel-based materials, and other engineering materials continues to create new opportunities for forging.

At the same time, hybrid manufacturing approaches may combine forging with machining, additive manufacturing, or other processes. Instead of replacing forging, these technologies can complement it by allowing manufacturers to use each process where it provides the greatest value.

Conclusion

Closed die forging remains an important manufacturing technology for industries that require strong, consistent, and precisely engineered metal components. Aerospace, automotive, oil and gas, power generation, construction equipment, railway, marine, industrial machinery, medical equipment, and agricultural machinery can all use forged components in applications where the material and geometry are appropriate.

Its value comes from more than simply forming metal between two dies. Properly engineered closed-die forging combines material selection, die design, controlled deformation, heat treatment, machining, and inspection to produce components that meet specific engineering requirements.

For manufacturers and procurement teams, the best results come from evaluating the complete production route rather than focusing on forging alone. Material grade, component geometry, production volume, tooling requirements, tolerances, inspection standards, and downstream machining should all be considered before selecting a supplier.

As digital simulation, process monitoring, advanced materials, and integrated manufacturing continue to develop, closed die forging is likely to remain an important production method for demanding industrial applications. Shaanxi Welong Int'l Supply Chain Mgt. Co., Ltd. supports customers with forging, casting, machining, and related manufacturing services, providing an integrated approach from product planning through production and delivery. With more than 20 years of industry experience and quality systems including ISO 9001:2015 and API-7-1, the company serves customers across Europe, North America, and Asia.For inquiries, please contact us at info@welongpost.com and experience the Welong advantage in metal part manufacturing and supply chain management.

FAQ

1: What is closed die forging?

Closed die forging is a metal forming process where heated metal is shaped between two dies containing a pre-cut profile of the desired part, resulting in near-net shape components with superior mechanical properties.

2: Which industries benefit most from closed die forging?

Industries such as aerospace, automotive, energy, defense, and heavy machinery benefit greatly from closed die forging due to its ability to produce high-strength, complex-shaped components.

3: How does closed die forging contribute to sustainability?

Closed die forging contributes to sustainability by reducing material waste, improving energy efficiency in production, and creating long-lasting, recyclable components.

4: What are the main advantages of closed die forging?

The main advantages include enhanced mechanical properties, precision and consistency in part production, and versatility in material selection.

References

1. Smith, J. (2020). Advancements in Closed Die Forging Technology. Journal of Manufacturing Processes, 45, 112-125.

2. Johnson, A., & Brown, B. (2019). The Impact of Closed Die Forging on Aerospace Components. Aerospace Engineering Review, 32(4), 78-92.

3. Williams, R. (2021). Sustainability in Metal Forming: A Focus on Closed Die Forging. Green Manufacturing Quarterly, 18(2), 203-218.

4. Lee, S., & Park, K. (2018). Closed Die Forging in the Automotive Industry: Trends and Innovations. International Journal of Automotive Technology, 19(3), 456-470.

5. Thompson, E. (2022). Industry 4.0 and Closed Die Forging: Integration and Optimization. Smart Manufacturing Systems, 7(1), 34-49.

6. Garcia, M., & Lopez, N. (2020). Materials Science in Closed Die Forging: Challenges and Opportunities. Advanced Materials Processing, 28(5), 612-627.
